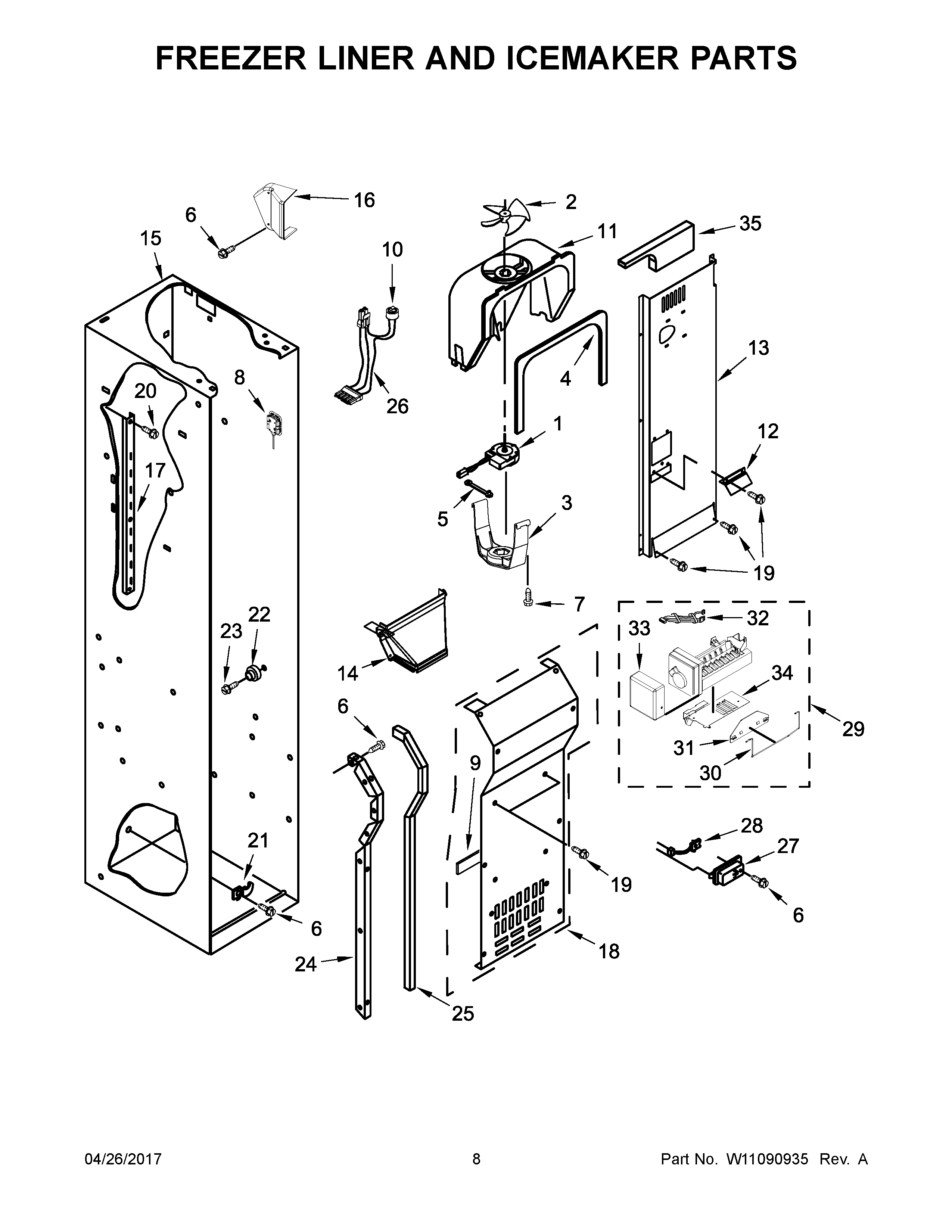

JS42NXFXDE01 05 – FREEZER LINER AND ICEMAKER PARTS

Products

Position	Product
1	MAY W10436861
2	Blade, Fan (Evaporator)
3	MAY W10260421
4	Gasket, Cover
5	MAY W10321090
6	SCREW
7	SCREW
8	ASSEMBLY, LED MODULE
9	MAY W10581988
10	Defrost, Bi-Metal
11	MAY W10170114
12	DEFLECTOR, AIR
13	DUCT, AIR
14	MAY W10170112
15	LINER (NOT A SERVICEABLE PART)
16	COVER, AIR OUTLET
17	LADDER, SHELF
18	ASSEMBLY, EVAPORATOR COVER
19	SCREW (BLACK)
20	MAY W10832438
21	MAY 1112260
22	ASSEMBLY, SHELF STUD (INCLUDES SCREW)
23	SCREW (BLACK)
24A	EVAPORATOR, COVER RAIL (RH)
24	EVAPORATOR, COVER RAIL (LH)
25	GASKET, EVAPORATOR COVER
26	MAY W10482187
27	COVER, THERMISTOR
28	MAY 2188820
29	COMPLETE ICEMAKER ASSEMBLY
30	ARM, SHUT OFF
31	EXTENSION, SHUT OFF ARM
32	WIRE ASSEMBLY, ICE MAKER
33	COVER, ICEMAKER
34	MAY 2221231
35	MAY 2309283
