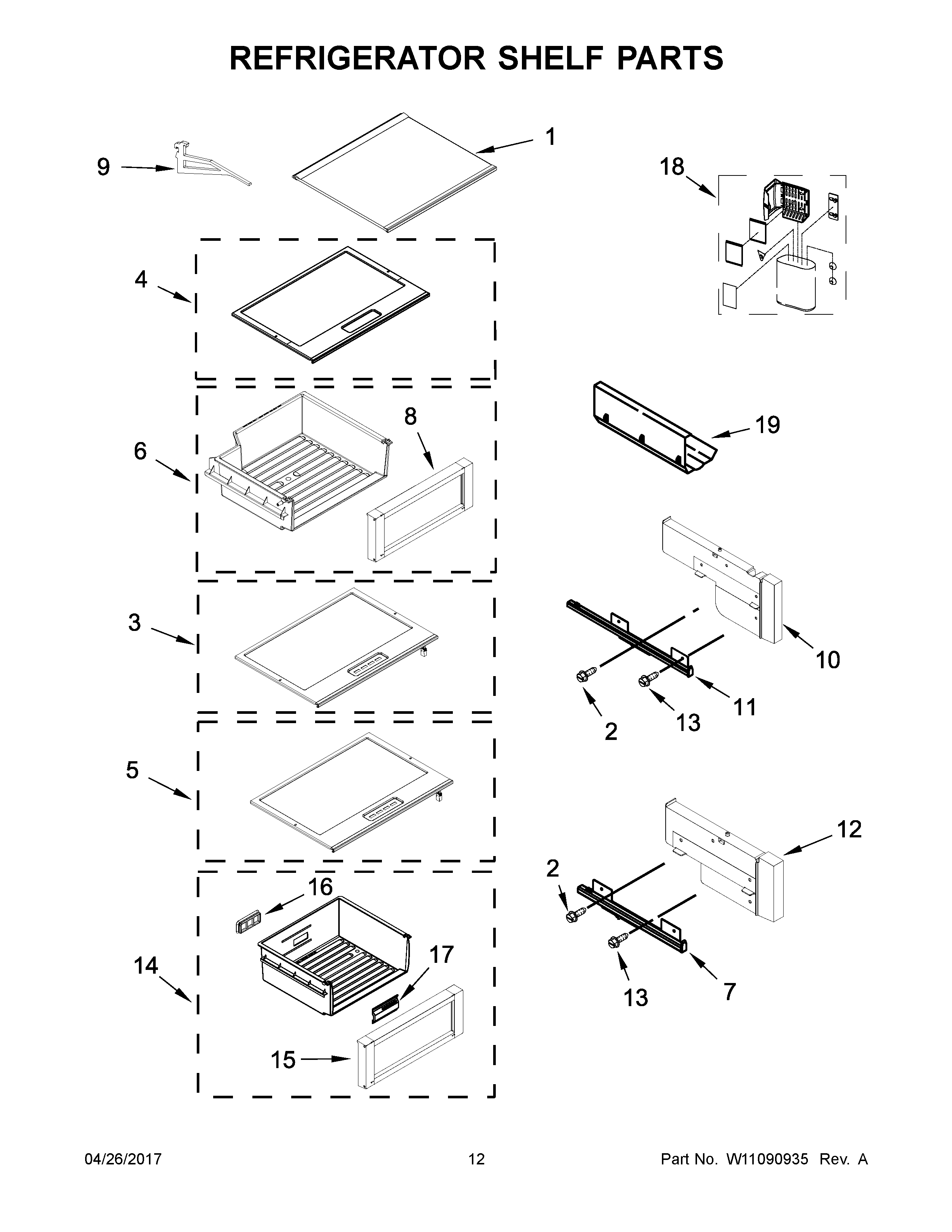

JS42NXFXDE01 07 – REFRIGERATOR SHELF PARTS

JS42NXFXDE01 07 – REFRIGERATOR SHELF PARTS

Written by

in

JS42NXFXDE01 07 – REFRIGERATOR SHELF PARTS

Products

PositionProduct
1SHELF ASSY
2MAY W10215666
3ASSEMBLY, CRISPER COVER
4ASSEMBLY, MEAT PAN COVER
5ASSEMBLY, CRISPER COVER
6MAY W10844020
7ASLIDE, MEAT PAN (RIGHT HAND)
7MAY W10844011
8MAY W10843805
9SIDEARM, SHELF
10SPACER, CRISPER
11ASLIDE, CRISPER (RIGHT HAND)
11MAY W10844010
12SPACER, MEAT
13Screw
14MAY W10844018
15MAY W10843807
16DUCT, PAN
17DEFLECTOR, AIR
18ASSEMBLY, PRODUCE PRESERVER
19RACK, WINE
