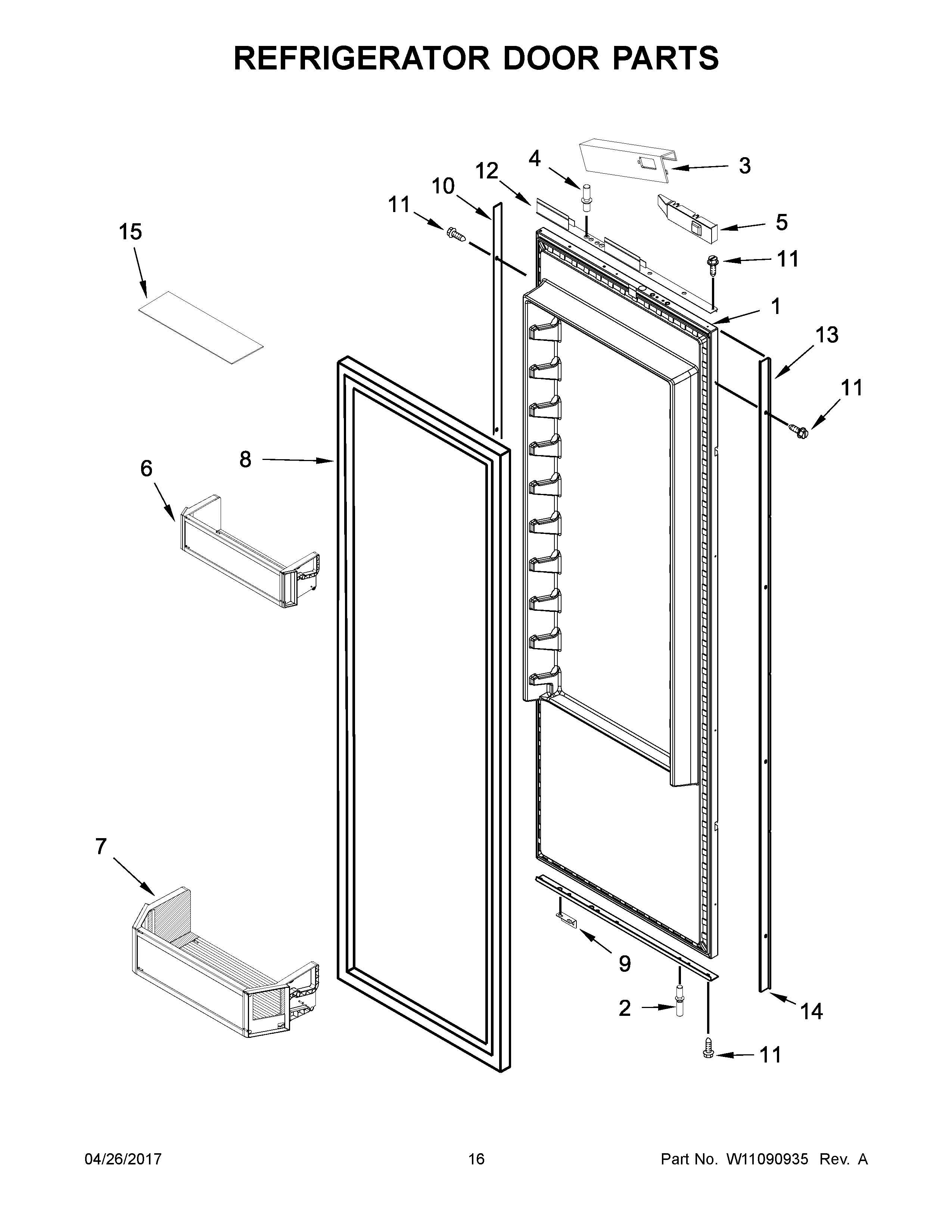

JS42NXFXDE01 09 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	DOOR, REFRIGERATOR
2	Pin-Door, Bottom
3	COVER, DOOR (TOP) (CHARCOAL)
4	Pin-Door, Top
5	INSERT, DOOR ARM TOP (GREY)
6	BIN, SHALLOW DOOR
7	BIN, GALLON DOOR
8	GASKET, DOOR (GREY)
9	BRACKET, PANEL MOUNTING (GREY)
10	TRIM, DOOR (HINGE SIDE) (CHARCOAL)
11	Screw, 8-15 x .500 (Black)
12	TRIM, DOOR (TOP) (CHARCOAL)
13	TRIM, DOOR (HANDLE SIDE) (CHARCOAL)
14	TRIM, DOOR (BOTTOM) (CHARCOAL)
15	MAT, DOOR BIN (SHALLOW)
15A	MAT, DOOR BIN (GALLON)
