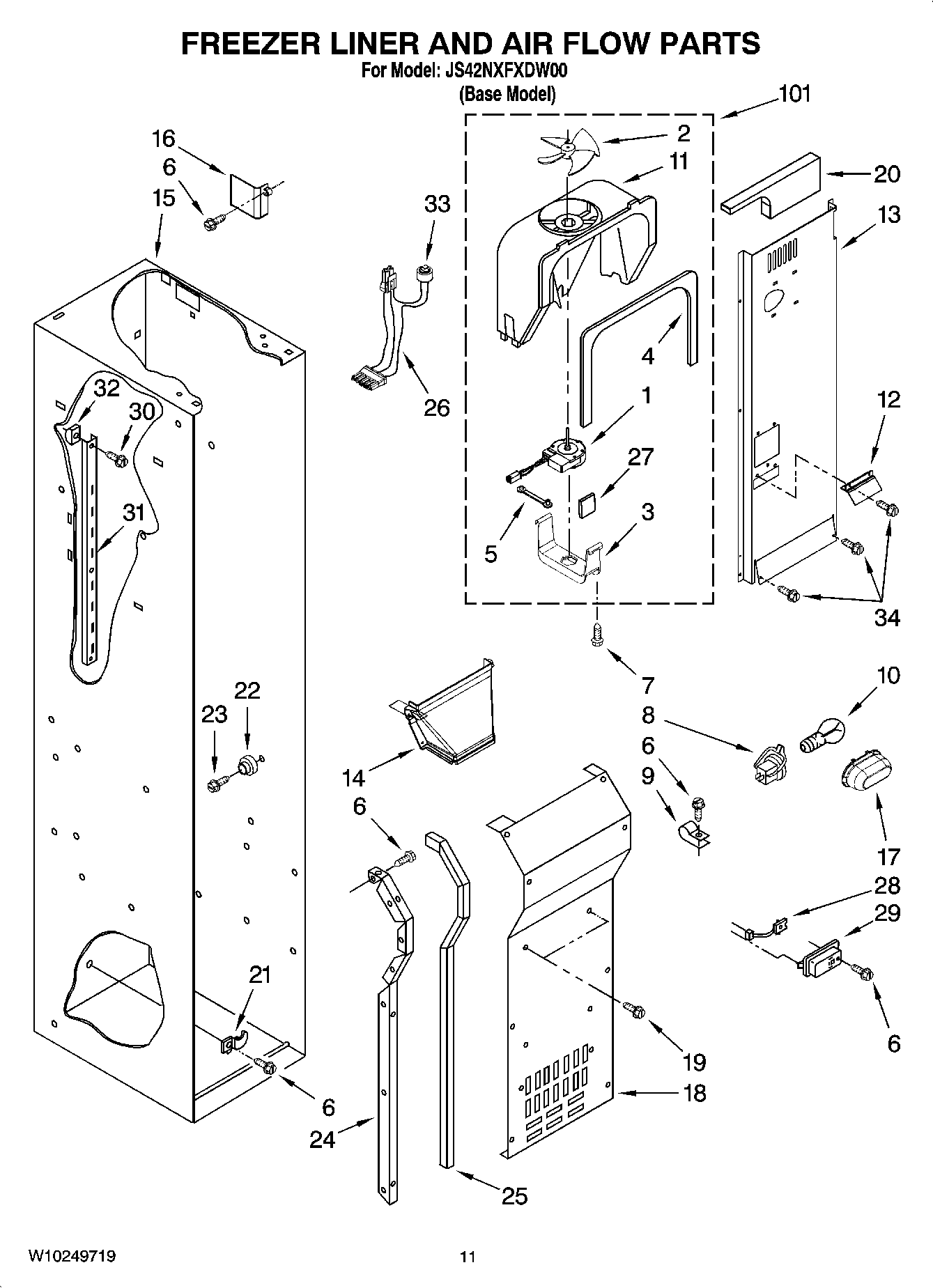

JS42NXFXDW00 08 – FREEZER LINER AND AIR FLOW PARTS

Products

PositionProduct
1MAY 2259385
2Blade, Fan (Evaporator)
3MAY 2223733
4Gasket, Cover
5Grommet
7MAY 488500
8MAY 2223857
9Clamp, Nylon
10Bulb, Light
11MAY W10170114
13MAY W10170084
14MAY W10170112
16MAY W10170101
17Light Shield
18MAY W10140154
19Screw
20Deflector, Air Duct
21MAY 1112260
22MAY 2196483
23MAY 8281158
24EVAPORATOR, COVER RAIL (RH)
24EVAPORATOR, COVER RAIL (LH)
25MAY W10183531
26MAY W10139189
27MAY 2220241
28MAY 2188820
29MAY 2317105
30SCREW
31MAY W10175171
32Support, Screw
33Defrost, Bi-Metal
34SCREW
101MAY W10203262
