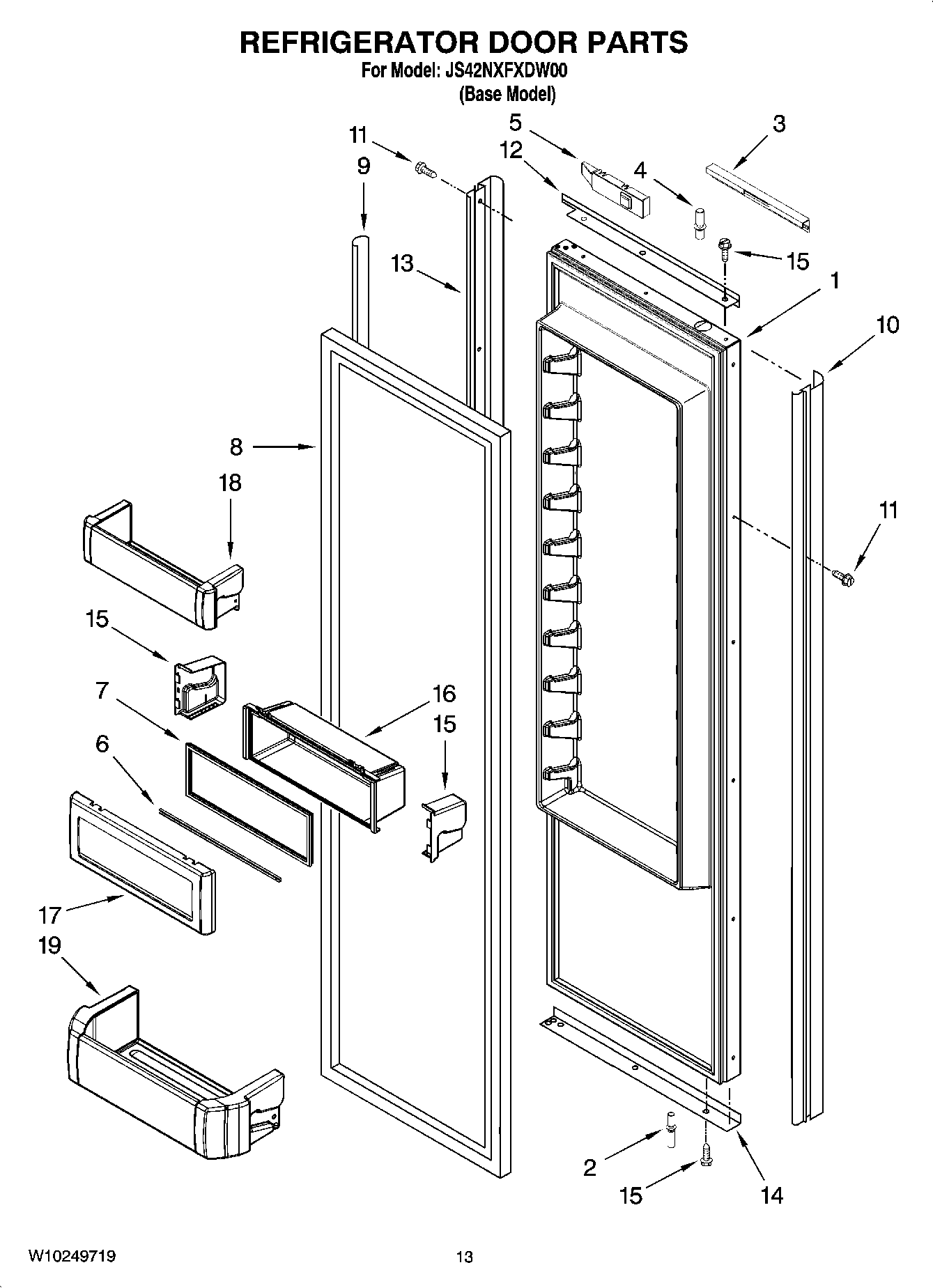

JS42NXFXDW00 09 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	REFRIGERATOR DOOR (INCLUDES No.8)
2	Pin-Door, Bottom
3	MAY W10199873
4	Pin-Door, Top
5	INSERT-DOOR, ARM (TOP)
5	INSERT-DOOR, ARM (BOTTOM)
5	Hinge Assy, Btm (Chrome)
6	MAY 2222796
7	MAY 2222982
8	MAY 2222811
9	Trim, Side
10	MAY W10167367
11	MAY 8281251
12	MAY W10182683
13	MAY W10182685
14	MAY W10182690
15	End Cap (Left Side)
15	End Cap (Right Side)
16	MAY 2222922
17	MAY 2257616
18	Bin, Door (3)
19	Bin, Door
