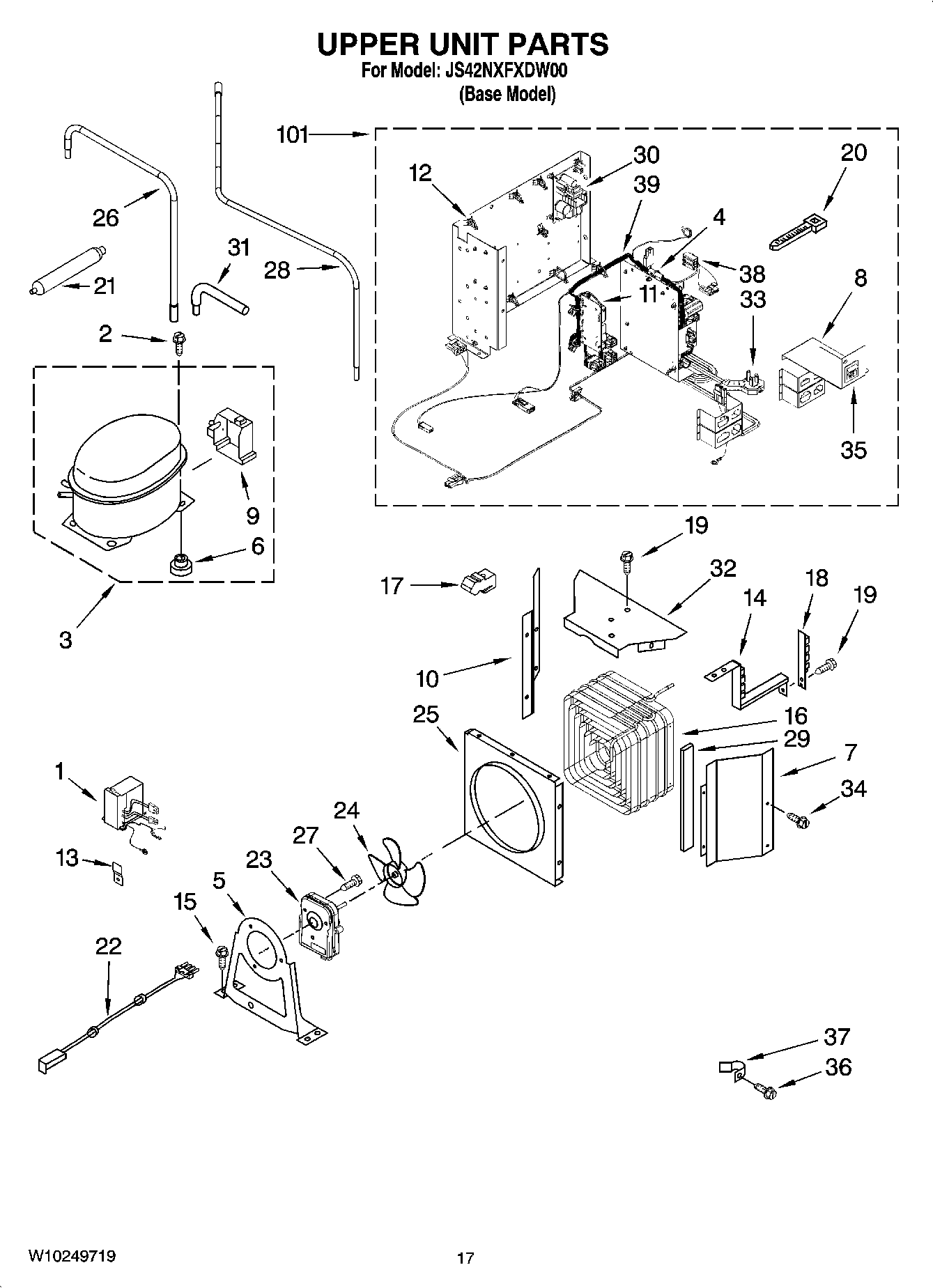

JS42NXFXDW00 11 – UPPER UNIT PARTS

Products

Position	Product
NI	MAY 876764
NI	VALVE, ACCESS (1/4``)
NI	Valve, Access (5/16``)
NI	VALVE, ACCESS (3/8``)
NI	Valve, Access (1/2``)
NI	Valve, Access (5/8``)
NI	Valve, Access (3/4``)
1	MAY W10133449
2	MAY 489373
3	MAY W10173296
4	Control-Elek, I/O
5	Bracket, Fan Motor (Condenser Fan)
6	Grommet (Production)
7	Support, Condenser
8	Bracket, Switch
9	MAY 2215676
10	MAY 2309001
11	Control-Elek, Power Supply
12	Spacer (5)
13	Bracket, Inverter Box
14	BRACKET, VIBRATION CONDENSER
15	MAY 1157158
16	MAY 2307998
17	MAY 2309431
18	ARM, VIBRATION CONDENSER
19	MAY 488649
20	MAY 2155774
21	MAY W10175593
22	MAY 2310207
23	MAY 2188875
24	MAY W10139483
25	MAY 2003169
26	MAY 2307566
27	MAY 8533993
28	MAY W10234131
29	MAY 2309432
30	Control-Elek, Controls
31	MAY 2194319
32	MAY 2309000
33	Service Cord
34	SCREW
35	Switch, Power Disconnect
36	Screw, Ground
37	MAY 549193
38	Wiring Harness, DC
39	Wiring Harness, AC
101	MAY W10193384
