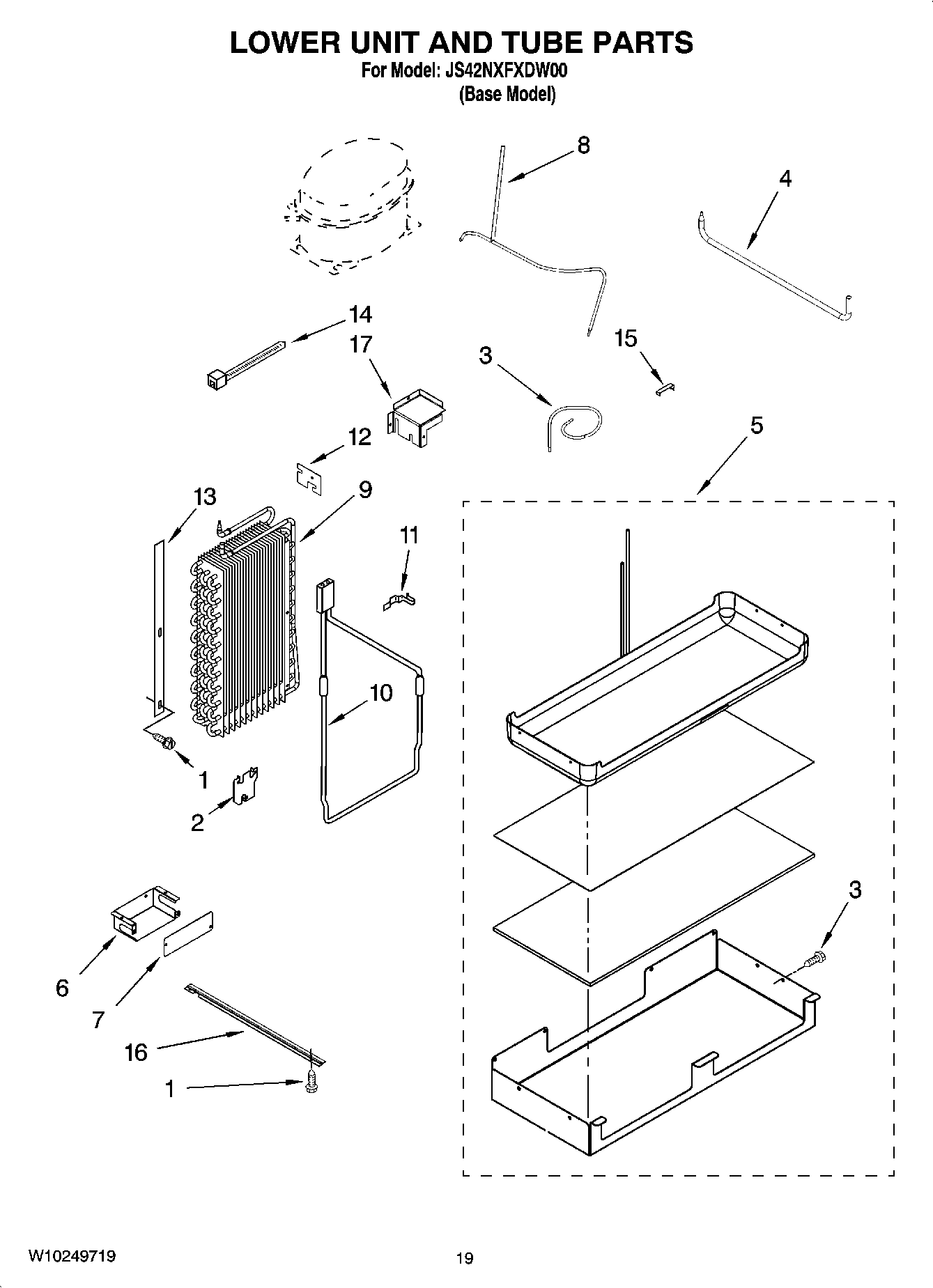

JS42NXFXDW00 12 – LOWER UNIT AND TUBE PARTS

Written by

Products

Position	Product
1	SCREW
2	Bracket
3	MAY 2309076
4	Tube, Connect (Drier/Restrictor)
5	Drain Pan Assy.
6	MAY W10153595
7	MAY W10151288
8	MAY W10121371
9	MAY W10205101
10	MAY W10140161
11	MAY 1113048
12	Cover Seal, Evaporator Tubes
13	MAY 2220832
14	Wire Tie
15	MAY W10169509
16	MAY 2320554
17	Bracket Assembly, Air Return
