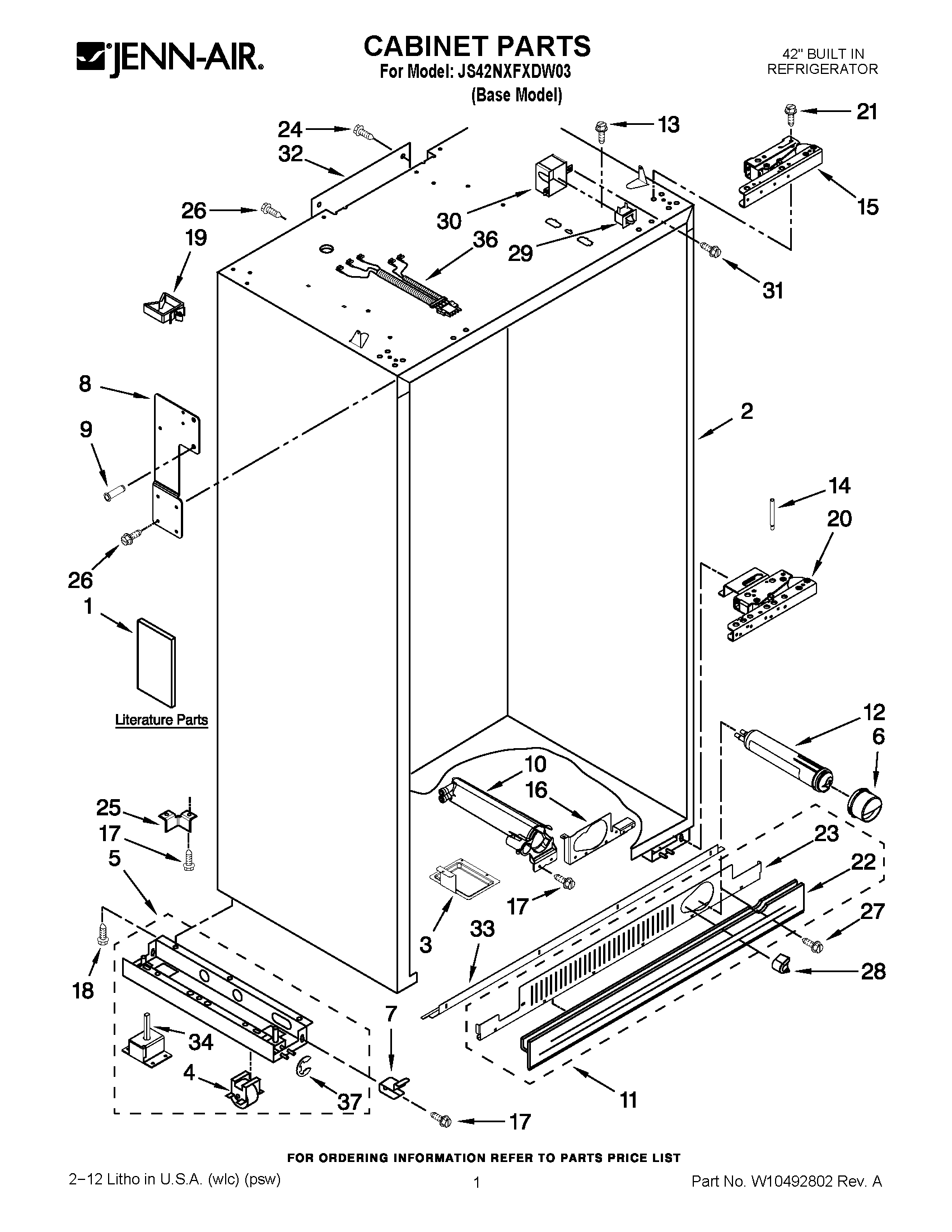

JS42NXFXDW03 01 – CABINET PARTS

Products

Position	Product
1	MAY W10234149
1	MAY W10483325
1	MAY W10234151
1	MAY W10246792
1	MAY W10379136
1	MAY W10303992
2	LINER (NOT A SERVICEABLE PART)
3	Tray, Drip Filter
4	MAY W10138054
5	SUPPORT, LEVELER ASSEMBLY (RIGHT HAND)
5	Support, Leveler Assembly (Freezer Side)
6	MAY 2260518B
7	Mounting Stud, Grille
8	SUPPORT, GRILLE (LH)
8	SUPPORT, GRILLE (RH)
9	Nutsert (4)
10	MAY W10121140
11	GRILLE KIT ASSY (INCLUDES 22 & 23)
12	MAY 4396841
13	Screw 8-32 x 5/16
14	Pin-Stop, Door
15	Hinge (Top) (FC)
15	Hinge (Top) (RC)
16	BRACKET, FILTER
17	MAY W10001250
18	SCREW
19	Wire Clip (5)
20	MAY W10182692
20	MAY W10182693
21	Screw 1/4-20 x 5/8
22	Skirt-Grille, Bottom
23	Grille Bottom, Front
24	MAY 1157158
25	Bracket, Support Base (Rear) (2)
26	SCREW
27	Screw
28	Button, Filter (Black)
29	SWITCH, LIGHT
30	COVER, SWITCH (RH)
30	COVER, SWITCH (LH)
31	Screw
32	Cover, Rear
33	MAY W10250962
34	LEVELER ASSY
36	MAY W10209510
37	Ring, Retainer
