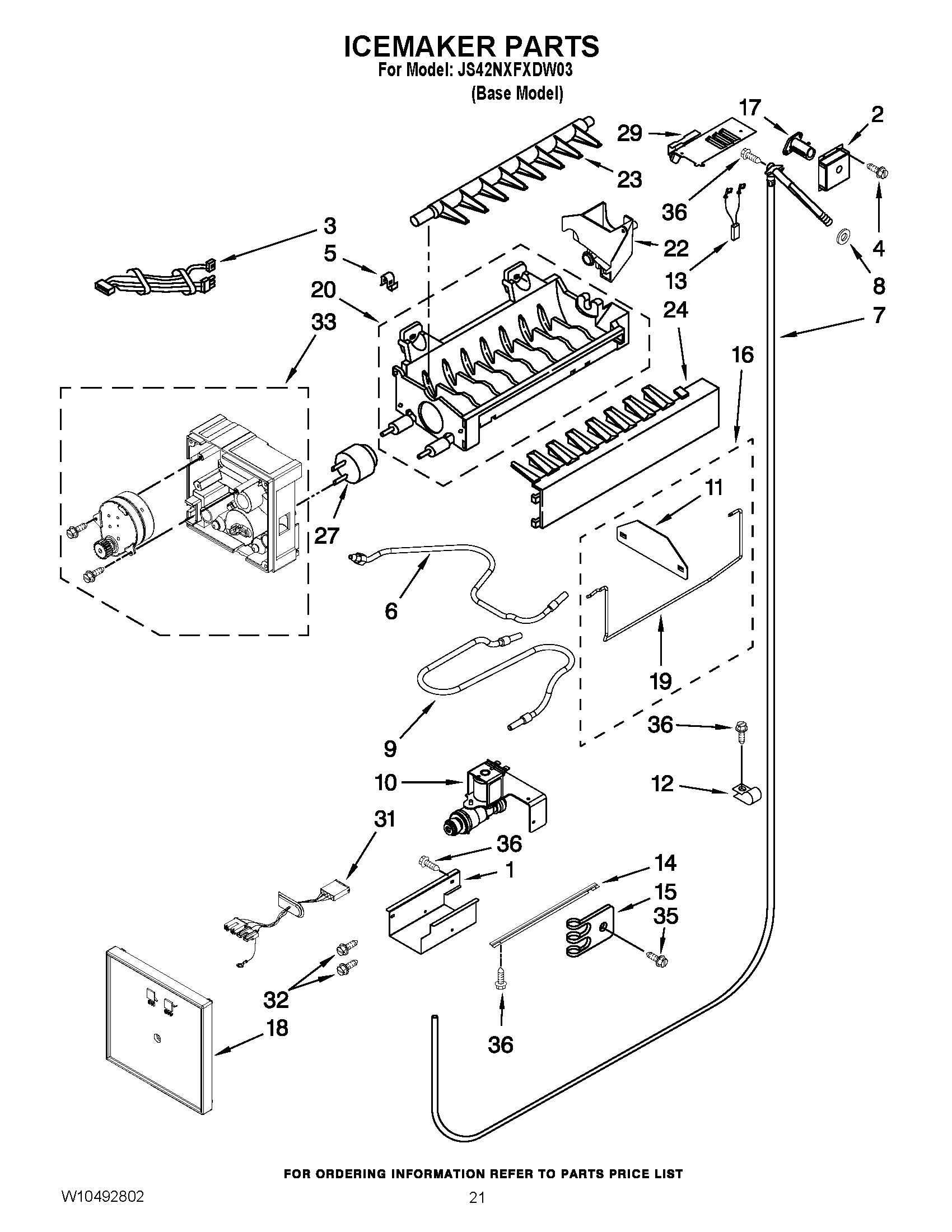

JS42NXFXDW03 13 – ICEMAKER PARTS

Products

Position	Product
NI	ACCESSORY PARTS, CLEANER, KITCHEN & APPLIANCE
NI	MAY W10249830
NI	BLOCK, INSTALL TEMPLATE, WOOD PANELS
NI	MAY W10222283
NI	MAY W10222281
NI	MAY REFDEODOR
NI	ACCESSORY PARTS, CLEANER, STAINLESS STEEL
NI	ACCESSORIES, WIPES, STAINLESS STEEL CLEANING
1	MAY W10129653
2	MAY W10176577
3	WIRE ASSEMBLY, ICEMAKER
4	SCREW
5	Clip
6	MAY W10296807
7	Water Inlet Tube Assembly
8	Seal
9	MAY 2317912
10	MAY 2307650
11	EXTENSION-SHUT OFF ARM
12	MAY 2221070
13	Jumper, Fill Tube Heater
14	MAY 2320559
15	Clip, Tube
16	MAY W10372199
17	MAY 2221240
18	MAY W10377174
19	MAY W10372190
20	MAY W10122527
22	CUP, FILL
23	MAY 627843
24	ICE STRIPPER
27	Thermostat (Also Order 542369 Cement Alumilastic)
29	MAY 2221231
31	MAY W10279393
32	SCREW
33	ASSEMBLY, MODULE AND MOTOR
35	MAY W10001250
36	SCREW
100	MAY W10435673
