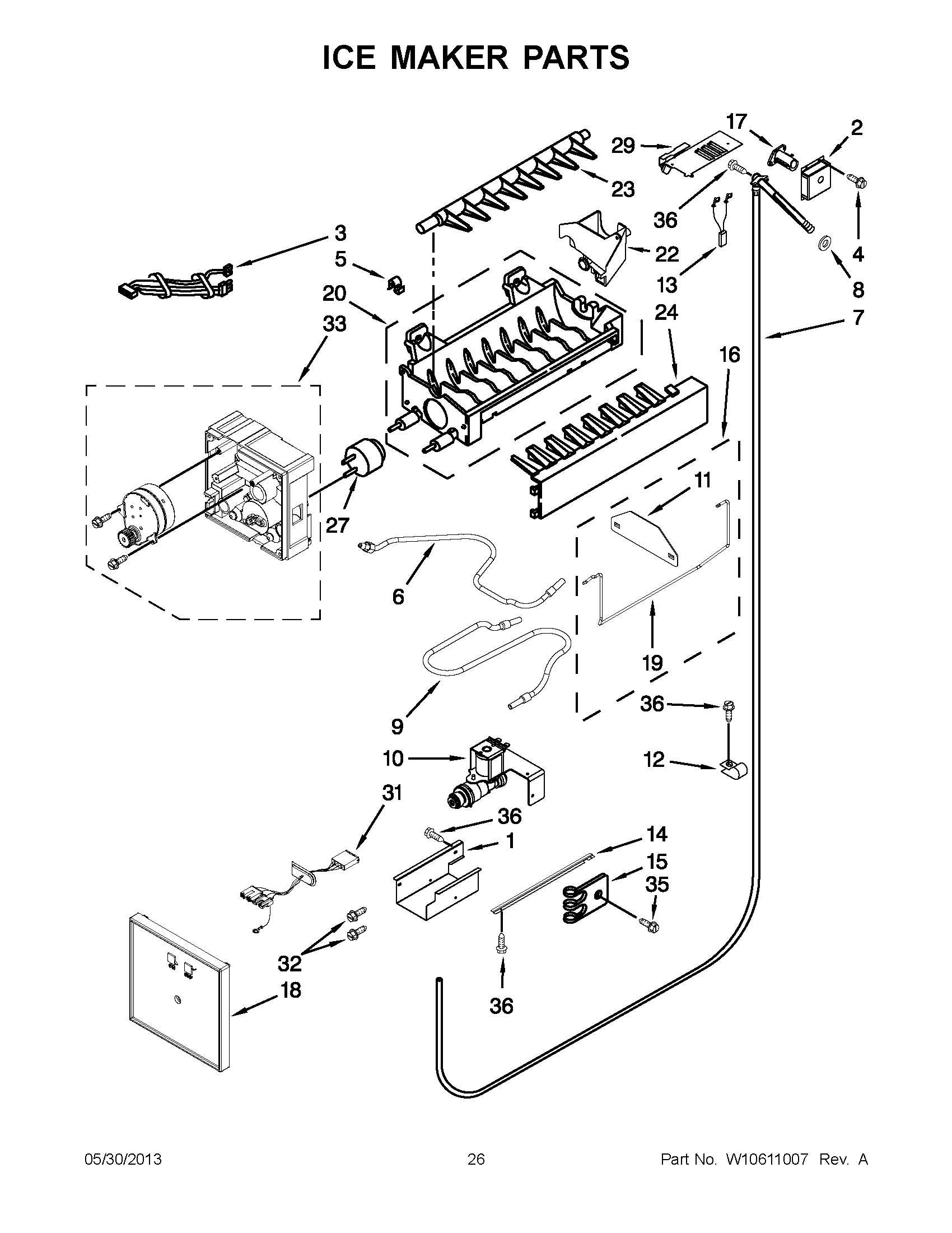

JS42NXFXDW04 13 – ICE MAKER PARTS

Written by

Products

Position	Product
1	MAY W10129653
2	MAY W10176577
4	SCREW
5	Clip
6	MAY W10296807
7	Water Inlet Tube Assembly
8	Seal
9	MAY 2317912
10	MAY 2307650
11	EXTENSION-SHUT OFF ARM
12	MAY 2221070
13	WIRE ASSEMBLY, FILL TUBE HEATER
14	MAY 2320559
15	Clip, Tube
16	MAY 2304354
17	MAY 2221240
18	COVER
19	MAY 2304352
20	MAY 489276
22	MAY W10435665
23	MAY 627843
24	ICE STRIPPER
27	Thermostat (Also Order 542369 Cement Alumilastic)
29	MAY 2221231
31	MAY W10279393
32	SCREW
33	Module Assembly (Includes Items 23 and 24)
35	MAY W10001250
36	SCREW
100	MAY W10277450
