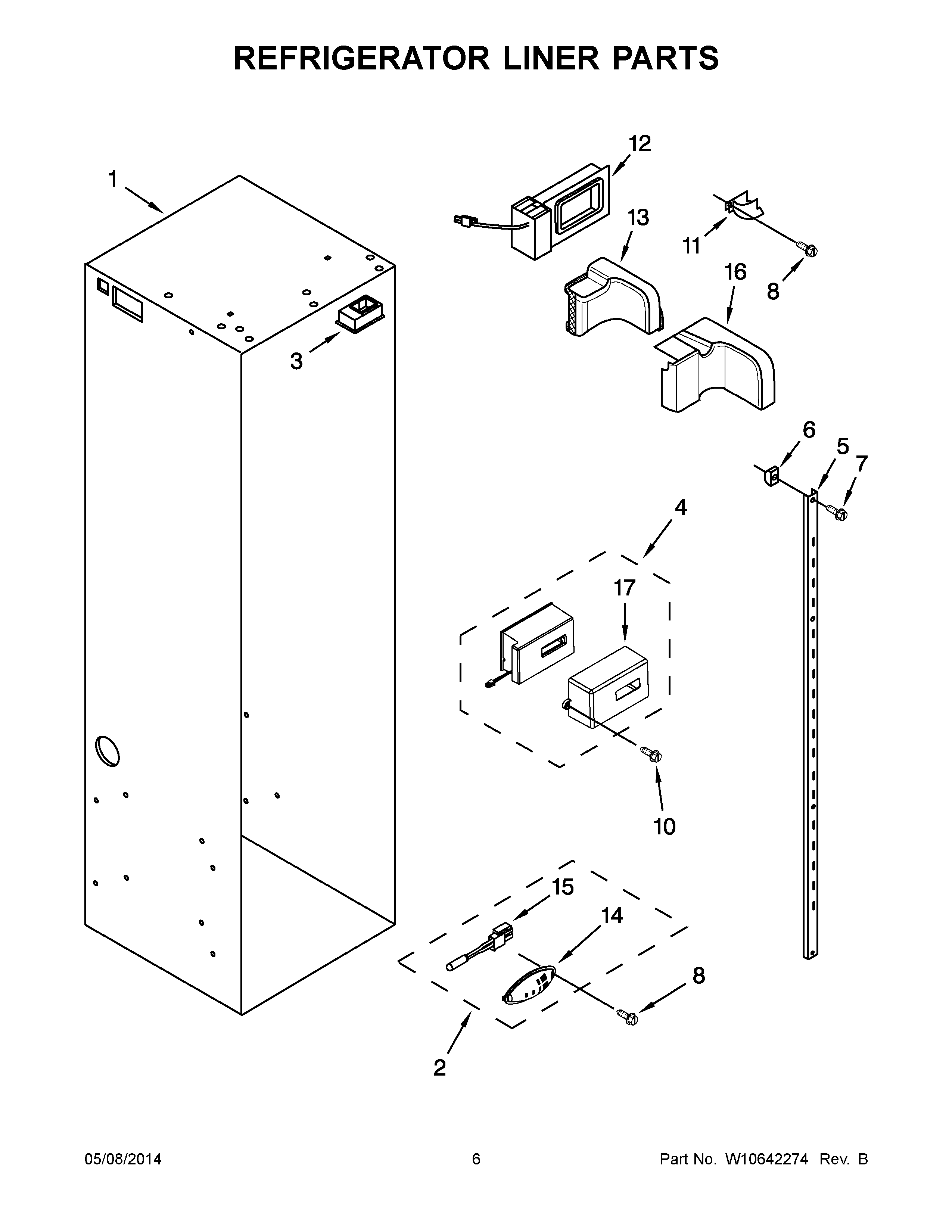

JS42NXFXDW05 04 – REFRIGERATOR LINER PARTS

JS42NXFXDW05 04 – REFRIGERATOR LINER PARTS

Written by

in

JS42NXFXDW05 04 – REFRIGERATOR LINER PARTS

Products

PositionProduct
1LINER (NOT A SERVICEABLE PART)
2ASSEMBLY, THERMISTOR
3Air Duct
4MAY W10171433
5MAY W10175171
6Support, Screw
7SCREW
8SCREW
10SCREW
11MAY 2003577
12Air Baffle Assembly
13Diffuser Assembly
14MAY 2317105
15MAY 2188820
16MAY W10170104
17MAY W10171428
