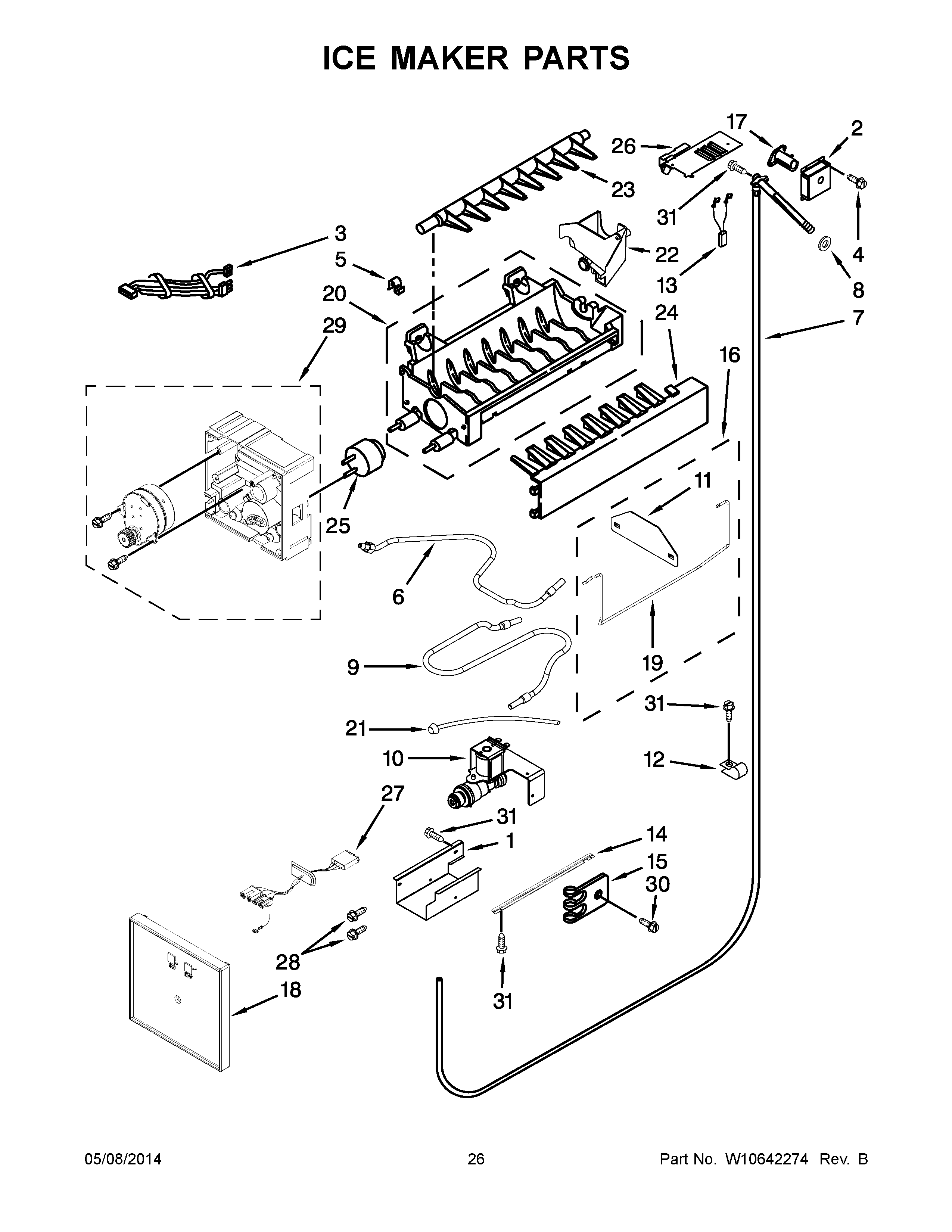

JS42NXFXDW05 14 – ICE MAKER PARTS

Products

Position	Product
NI	ACCESSORY PARTS, CLEANER, KITCHEN & APPLIANCE
NI	LINER (NOT A SERVICEABLE PART)
NI	MAY REFDEODOR
NI	ACCESSORIES, WIPES, STAINLESS STEEL CLEANING
NI	MAY W10553982
NI	MAY W10488101
NI	MAY W10489178
NI	ACCESSORY PARTS, CLEANER, STAINLESS STEEL
NI	BLOCK, INSTALL TEMPLATE, WOOD PANELS
1	MAY W10129653
2	MAY W10176577
3	WIRE ASSEMBLY, ICE MAKER
4	SCREW
5	Clip
6	MAY W10296807
7	Water Inlet Tube Assembly
8	Seal
9	MAY 2317912
10	MAY 2307650
11	EXTENSION-SHUT OFF ARM
12	MAY 2221070
13	WIRE ASSEMBLY, FILL TUBE HEATER
14	MAY 2320559
15	Clip, Tube
16	MAY 2304354
17	MAY 2221240
18	COVER
19	MAY 2304352
20	MAY 489276
21	MAY W10437853
22	MAY W10435665
23	MAY 627843
24	ICE STRIPPER
25	Thermostat (Also Order 542369 Cement Alumilastic)
26	MAY 2221231
27	MAY W10279393
28	SCREW
29	Module Assembly (Includes Items 23 and 24)
30	MAY W10001250
31	SCREW
100	MAY W10277450
