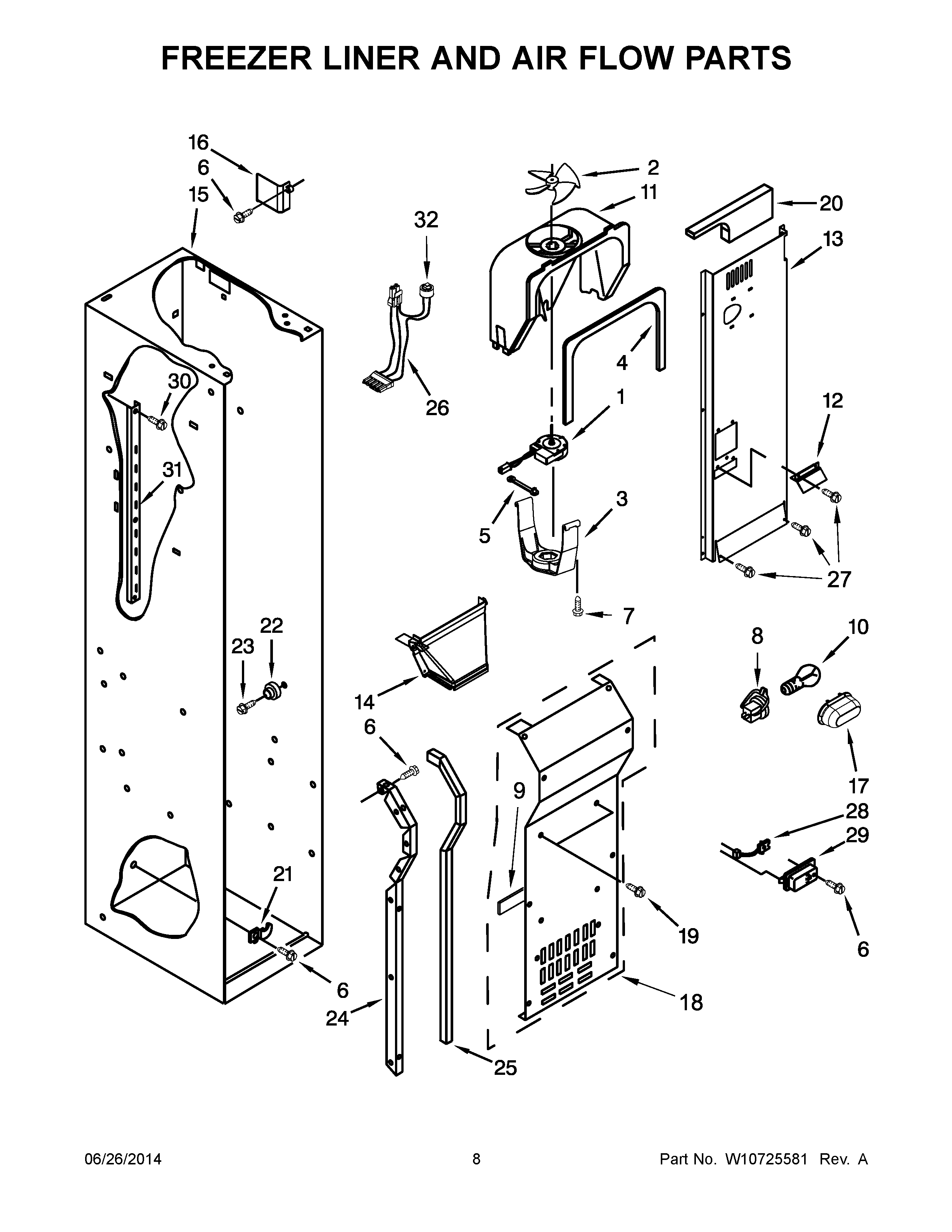

JS42NXFXDW10 05 – FREEZER LINER AND AIR FLOW PARTS

Products

PositionProduct
1MAY W10436861
2Blade, Fan (Evaporator)
3MAY W10260421
4Gasket, Cover
5MAY W10321090
6SCREW
7SCREW
8MAY W10191429
9MAY W10581988
10Bulb, Light
11MAY W10170114
13MAY W10170084
14MAY W10170112
15LINER (NOT A SERVICEABLE PART)
16MAY W10170101
17Light Shield
18MAY W10581994
19SCREW
20Deflector, Air Duct
21MAY 1112260
22ASSEMBLY, SHELF STUD
23MAY W10191952
24EVAPORATOR, COVER RAIL (RH)
24EVAPORATOR, COVER RAIL (LH)
25Gasket (2) Evaporator Cover
26MAY W10482187
27SCREW (WHITE)
28MAY 2188820
29MAY 2317105
30MAY 2001377
31MAY W10213473
32Defrost, Bi-Metal
