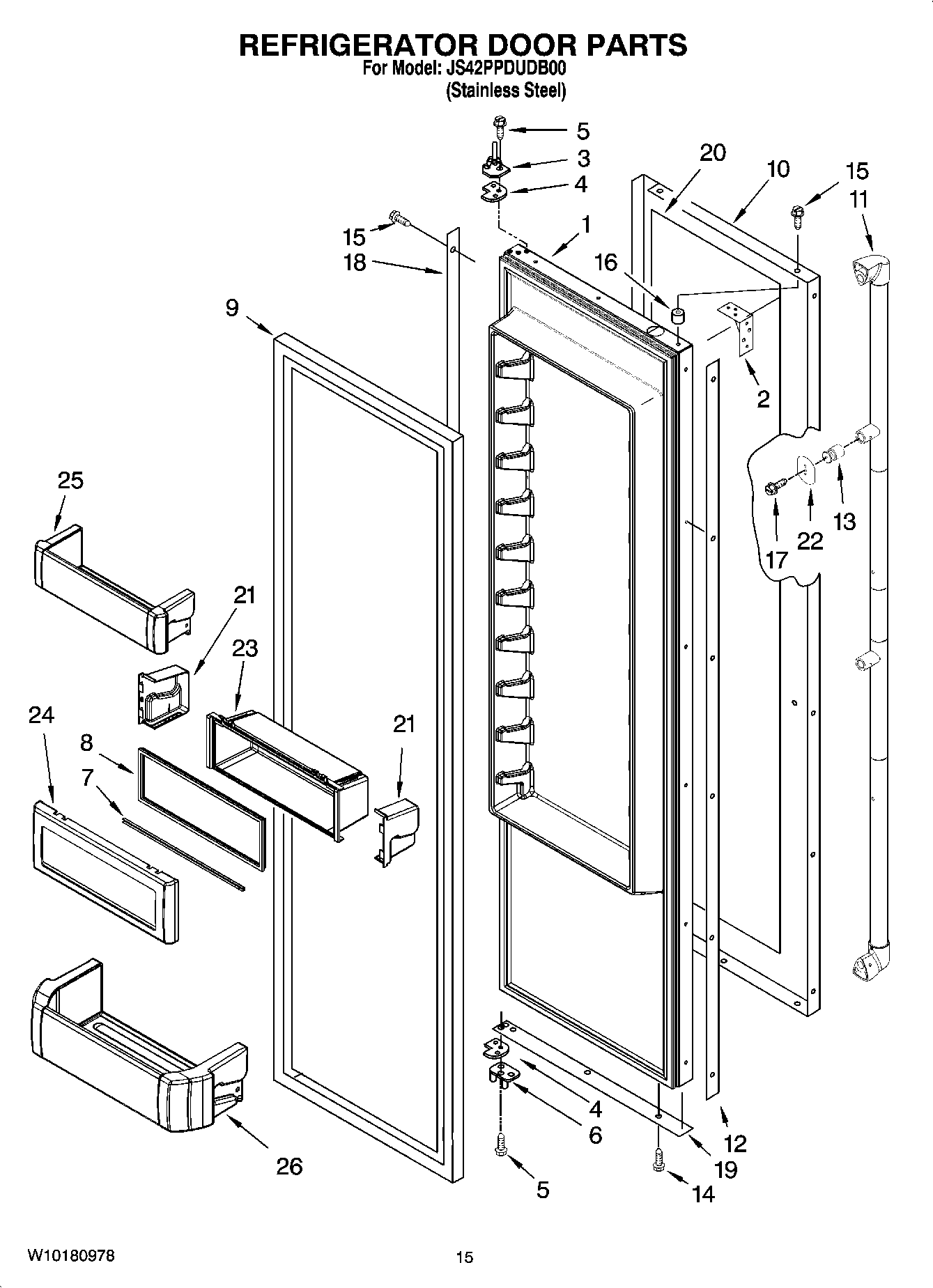

JS42PPDUDB00 10 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	MAY 2252330
2	Brace, Door Corner
3	MAY 2266854
4	Spacer-Door, Top & Bottom
5	MAY 489282
6	Hinge Assembly, Bottom
7	MAY 2222796
8	MAY 2222982
9	MAY 2222811
10	Skin, Door
11	Handle, Door
12	SPACER, DOOR-SKIN (HANDLE SIDE)
13	STUD, HANDLE MOUNTING
14	SCREW
15	Screw, 8-15 x .500 (Stainless Steel)
16	Spacer, Door-Skin (Top)
17	Screw
18	Spacer, Door-Skin (Hinge Side)
19	Spacer, Door-Skin (Bottom)
20	MAY 2005326
21	End Cap (Right Side)
21A	End Cap (Left Side)
22	MAY W10127710
23	MAY 2222922
24	MAY 2257616
25	Bin, Door (3)
26	Bin, Door
