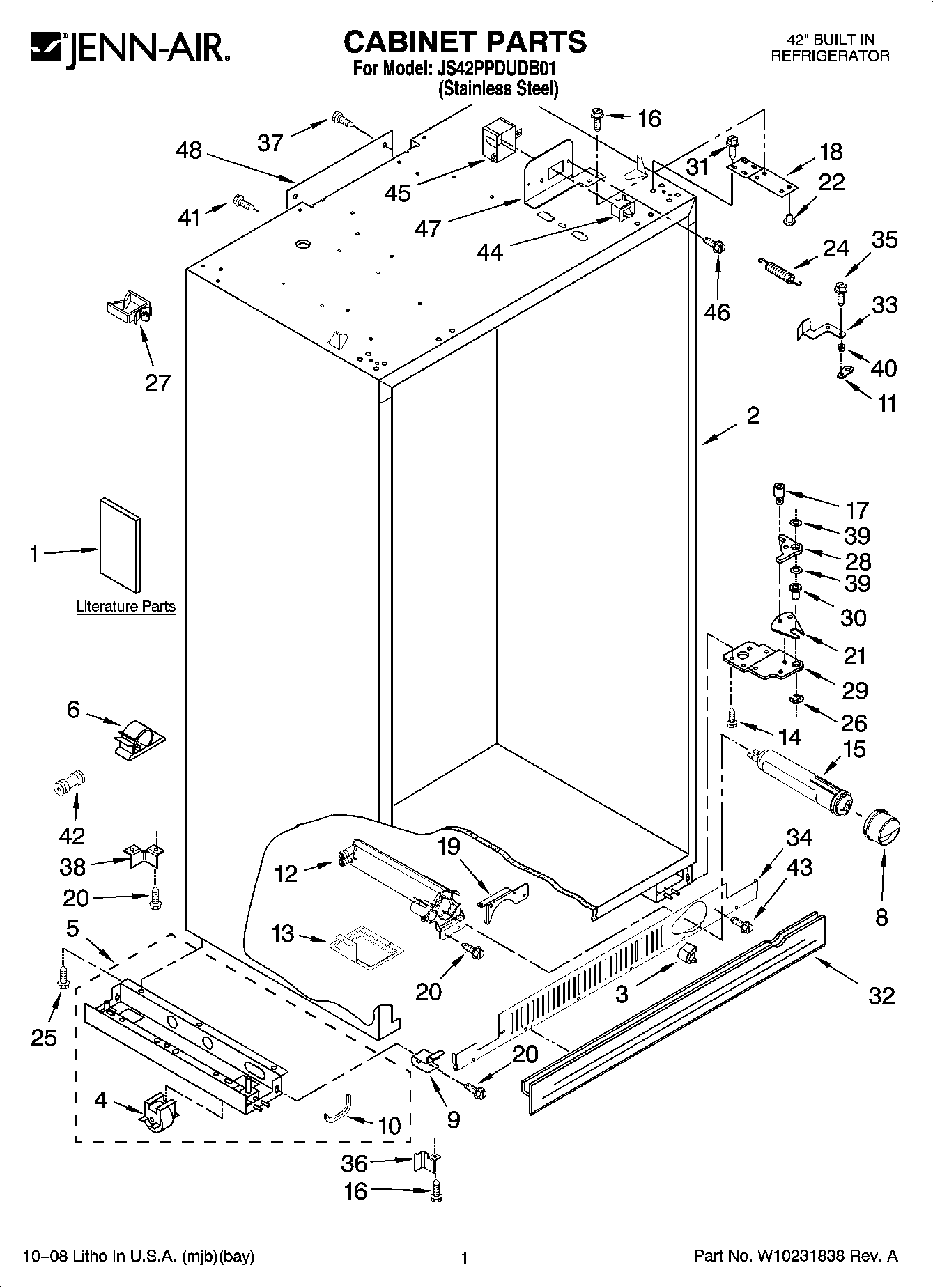

JS42PPDUDB01 01 – CABINET PARTSadmin2025-04-26T09:12:29+00:00JS42PPDUDB01 01 – CABINET PARTS
Products
| Position | Product |
|---|
| 1 | MAY W10159832 |
| 1 | MAY 2306424 |
| 1 | MAY 2318069 |
| 1 | MAY W10164077 |
| 1 | MAY W10151249 |
| 1 | MAY W10151251 |
| 3 | Button, Filter (Black) |
| 4 | MAY W10138054 |
| 5 | Support, Leveler Assembly (Left Side) |
| 5 | Support, Leveler Assembly (Right Side) |
| 6 | CLIP |
| 8 | MAY 2260518B |
| 9 | Mounting Stud, Grille |
| 10 | GROMMET, CROSSOVERTUBE |
| 11 | MAY 2005783 |
| 12 | MAY W10121140 |
| 13 | Tray, Drip Filter |
| 14 | MAY 3400525 |
| 15 | MAY 4396841 |
| 16 | Screw 8-32 x 5/16 |
| 17 | Screw, Door Stop |
| 18 | Hinge (Top) |
| 19 | Bracket, Mtg (Water Filter) |
| 20 | Screw (3) |
| 21 | Lock, Adjustable Bushing |
| 22 | MAY 2300082 |
| 24 | Spring, Door Closure (Right Side) |
| 25 | SCREW |
| 26 | Retaining Ring, Adjustable Bushing |
| 27 | Wire Clip (5) |
| 28 | MAY 2006342 |
| 29 | HINGE, BOTTOM (REFRIGERATOR) |
| 29 | HINGE, BOTTOM (FREEZER) |
| 30 | MAY 2302876 |
| 31 | Screw 1/4-20 x 5/8 |
| 32 | Skirt-Grille, Bottom (Black) |
| 33 | EXTENSION ARM, DOOR CLOSER (LEFT HAND) |
| 33 | EXTENSION ARM, DOOR CLOSER (RIGHT HAND) |
| 34 | MAY 2325185B |
| 35 | MAY 2005921 |
| 36 | Bracket, Support Base (Front) (Left) |
| 36 | Bracket, Support Base (Front) (Right) |
| 37 | MAY 1157158 |
| 38 | Bracket, Support Base (Rear) (2) |
| 39 | WASHER |
| 40 | Bushing, Extension Arm |
| 41 | SCREW |
| 42 | CONNECTOR, WATER |
| 42 | Connector, Water Tube (1/4``) |
| 43 | Screw |
| 44 | Switch, Rocker Arm |
| 44 | MAY 1118894 |
| 45 | Cover, Switch (2) |
| 46 | Screw |
| 47 | MAY 2221096 |
| 47 | MAY 2221097 |
| 48 | Cover, Rear |
