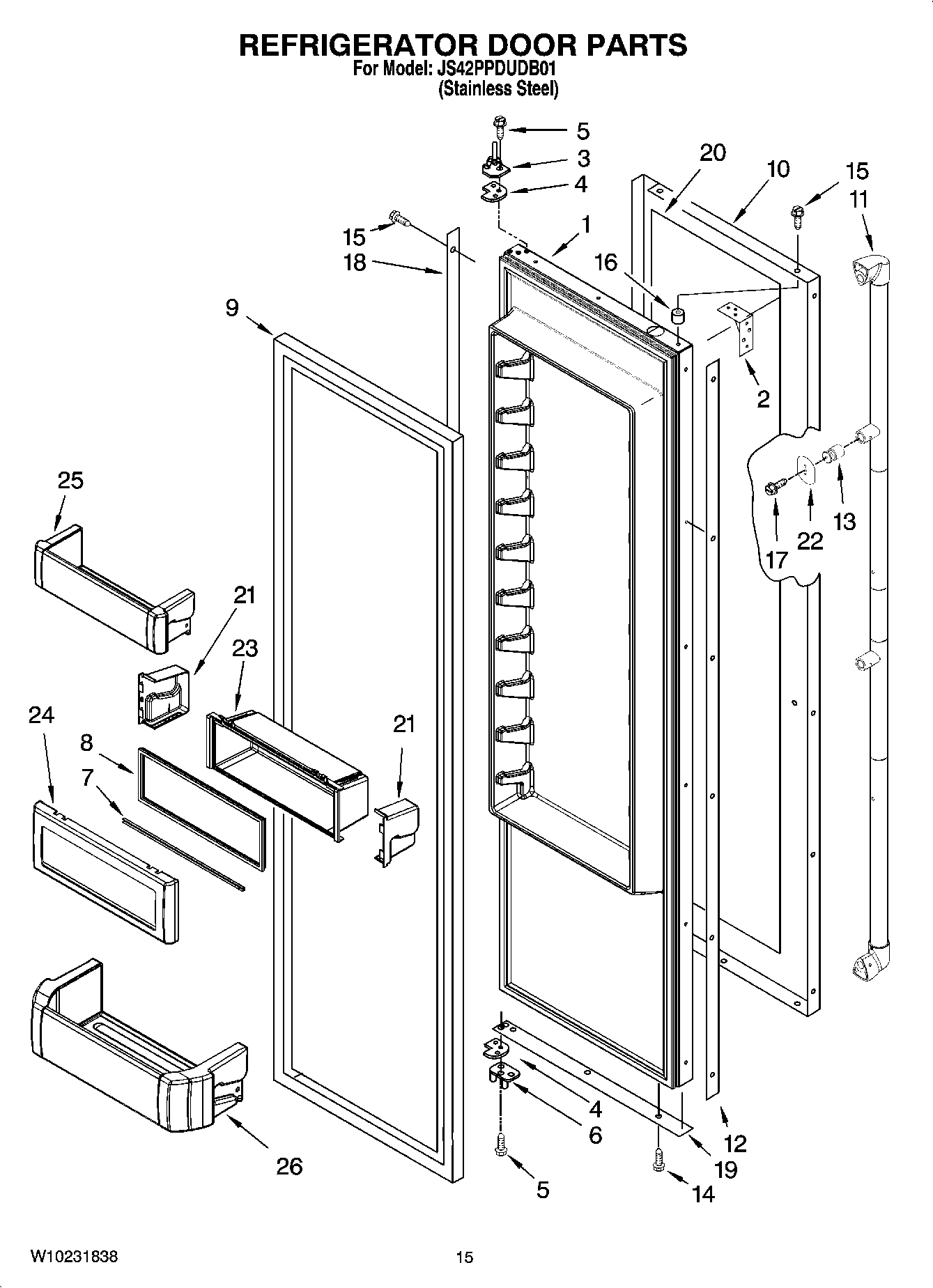

JS42PPDUDB01 10 – REFRIGERATOR DOOR PARTSadmin2025-04-26T09:12:20+00:00JS42PPDUDB01 10 – REFRIGERATOR DOOR PARTS
Products
| Position | Product |
|---|
| 1 | DOOR ASSEMBLY, REFRIGERATOR |
| 2 | Brace, Door Corner |
| 3 | MAY 2266854 |
| 4 | Spacer-Door, Top & Bottom |
| 5 | MAY 489282 |
| 6 | Hinge Assembly, Bottom |
| 7 | MAY 2222796 |
| 8 | MAY 2222982 |
| 9 | MAY 2222811 |
| 10 | Skin, Door |
| 11 | Handle, Door |
| 12 | SPACER, DOOR-SKIN (HANDLE SIDE) |
| 13 | STUD, HANDLE MOUNTING |
| 14 | SCREW |
| 15 | Screw, 8-15 x .500 (Stainless Steel) |
| 16 | Spacer, Door-Skin (Top) |
| 17 | Screw |
| 18 | SPACER, DOOR |
| 19 | Spacer, Door-Skin (Bottom) |
| 20 | MAY 2005326 |
| 21 | End Cap (Right Side) |
| 21 | End Cap (Left Side) |
| 22 | MAY W10127710 |
| 23 | MAY 2222922 |
| 24 | MAY 2257616 |
| 25 | Bin, Door (3) |
| 26 | Bin, Door |
