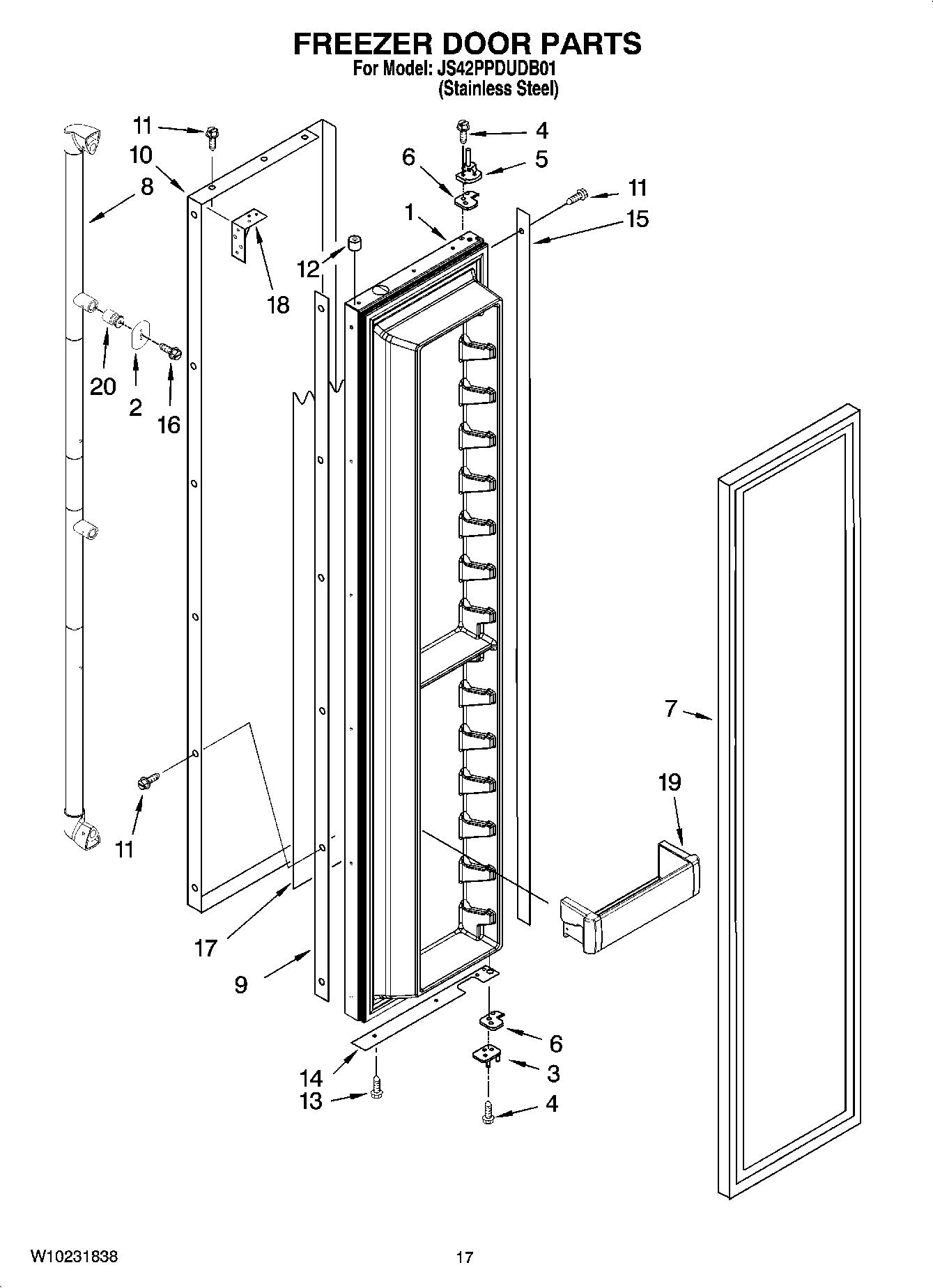

JS42PPDUDB01 11 – FREEZER DOOR PARTS

Products

Position	Product
1	Door Assy, FC (Includes 14) (Black)
2	MAY W10127710
3	ASSEMBLY, BOTTOM HINGE LEAF
4	MAY 489282
5	MAY 2266854
6	Spacer-Door, Top & Bottom
7	MAY 2222814
8	Handle, Door
9	SPACER, DOOR-SKIN (HANDLE SIDE)
10	SKIN, DOOR
11	Screw, 8-15 x .500 (Stainless Steel)
12	Spacer, Door-Skin (Top)
13	SCREW
14	Spacer, Door-Skin (Bottom)
15	SPACER, DOOR
16	Screw
17	MAY W10159585
17	MAY W10159582
18	Brace, Door Corner
19	Bin, Door (3)
20	STUD, HANDLE MOUNTING
