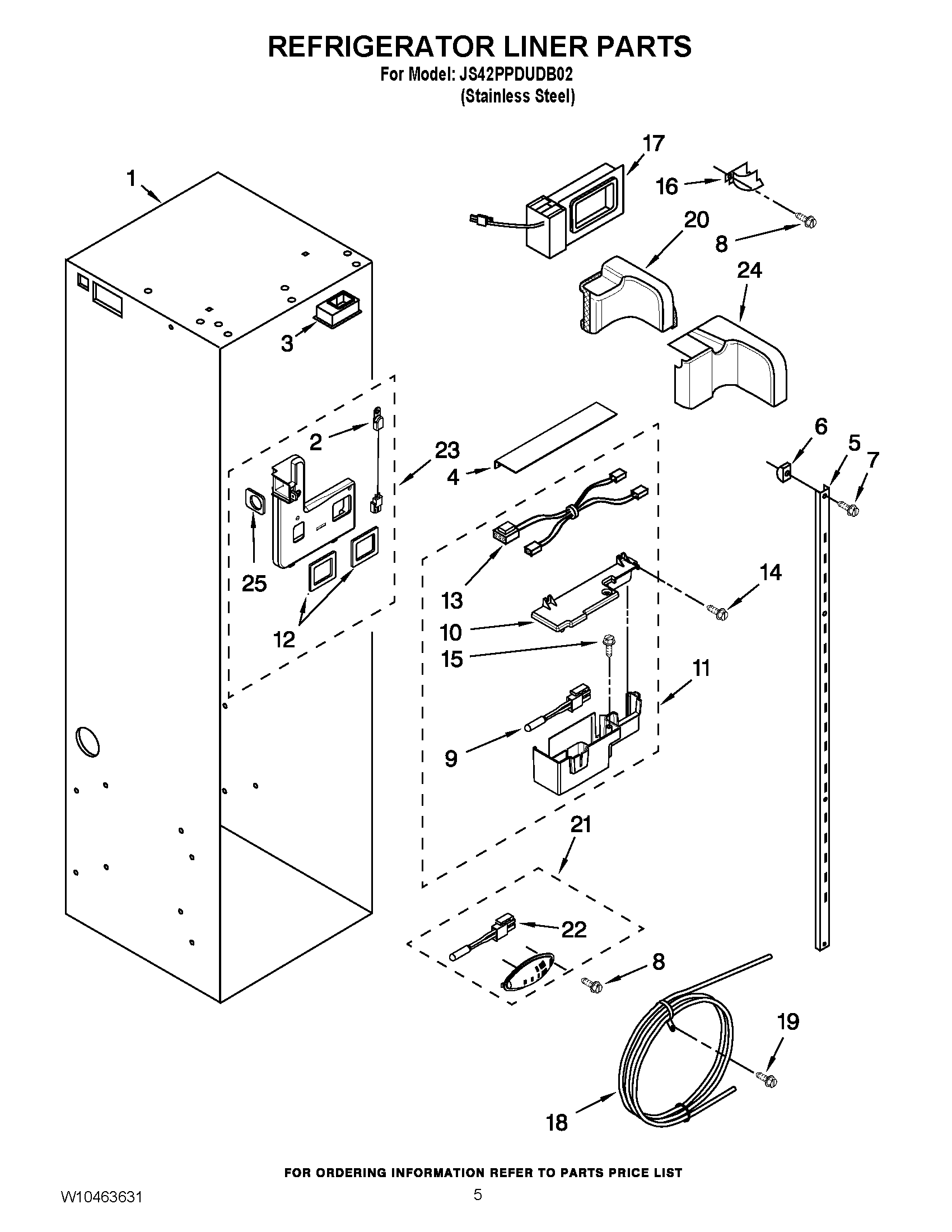

JS42PPDUDB02 04 – REFRIGERATOR LINER PARTS

Products

PositionProduct
1LINER (NOT A SERVICEABLE PART)
2MAY 2306010
3Air Duct
4MAY W10159487
5Ladder, Shelf (2)
6Screw Support, Ladder (8)
7SCREW
8SCREW
9MAY 2302937
10Lid, Meat Pan Baffle
11Baffle, Control Assembly
12Seal, Air Duct (Square Hole)
13Jumper, Air Baffle
14SCREW
15SCREW
16MAY 2003577
17Air Baffle Assembly
18MAY 2327509
19Screw
20Diffuser Assembly
21ASSEMBLY, THERMISTOR
22MAY 2188820
23MAY 2302992
24Cover, Diffuser
25MAY 2259412
