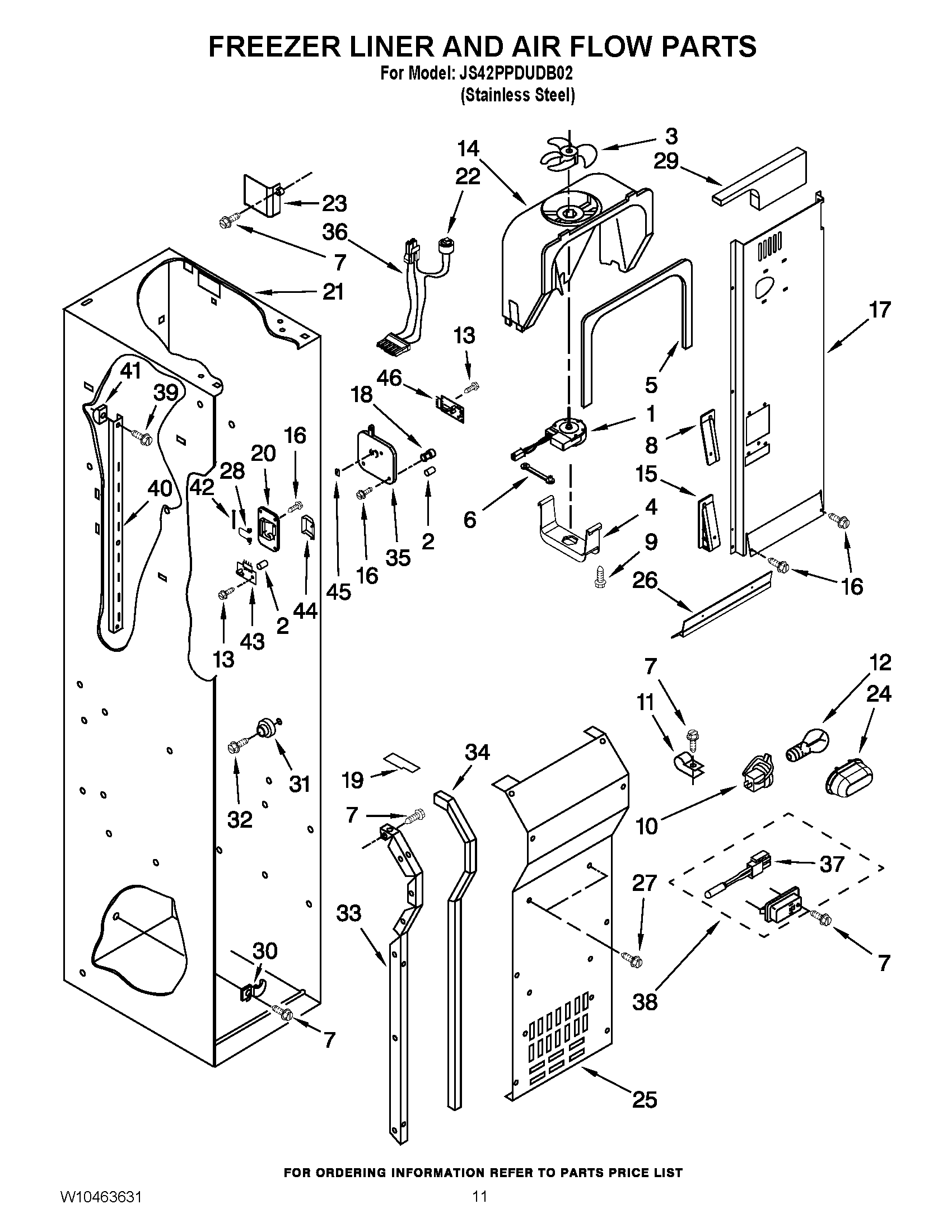

JS42PPDUDB02 08 – FREEZER LINER AND AIR FLOW PARTS

Products

PositionProduct
1MAY 2259385
2MAY 2198665
3Blade, Fan (Evaporator)
4MAY 2223733
5Gasket, Cover
6Grommet
7SCREW
8Wedge, Air Duct
9MAY 488500
10MAY 2223857
11MAY 489348
12Bulb, Light
13Screw (2)
14Fan Scroll
15Wedge, Air Duct
16MAY 8281185
17Air Duct
18MAY 2198643
19Block, Fan Scroll (Left)
19Block, Fan Scroll (Right)
20MAY W10151205
21LINER (NOT A SERVICEABLE PART)
22Defrost, Bi-Metal
23MAY 2259025
24Light Shield
25MAY W10158003
26MAY 2302850
27SCREW
28SPRING, DOOR
29MAY 2309283
30MAY 1112260
31ASSEMBLY, SHELF STUD
32MAY W10191952
33Evaporator, Cover Rail (Right Side)
33Evaporator, Cover Rail (Left Side)
34Gasket (2) Evaporator Cover
35MAY W10151208
36MAY W10139189
37MAY 2306010
38ASSEMBLY, THERMISTOR
39SCREW
40MAY 2259032
41Support, Screw
42PIN, DOOR
43MAY W10193840
44MAY 2198633
45MAY 2315398
46MAY W10290817
