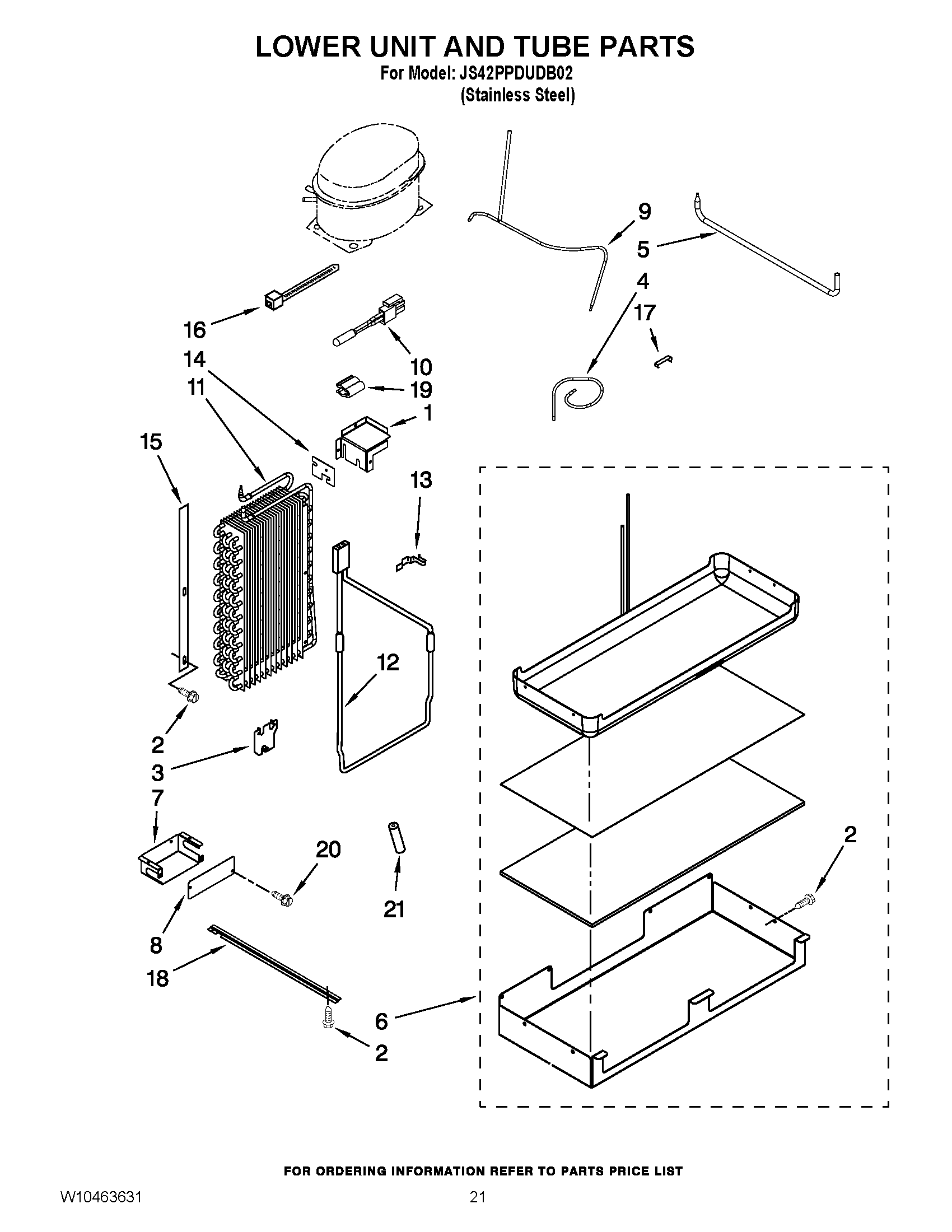

JS42PPDUDB02 13 – LOWER UNIT AND TUBE PARTS

Products

PositionProduct
1Bracket Assembly, Air Return
2SCREW
3Bracket
4TUBE, OIL TRAP SUCTION
5TUBE, CONNECT (DRIER/RESTRICTOR)
6MAY W10281063
7MAY W10151288
8MAY W10153595
9MAY W10412488
10MAY 2188820
11MAY W10205101
12MAY W10140161
13MAY 1113048
14Cover Seal, Evaporator Tubes
15MAY 2220832
16Wire Tie
17MAY W10169509
18MAY 2320554
19Clip, Evaporator Tube
20Screw
21Dampener
