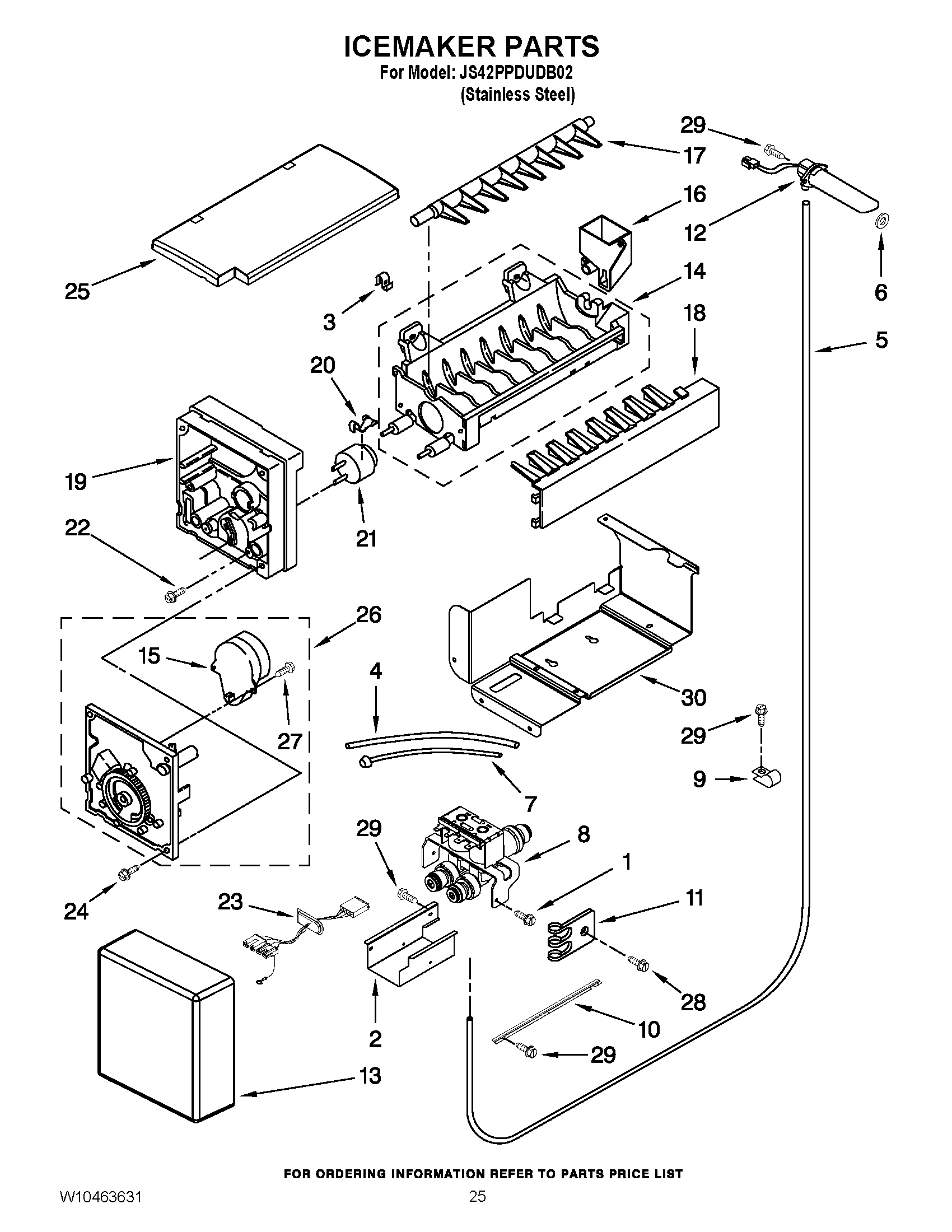

JS42PPDUDB02 14 – ICEMAKER PARTS

Products

Position	Product
NI	ACCESSORY PARTS, CLEANER, KITCHEN & APPLIANCE
NI	ACCESSORY PARTS, CLEANER, STAINLESS STEEL
NI	ACCESSORIES, WIPES, STAINLESS STEEL CLEANING
1	Screw
2	Shield, Valve
3	Clip
4	MAY W10174395
5	Water Tube
6	MAY 2302758
7	MAY 2317912
8	Valve, Solenoid
9	MAY 2221070
10	MAY 2320559
11	Clip, Tube
12	MAY 2302756
13	MAY 2221232
14	MAY W10122527
15	LINER (NOT A SERVICEABLE PART)
16	Cup, Fill
17	MAY 627843
18	Ice Striper
19	MAY 2194712
20	MAY 2315522
21	Thermostat (Also Order 542369 Cement Alumilastic)
22	MAY 8533917
23	MAY W10139199
24	MAY 489276
25	MAY W10151255
26	MODULE ASSEMBLY (INCLUDES ITEM 24)
27	MAY 489136
28	Screw (3)
29	SCREW
30	MAY 2252228
100	Complete Icemaker Assembly
