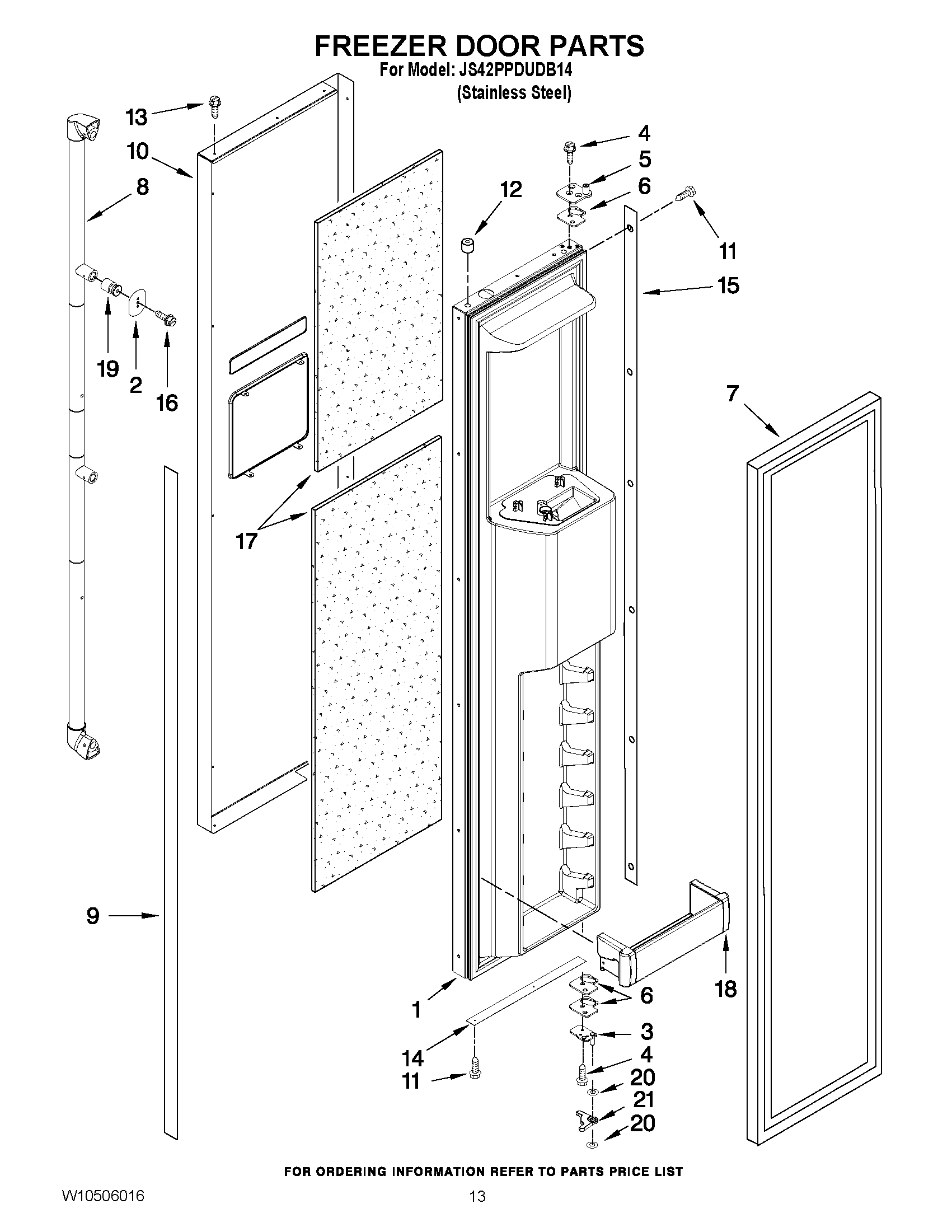

JS42PPDUDB14 09 – FREEZER DOOR PARTS
Written by
in
JS42PPDUDB14 09 – FREEZER DOOR PARTS
Products
Position
Product
1
MAY W10292432
2
MAY W10127710
3
ASSEMBLY, BOTTOM HINGE LEAF
4
MAY W10162602
5
MAY 2266854
6
Spacer-Door, Top & Bottom
7
MAY 2222814
8
Handle, Door
9
SPACER, DOOR-SKIN (HANDLE SIDE)
10
SKIN, DOOR
11
Screw, 8-15 x .500 (Stainless Steel)
12
Spacer, Door-Skin (Top)
13
SCREW
14
Spacer, Door-Skin (Bottom)
15
SPACER, DOOR
16
Screw
17
MAY W10159582
17
MAY W10159585
18
MAY W10323602
19
STUD, HANDLE MOUNTING
20
WASHER
21
MAY 2006342
←
