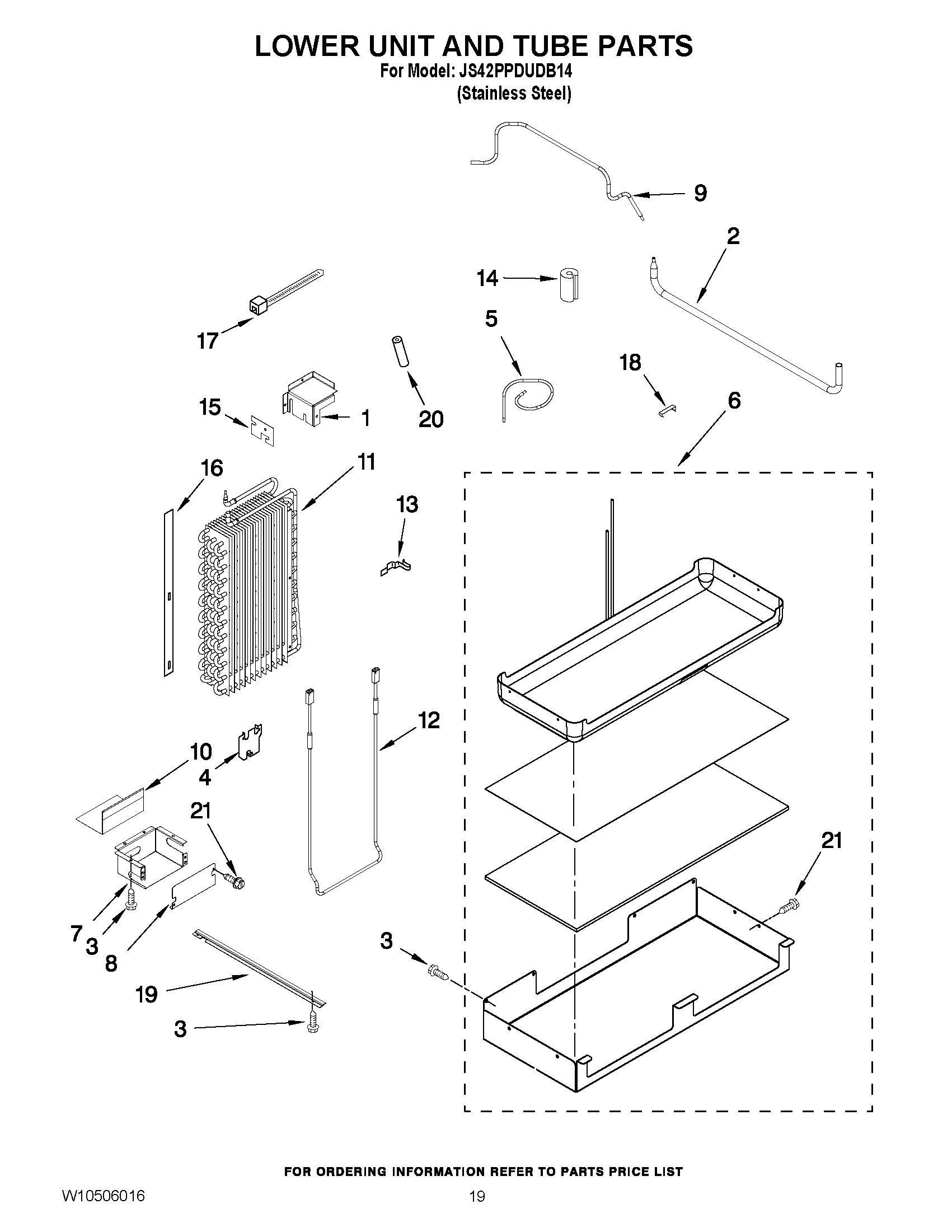

JS42PPDUDB14 12 – LOWER UNIT AND TUBE PARTS

Written by

Products

Position	Product
1	Bracket Assembly, Air Return
2	TUBE, CONNECT (DRIER/RESTRICTOR)
3	SCREW
4	Bracket
5	SUCTION TUBE
6	MAY W10281063
7	MAY W10309012
8	MAY W10321048
9	MAY W10412488
10	MAY W10321050
11	MAY W10427992
12	MAY W10140161
13	MAY 1113048
14	GROMMET, AIR RETURN
15	Cover Seal, Evaporator Tubes
16	MAY W10432308
17	MAY 2155774
18	MAY W10169509
19	MAY 2320554
20	Dampener
21	Screw
