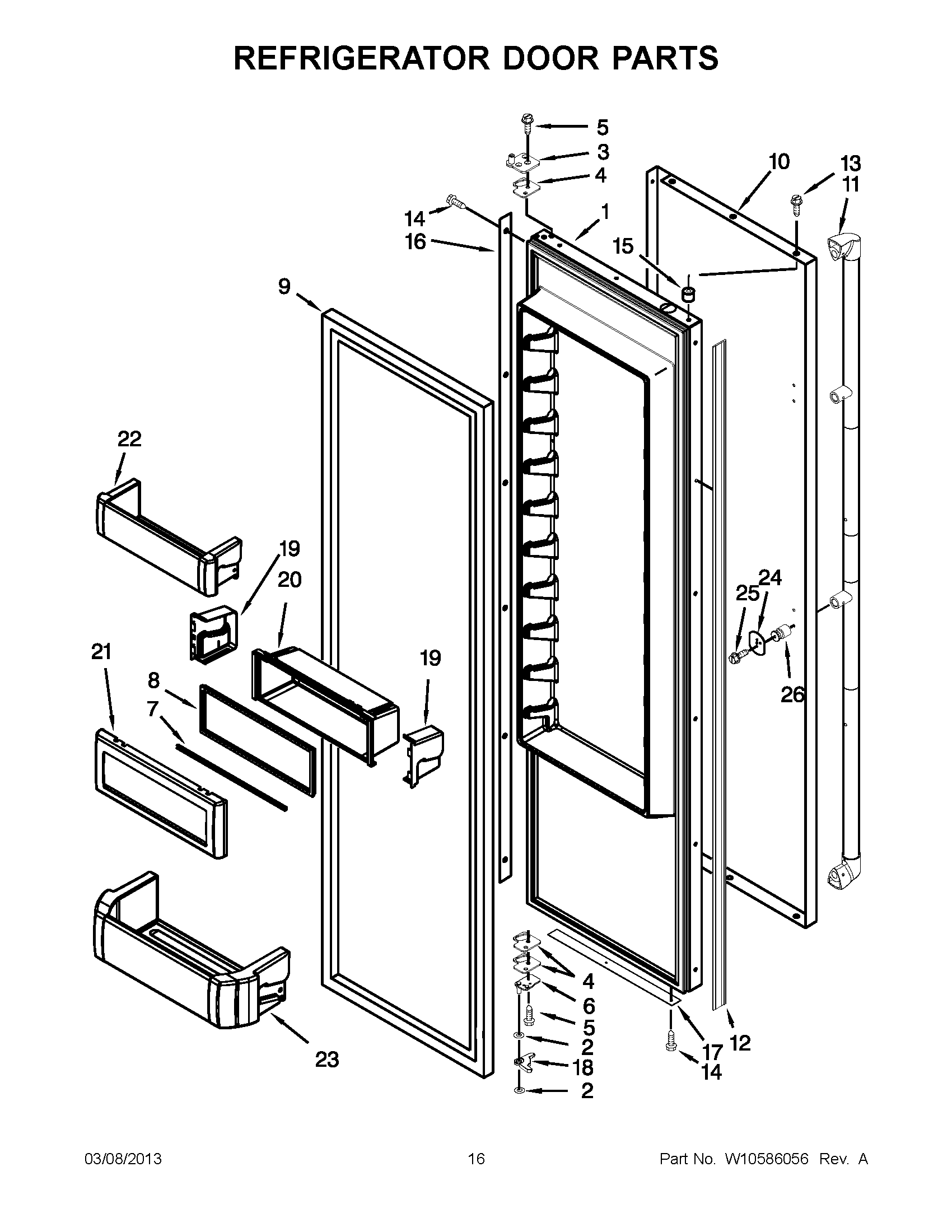

JS42PPDUDB15 08 – REFRIGERATOR DOOR PARTSadmin2025-04-26T09:14:21+00:00JS42PPDUDB15 08 – REFRIGERATOR DOOR PARTS
Products
| Position | Product |
|---|
| 1 | DOOR ASSEMBLY, REFRIGERATOR |
| 2 | WASHER |
| 3 | ASSEMBLY, TOP HINGE |
| 4 | Spacer-Door, Top & Bottom |
| 5 | MAY W10162602 |
| 6 | Hinge Assembly, Bottom |
| 7 | MAY 2222796 |
| 8 | MAY 2222982 |
| 9 | MAY 2222811 |
| 10 | Handle, Door |
| 10 | MAY W10523732 |
| 12 | SPACER, DOOR-SKIN (HANDLE SIDE) |
| 13 | SCREW |
| 14 | Screw, 8-15 x .500 (Stainless Steel) |
| 15 | Spacer, Door-Skin (Top) |
| 16 | SPACER, DOOR |
| 17 | Spacer, Door-Skin (Bottom) |
| 19 | END CAP (RIGHT HAND) |
| 19 | END CAP (LEFT HAND) |
| 20 | BIN, UTILITY CENTER |
| 21 | MAY 2257616 |
| 22 | BIN, DOOR-SHALLOW |
| 23 | SHELF, DOOR (GALLON) |
| 24 | MAY W10127710 |
| 25 | Screw |
| 26 | STUD, HANDLE MOUNTING |
