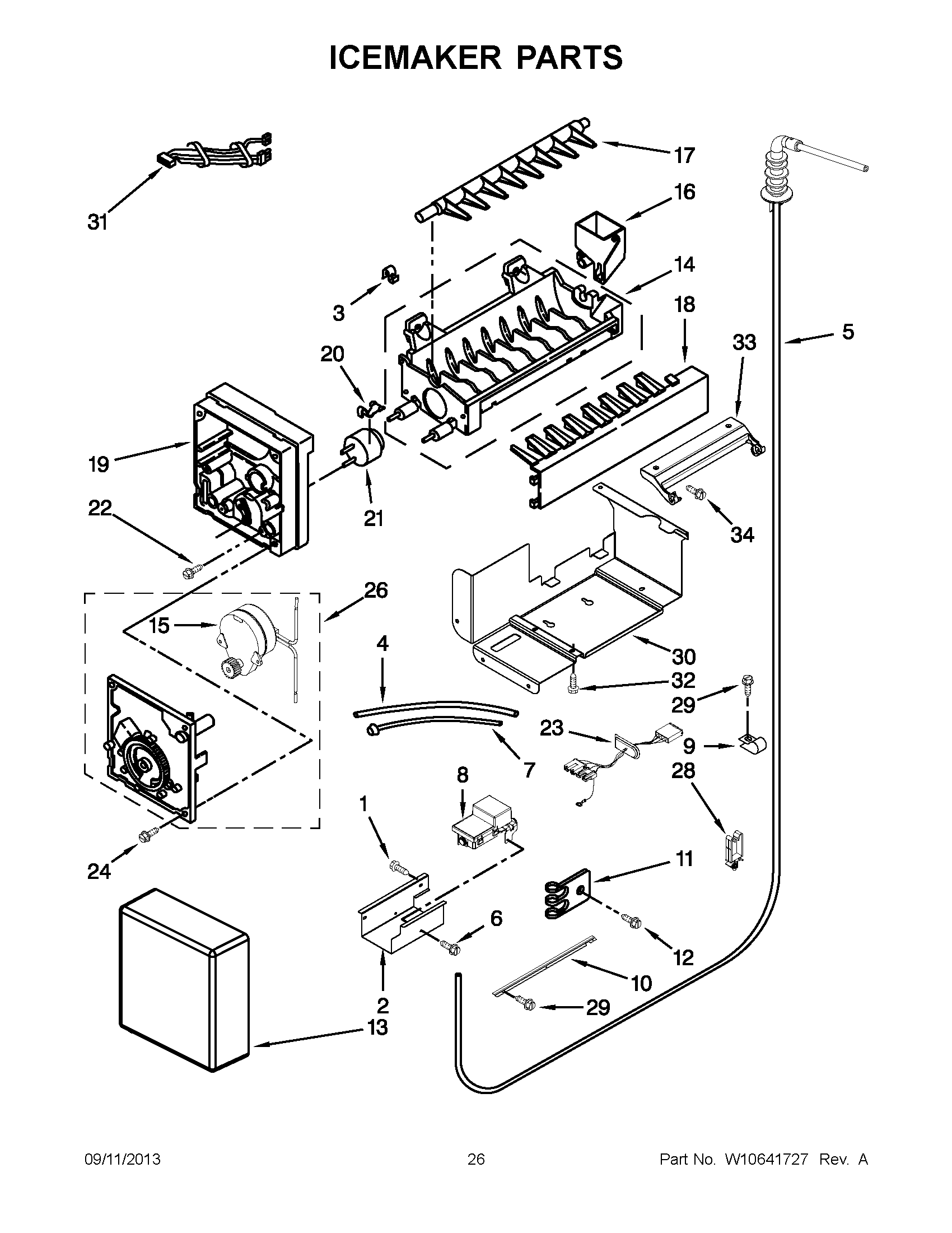

JS42PPDUDB16 14 – ICEMAKER PARTS

Products

Position	Product
NI	ACCESSORY PARTS, CLEANER, KITCHEN & APPLIANCE
NI	ACCESSORIES, WIPES, STAINLESS STEEL CLEANING
NI	LINER (NOT A SERVICEABLE PART)
NI	ACCESSORY PARTS, CLEANER, STAINLESS STEEL
1	Screw
2	Shield, Valve
3	Clip
4	MAY W10296807
5	MAY W10357286
6	Screw, Ground
7	MAY W10437853
8	Valve, Solenoid
9	MAY 2221070
10	MAY 2320559
11	Clip, Tube
12	MAY W10141645
13	COVER
14	MAY W10122527
16	MAY W10272168
17	MAY 627843
18	STRIPPER, ICE
19	MAY 2194712
20	MAY 2315522
21	MAY W10290336
22	Screw (2)
23	WIRE ASSEMBLY, SMART VALVE
24	MAY 489276
26	MODULE ASSEMBLY (INCLUDES ITEM 24)
28	Wire Clip (5)
29	SCREW
30	MAY 2252228
31	MAY W10508659
32	MAY W10001250
33	Bracket, Ice Maker Cover
34	SCREW
100	MAY W10277448
