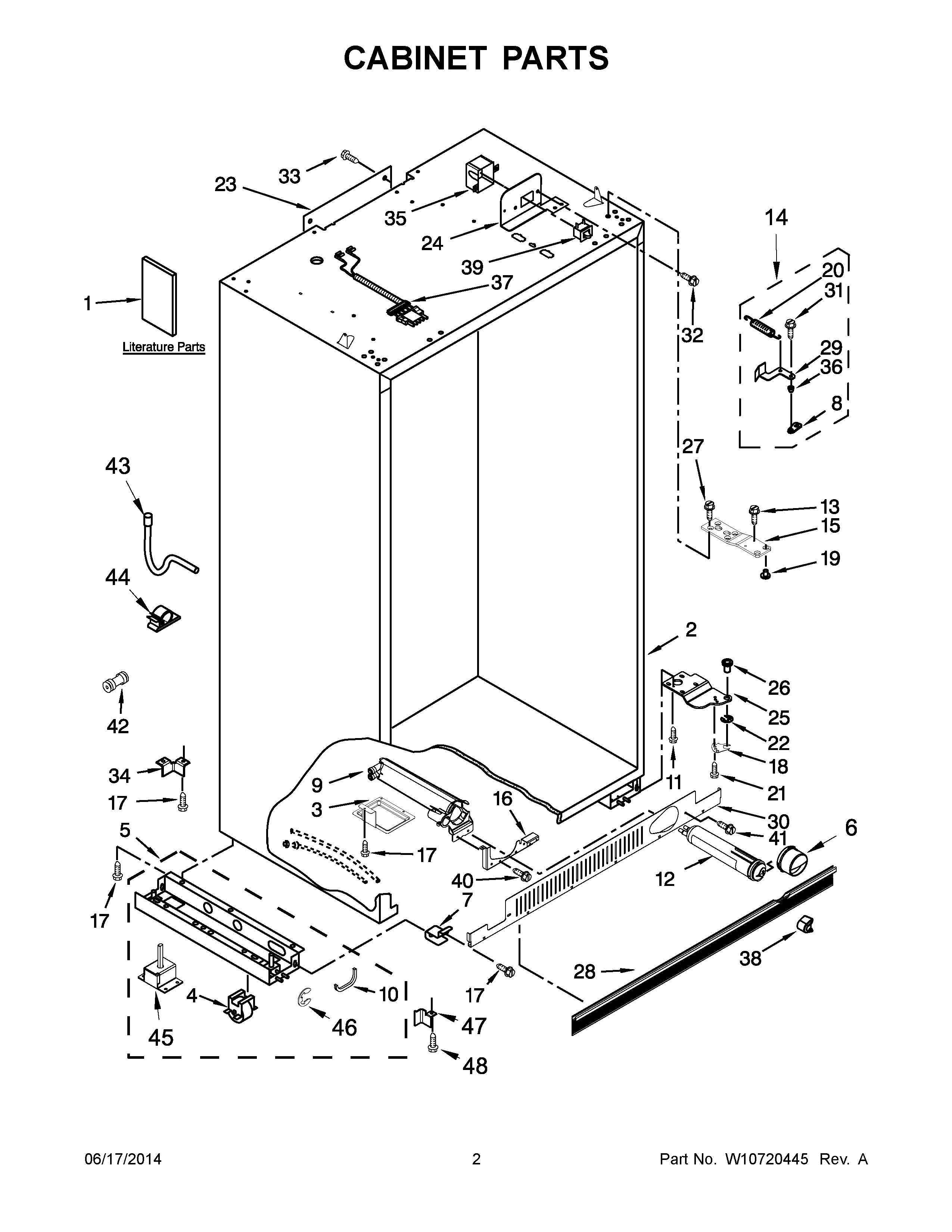

JS42PPDUDB20 02 – CABINET PARTS

Products

Position	Product
1	MAY W10469184
1	MAY W10483315
1	MAY W10703422
1	MAY 2306424
1	MAY W10681397
1	MAY W10681453
2	LINER (NOT A SERVICEABLE PART)
3	Tray, Drip Filter
4	MAY W10138054
5	SUPPORT, LEVELER ASSEMBLY (RIGHT HAND)
5	SUPPORT, LEVELER ASSEMBLY (LEFT HAND)
6	MAY 2260518B
7	Mounting Stud, Grille
8	MAY 2320509
9	MAY W10121140
10	GROMMET, CROSSOVERTUBE
11	MAY 3400525
12	Filter, Water
13	MAY 8281164
14	ASSEMBLY, LIGHT SWITCH CAM (RIGHT HAND)
14	ASSEMBLY, LIGHT SWITCH CAM (LEFT HAND)
15	Hinge (Top)
16	MAY W10674648
17	MAY W10001250
18	Lock, Adjustable Bushing
19	MAY W10484913
20	Spring, Door Closure (Right Side)
21	Screw, Door Stop
22	Retaining Ring, Adjustable Bushing
23	Cover, Rear
24	MAY 2221097
24	MAY 2221096
25	HINGE, BOTTOM (FREEZER)
25	HINGE, BOTTOM (REFRIGERATOR)
26	MAY 2302876
27	Screw 1/4-20 x 5/8
28	Skirt-Grille, Bottom
29	EXTENSION ARM, DOOR CLOSER (RIGHT HAND)
29	EXTENSION ARM, DOOR CLOSER (LEFT HAND)
30	Grille Bottom, Front
31	MAY W10485630
32	Screw
33	SCREW
34	Bracket, Support Base (Rear) (2)
35	Cover, Switch (2)
36	MAY 2316859
37	ASSEMBLY, RC WIRE
38	Button, Filter (Black)
39	MAY 1118894
39	Switch, Rocker Arm
40	Screw
41	MAY W10005050
42	CONNECTOR, UNION
43	MAY 2314064
44	CLIP
45	LEVELER ASSY
46	Ring, Retainer
47	Bracket, Support Base (Front) (Right)
47	Bracket, Support Base (Front) (Left)
48	SCREW
