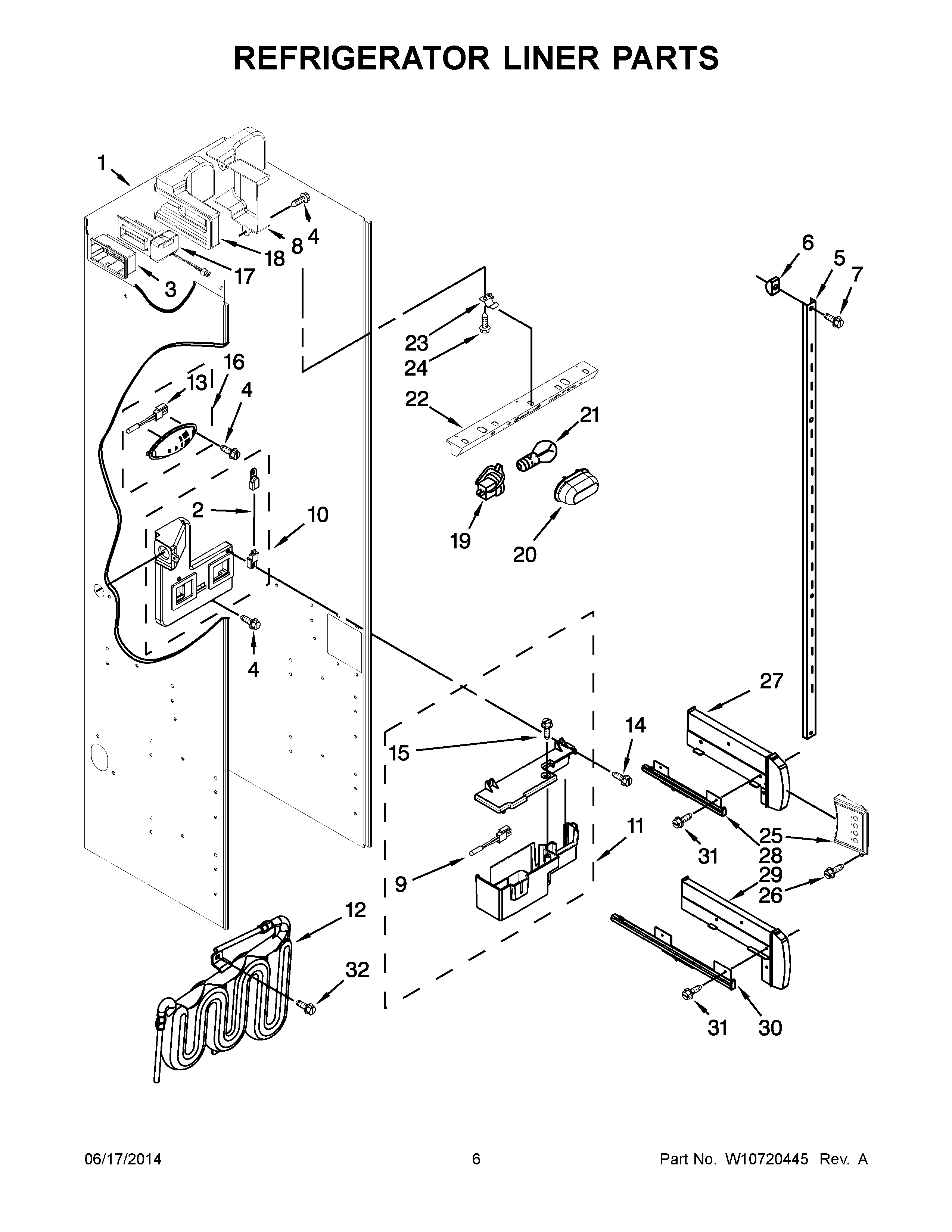

JS42PPDUDB20 04 – REFRIGERATOR LINER PARTS

Products

Position	Product
1	LINER (NOT A SERVICEABLE PART)
2	MAY 2306010
3	Air Duct
4	SCREW
5	Ladder, Shelf (2)
6	Screw Support, Ladder (8)
7	SCREW
8	Cover, Diffuser
9	MAY 2302937
10	MAY W10475010
11	MAY W10604726
12	RESERVOIR, WATER
13	MAY 2188820
15	SCREW
16	ASSEMBLY, THERMISTOR
17	Air Baffle Assembly
18	Diffuser Assembly
19	MAY W10191429
20	Light Shield
21	Bulb, Light
22	MAY W10691180
23	MAY 2317000
24	Screw
25	MAY W10604725
26	SCREW (WHITE)
27	Spacer, Meat Pan (Left Side)
27	Spacer, Meat Pan (Right Side)
28	MAY W10714541
28	Slide, Meat Pan (Left Side)
29	Spacer, Crisper (Left Side (2))
29	Spacer, Crisper (Right Side (2))
30	Slide, Crisper (Left Side)
30	MAY W10714543
31	Screw
31	Screw (Right Side- (8-18 x 1.375))
32	SCREW 8-15 X 3/4
