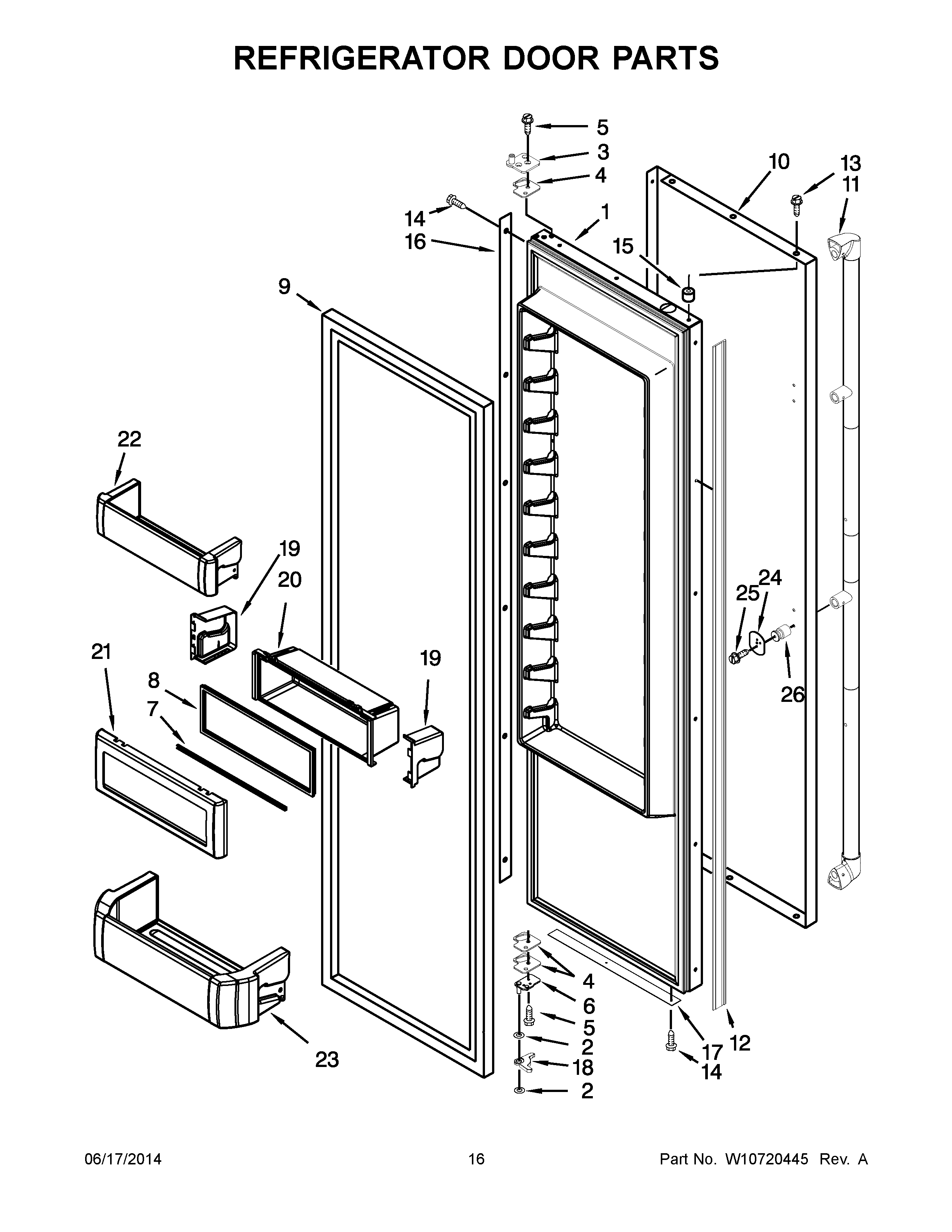

JS42PPDUDB20 09 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	DOOR ASSEMBLY, REFRIGERATOR
2	WASHER
3	ASSEMBLY, TOP HINGE
4	Spacer-Door, Top & Bottom
5	MAY W10162602
6	Hinge Assembly, Bottom
7	MAY 2222796
8	MAY 2222982
9	MAY W10694211
10	MAY W10523732
11	Handle, Door
12	SPACER, DOOR-SKIN (HANDLE SIDE)
13	SCREW
14	Screw, 8-15 x .500 (Stainless Steel)
15	Spacer, Door-Skin (Top)
16	SPACER, DOOR
17	Spacer, Door-Skin (Bottom)
18	MAY W10482554
19	END CAP (RIGHT HAND)
19	END CAP (LEFT HAND)
20	BIN, UTILITY CENTER
21	MAY 2257616
22	BIN, DOOR-SHALLOW
23	SHELF, DOOR (GALLON)
24	MAY W10127710
25	Screw
26	STUD, HANDLE MOUNTING
