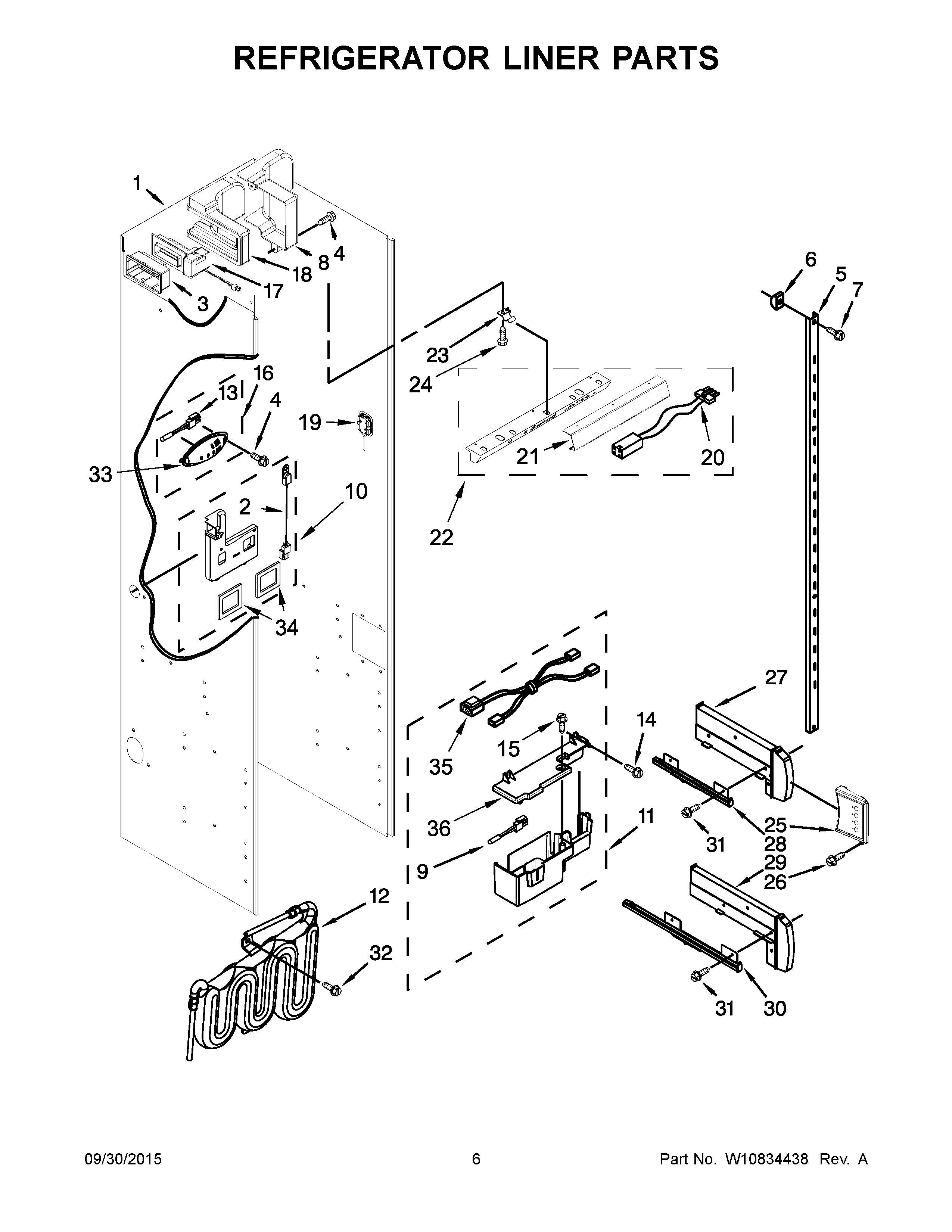

JS42PPDUDE00 04 – REFRIGERATOR LINER PARTS

Products

Position	Product
1	LINER (NOT A SERVICEABLE PART)
2	MAY 2306010
3	Air Duct
4	SCREW (BLACK)
5A	LADDER (SHORT)
5	LADDER (LONG)
6	Support, Screw
7	MAY W10745668
8	COVER, AIR DIFFUSER
9	MAY 2302937
10	ASSEMBLY, SPACER
11	ASSEMBLY, CONTROL BAFFLE
12	RESERVOIR, WATER
13	MAY 2188820
14	SCREW (BLACK)
15	SCREW
16	ASSEMBLY, THERMISTOR
17	Air Baffle Assembly
18	ASSEMBLY, AIR DIFFUSER
19	MAY W10607479
20	WIRE, JUMPER
21	BRACKET, CONTROL BOX
22	ASSEMBLY, CONTROL BOX
23	MAY 2317000
24	Screw
25	BOARD, INGREDIENT CARE CENTER DISPLAY
26	SCREW (BLACK)
27	SPACER, MEAT PAN
28	MAY W10794953
28A	SLIDE, MEAT PAN (RIGHT HAND)
29	SPACER, CRISPER
30A	SLIDE, CRISPER (RIGHT HAND)
30	MAY W10794952
31	Screw
32	SCREW 8-15 X 3/4
33	COVER, THERMISTOR
34	Seal, Air Duct (Square Hole)
35	Jumper, Air Baffle
36	LID, BAFFLE
