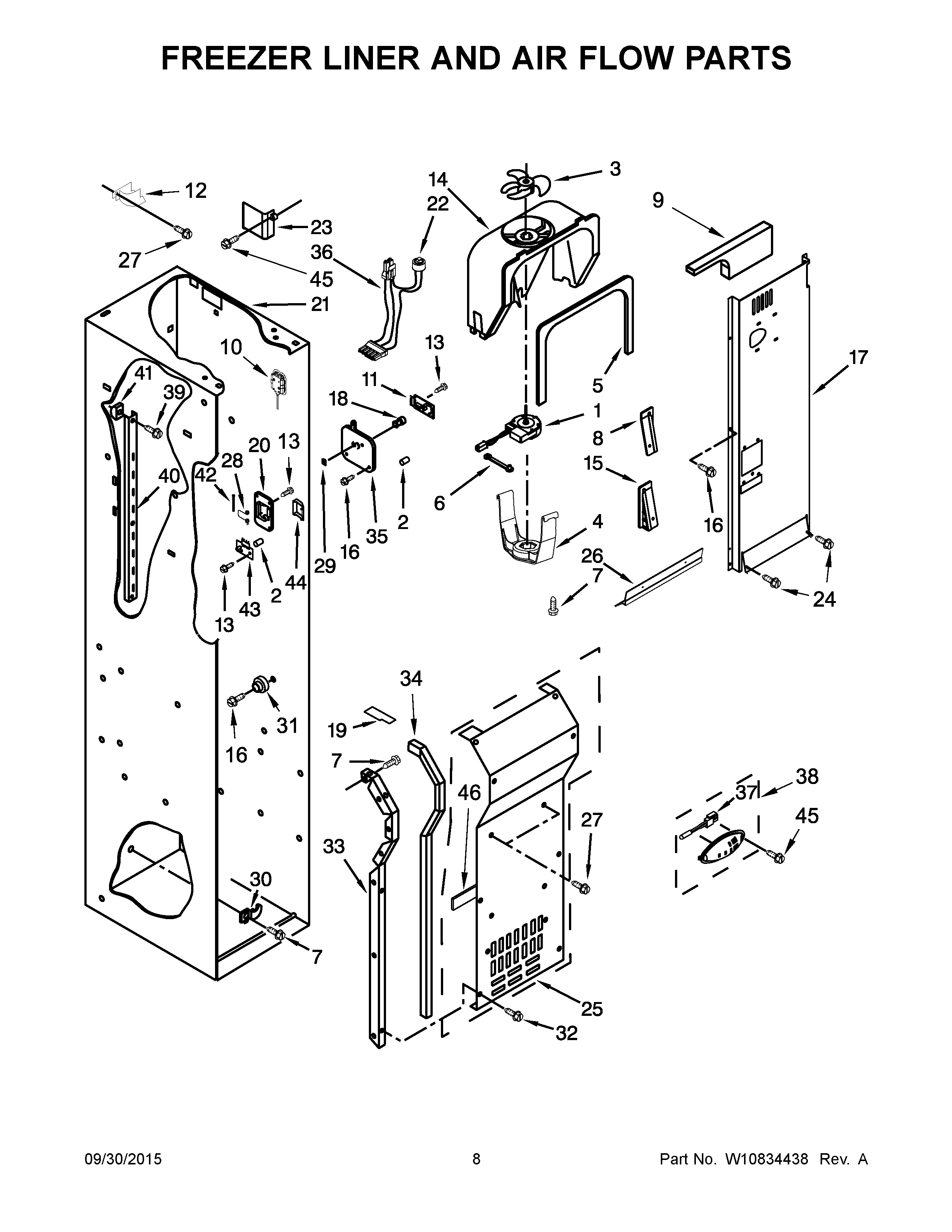

JS42PPDUDE00 05 – FREEZER LINER AND AIR FLOW PARTS

Products

PositionProduct
1MAY W10436861
2MAY 2198665
3Blade, Fan (Evaporator)
4MAY W10260421
5Gasket, Cover
6MAY W10321090
7SCREW
8WEDGE, AIR DUCT (RIGHT HAND)
9MAY W10791184
10MAY W10607479
11MAY W10290817
12GUARD, AIR RETURN
13Screw (2)
14Fan Scroll
15WEDGE, AIR DUCT (LEFT HAND)
16SCREW (BLACK)
17DUCT, AIR
18MAY 2198643
19ABlock, Fan Scroll (Right)
19Block, Fan Scroll (Left)
20COVER, EMITTER
21LINER (NOT A SERVICEABLE PART)
22Defrost, Bi-Metal
23COVER, AIR OUTLET
24SCREW (BLACK)
25ASSEMBLY, EVAPORATOR COVER
26SUPPORT, AIR DUCT
27SCREW (BLACK)
28SPRING, DOOR
29SLIDE, ICEMAKER SHUT OFF
30MAY 1112260
31ASSEMBLY, SHELF STUD (INCLUDES SCREW)
32Screw
33AEvaporator, Cover Rail (Right Side)
33Evaporator, Cover Rail (Left Side)
34GASKET, EVAPORATOR COVER
35COVER, RECEIVER
36MAY W10482187
37MAY 2306010
38ASSEMBLY, THERMISTOR
39MAY W10745668
40LADDER, SHELF
41Support, Screw
42PIN, DOOR
43MAY W10193840
44FLIPPER, SHUT OFF
45MAY 1157158
46MAY W10581988
