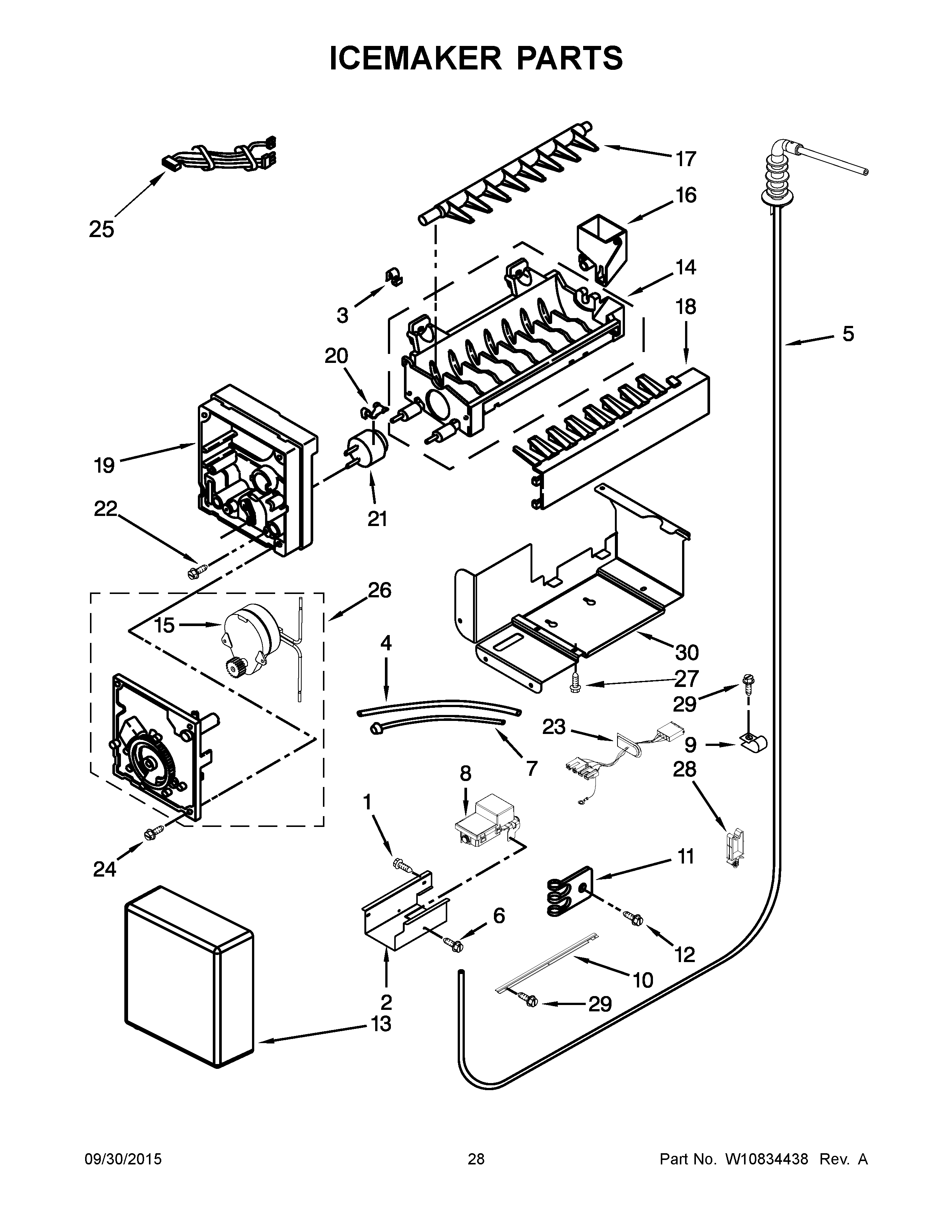

JS42PPDUDE00 15 – ICEMAKER PARTS

Products

Position	Product
NI	ACCESSORY PARTS, CLEANER, KITCHEN & APPLIANCE
NI	LINER (NOT A SERVICEABLE PART)
NI	ACCESSORIES, WIPES, STAINLESS STEEL CLEANING
NI	ACCESSORY PARTS, CLEANER, STAINLESS STEEL
1	Screw
2	Shield, Valve
3	Clip
4	MAY W10296807
5	MAY W10357286
6	Screw, Ground
7	MAY W10683737
8	Valve, Solenoid
9	MAY 2221070
10	MAY 2320559
11	Clip, Tube
12	MAY W10141645
13	COVER, ICEMAKER
14	ASSEMBLY, MOLD AND HEATER (ALSO ORDER 542638)
16	MAY W10788844
17	MAY 627843
18	STRIPPER, ICE
19	SUPPORT, HOUSING
20	MAY 2315522
21	MAY W10290336
22	Screw (2)
23	WIRE ASSEMBLY, SMART VALVE
24	MAY 489276
25	ASSEMBLY, ICEMAKER WIRE
26	MODULE ASSEMBLY (INCLUDES ITEM 24)
27	MAY W10001250
28	Wire Clip (5)
29	SCREW
30	BRACKET, ICEMAKER MOUNTING
100	COMPLETE ICEMAKER ASSEMBLY
