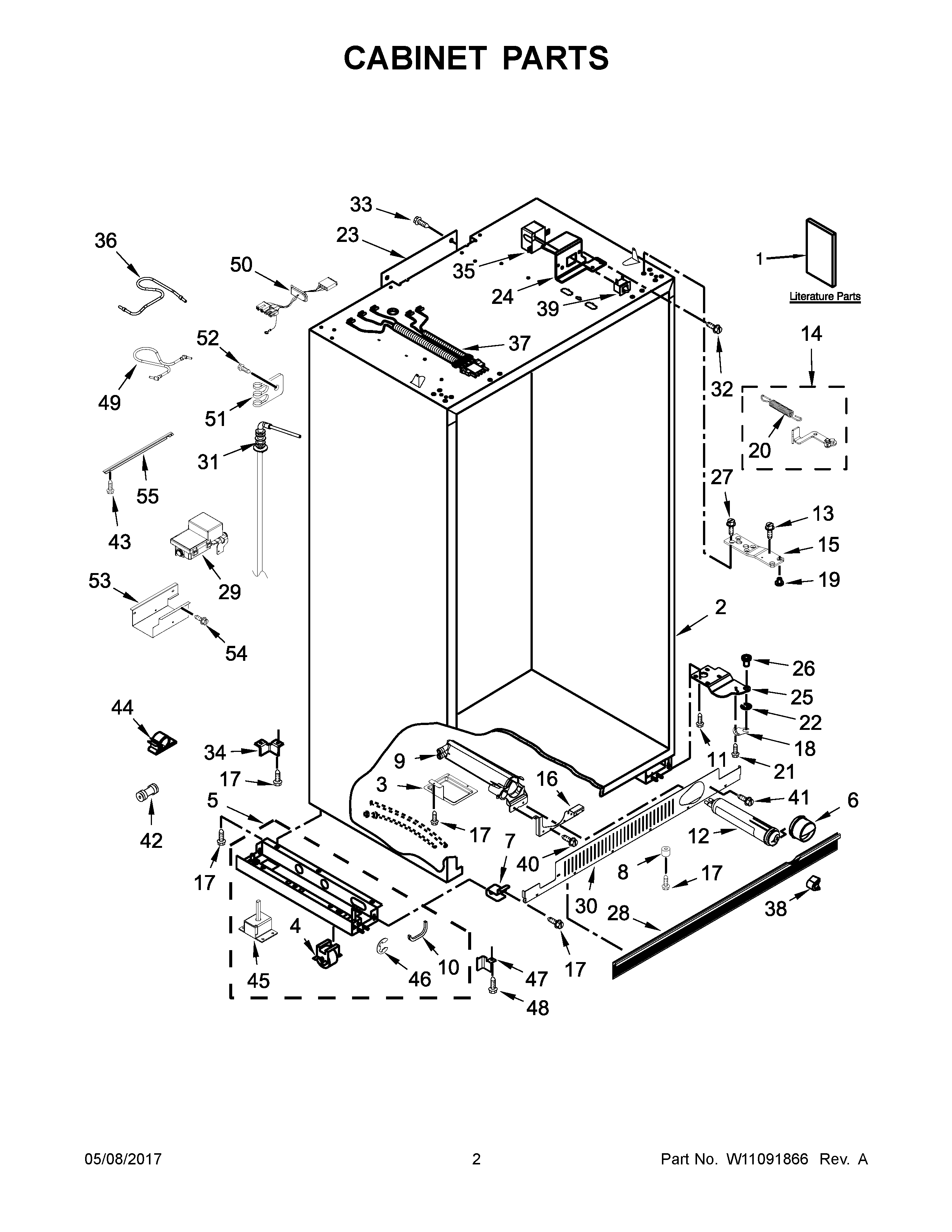

JS42PPDUDE01 02 – CABINET PARTS

Products

Position	Product
1B	INSTALLATION INSTRUCTIONS
1	USE AND CARE GUIDE
1A	ENERGY GUIDE
1C	MAY W10910733
1E	MAY W10762997
1D	MAY W10910734
2	LINER (NOT A SERVICEABLE PART)
3	Tray, Drip Filter
4	MAY W10138054
5A	SUPPORT, LEVELER ASSEMBLY (RIGHT HAND)
5	SUPPORT, LEVELER ASSEMBLY (LEFT HAND)
6	CAP, WATER FILTER (BLACK)
7	Mounting Stud, Grille
8	Spacer, Door-Skin (Top)
9	MAY W10121140
10	GROMMET, CROSSOVERTUBE
11	MAY 3400525
12	Filter, Water
13	MAY 8281164
14A	ASSEMBLY, LIGHT SWITCH CAM (RIGHT HAND)
14	ASSEMBLY, LIGHT SWITCH CAM (LEFT HAND)
15	Hinge (Top)
16	MAY W10674648
17	MAY W10001250
18	Lock, Adjustable Bushing
19	MAY W10484913
20	Spring, Door Closure (Right Side)
21	Screw, Door Stop
22	Retaining Ring, Adjustable Bushing
23	Cover, Rear
24	BRACKET, SWITCH (LEFT HAND)
24A	BRACKET, SWITCH (RIGHT HAND)
25	HINGE, BOTTOM (FREEZER)
25A	HINGE, BOTTOM (REFRIGERATOR)
26	MAY 2302876
27	Screw 1/4-20 x 5/8
28	Skirt-Grille, Bottom
29	VALVE, INLET
30	Grille Bottom, Front
31	MAY W10357286
32	Screw
33	SCREW (BLACK)
34	Bracket, Support Base (Rear) (2)
35	Cover, Switch (2)
36	MAY W10296807
37	ASSEMBLY, SWITCH WIRE
38	Button, Filter (Black)
39	MAY 1118894
39A	Switch, Rocker Arm
40	Screw
41	MAY W10005050
42	CONNECTOR, UNION
43	SCREW
44	CLIP
45	LEVELER ASSY
46	Ring, Retainer
47	Bracket, Support Base (Front) (Left)
47A	Bracket, Support Base (Front) (Right)
48	SCREW
49	MAY W10683737
50	WIRE ASSEMBLY, SMART VALVE
51	Clip, Tube
52	MAY W10141645
53	Shield, Valve
54	Screw, Ground
55	MAY 2320559
