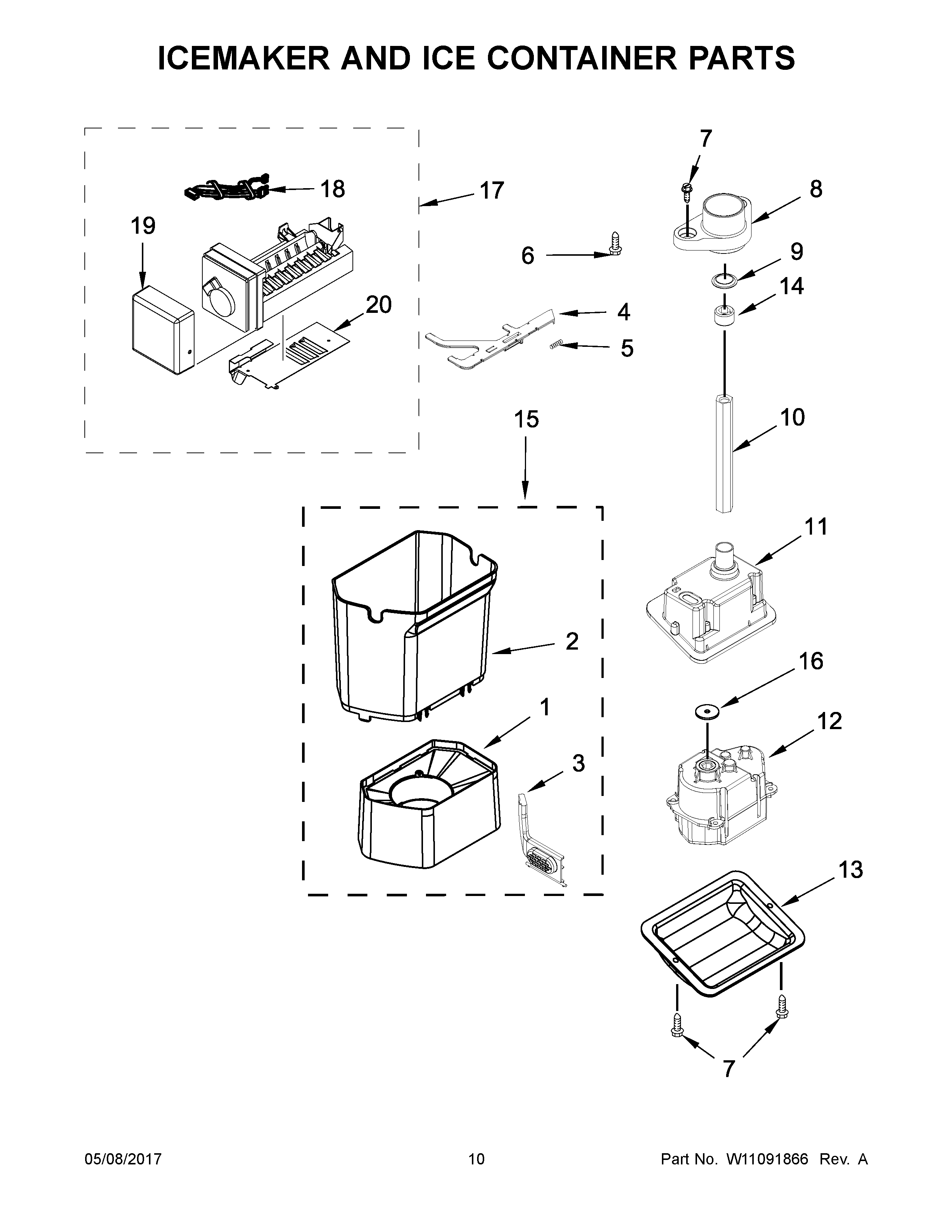

JS42PPDUDE01 06 – ICEMAKER AND ICE CONTAINER PARTS

Products

PositionProduct
1BIN, CRUSHER
2BIN, ICE
3BUTTON, BIN
4LATCH, BIN
5MAY 2198608
6MAY 2198671
7Screw
8CLIP, SHAFT
9MAY 2198628
10Drive Shaft
11ENCLOSURE, MOTOR
12MOTOR, DISPENSER
13COVER, MOTOR
14SLEEVE, COUPLING
15ASSEMBLY, ICE CONTAINER
16WASHER, RUBBER
17COMPLETE ICEMAKER ASSEMBLY
18MAY W10508659
19COVER, ICEMAKER
20BRACKET, ICEMAKER MOUNTING
