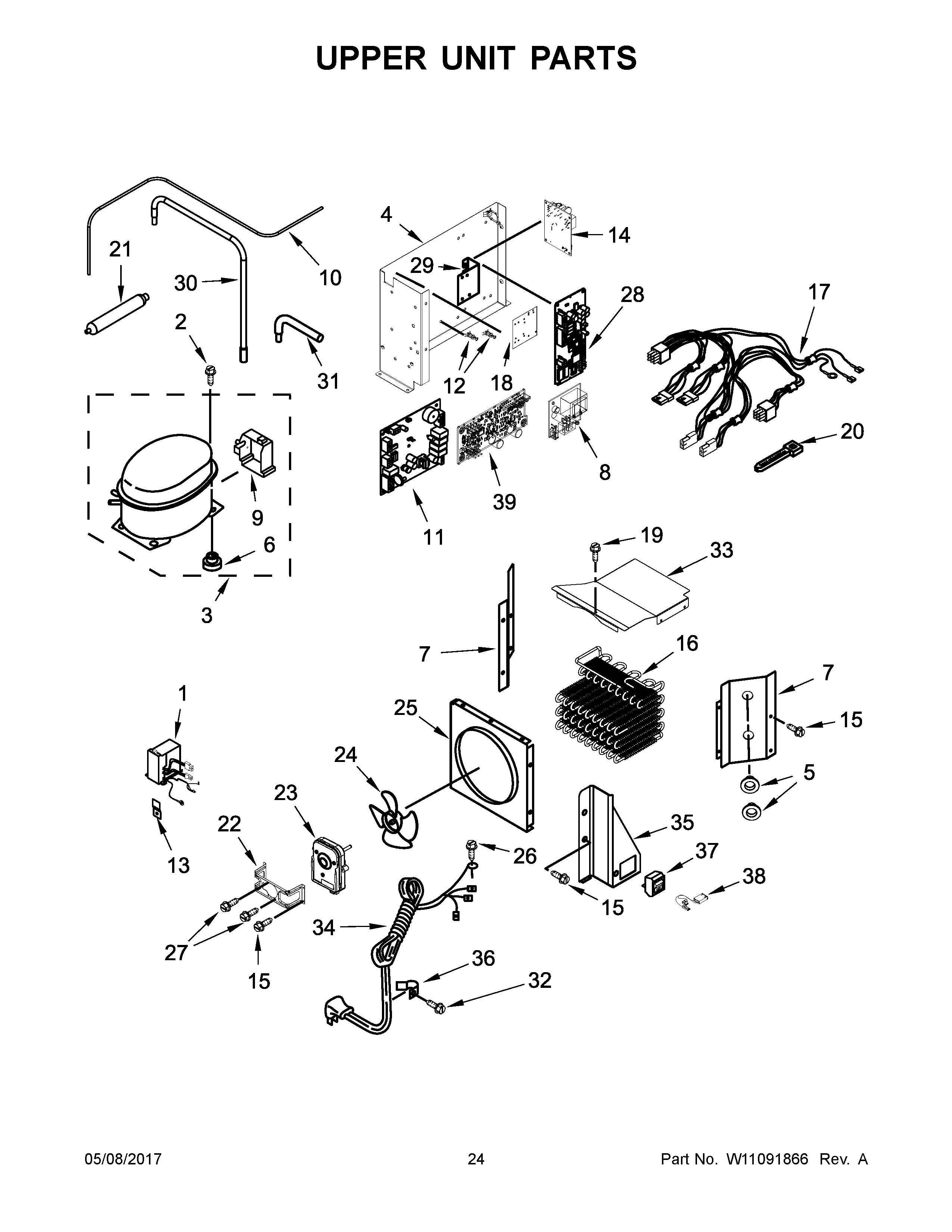

JS42PPDUDE01 13 – UPPER UNIT PARTS

Products

Position	Product
NI	Valve, Access (5/8“)
NI	MAY 876764
NI	VALVE, ACCESS (1/4“)
NI	Valve, Access (5/16“)
NI	VALVE, ACCESS (3/8“)
NI	Valve, Access (1/2“)
NI	LINER (NOT A SERVICEABLE PART)
NI	Valve, Access (3/4“)
1	MAY W10645666
2	MAY 489373
3	MAY W10913755
4	HOUSING, CONTROL BOARD MOUNTING
5	MAY W10587113
6	Grommet (Production)
7	MAY W10525177
7A	MAY W10525179
8	Power Supply, Ingredient Care Center
9	MAY 2215676
10	MAY W10648264
11	Control-Elek, I/O
12	Spacer (5)
13	Bracket, Inverter Box
14	SUPPLY, POWER
15	MAY 1157158
16	MAY W10591457
17	ASSEMBLY, UNIT WIRE
18	PLATE, CIRCUIT BOARD (TOP)
19	Screw 8-32 x 5/16
20	MAY 2155774
21	MAY W10175593
22	BRACKET, FAN MOTOR (CONDENSER FAN)
23	MAY W10527155
24	MAY W10139483
25	MAY W10415670
26	Screw, Ground
27	MAY W10146359
28	Control Board
29	PLATE, CIRCUIT BOARD
30	MAY W10624944
31	MAY W10528578
32	SCREW
33	TOP COVER, CONDENSER
34	Service Cord
35	MAY W10321055
36	MAY 549193
37	Switch, Power Disconnect
38	ASSEMBLY, JUMPER WIRE (POWER SWITCH TO POWER CORD)
39	MAY W10790783
