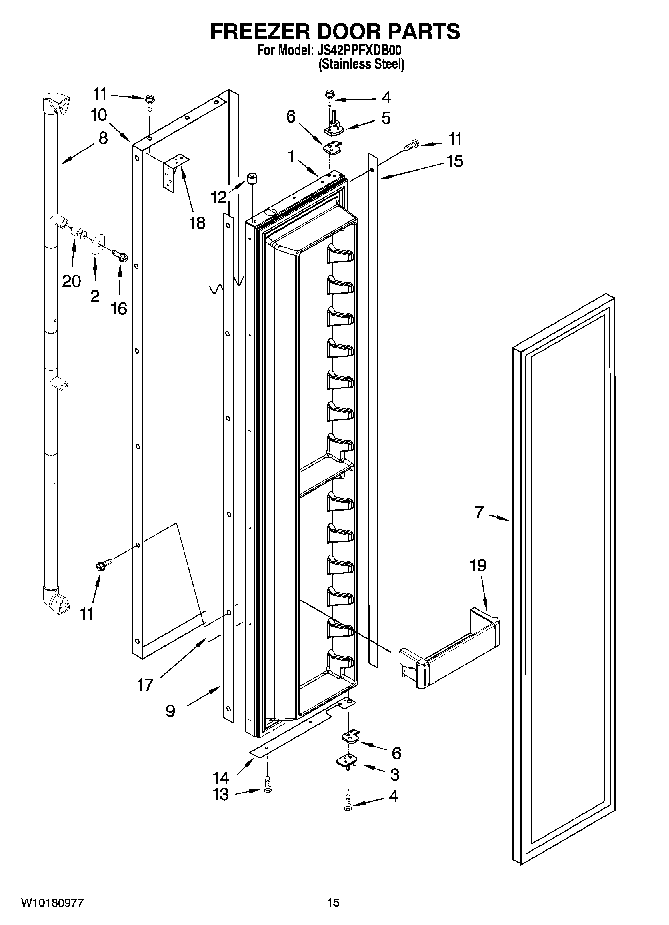

JS42PPFXDB00 10 – FREEZER DOOR PARTS

Products

PositionProduct
1MAY 2252327
2MAY W10127710
3ASSEMBLY, BOTTOM HINGE LEAF
4MAY 489282
5MAY 2266854
6Spacer-Door, Top & Bottom
7MAY 2222814
8Handle, Door
9MAY 2309056
10MAY W10144966
11Screw, 8-15 x .500 (Stainless Steel)
12Spacer, Door-Skin (Top)
13SCREW
14Spacer, Door-Skin (Bottom)
15Spacer, Door-Skin (Hinge Side)
16Screw
17MAY 2005325
18Brace, Door Corner
19Bin, Door (3)
20STUD, HANDLE MOUNTING
