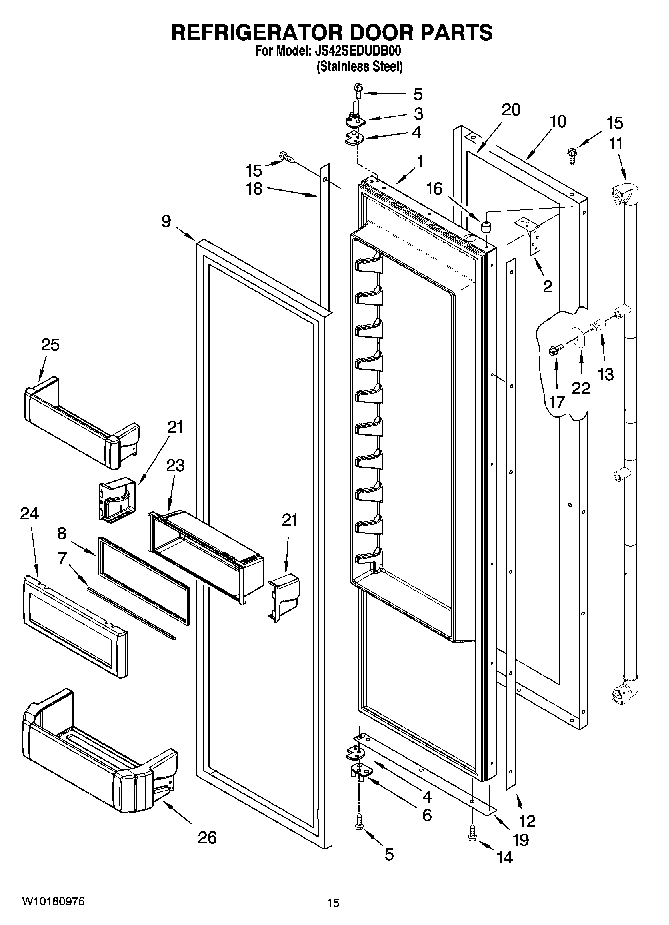

JS42SEDUDB00 10 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1MAY 2252330
2Brace, Door Corner
3MAY 2266854
4Spacer-Door, Top & Bottom
5MAY 489282
6Hinge Assembly, Bottom
7MAY 2222796
8MAY 2222982
9MAY 2222811
10Skin, Door
11MAY 12850908
12SPACER, DOOR-SKIN (HANDLE SIDE)
13STUD, HANDLE MOUNTING
14SCREW
15Screw, 8-15 x .500 (Stainless Steel)
16Spacer, Door-Skin (Top)
17Screw
18Spacer, Door-Skin (Hinge Side)
19Spacer, Door-Skin (Bottom)
20MAY 2005326
21End Cap (Right Side)
21AEnd Cap (Left Side)
22MAY W10127710
23MAY 2222922
24MAY 2257616
25Bin, Door (3)
26Bin, Door
