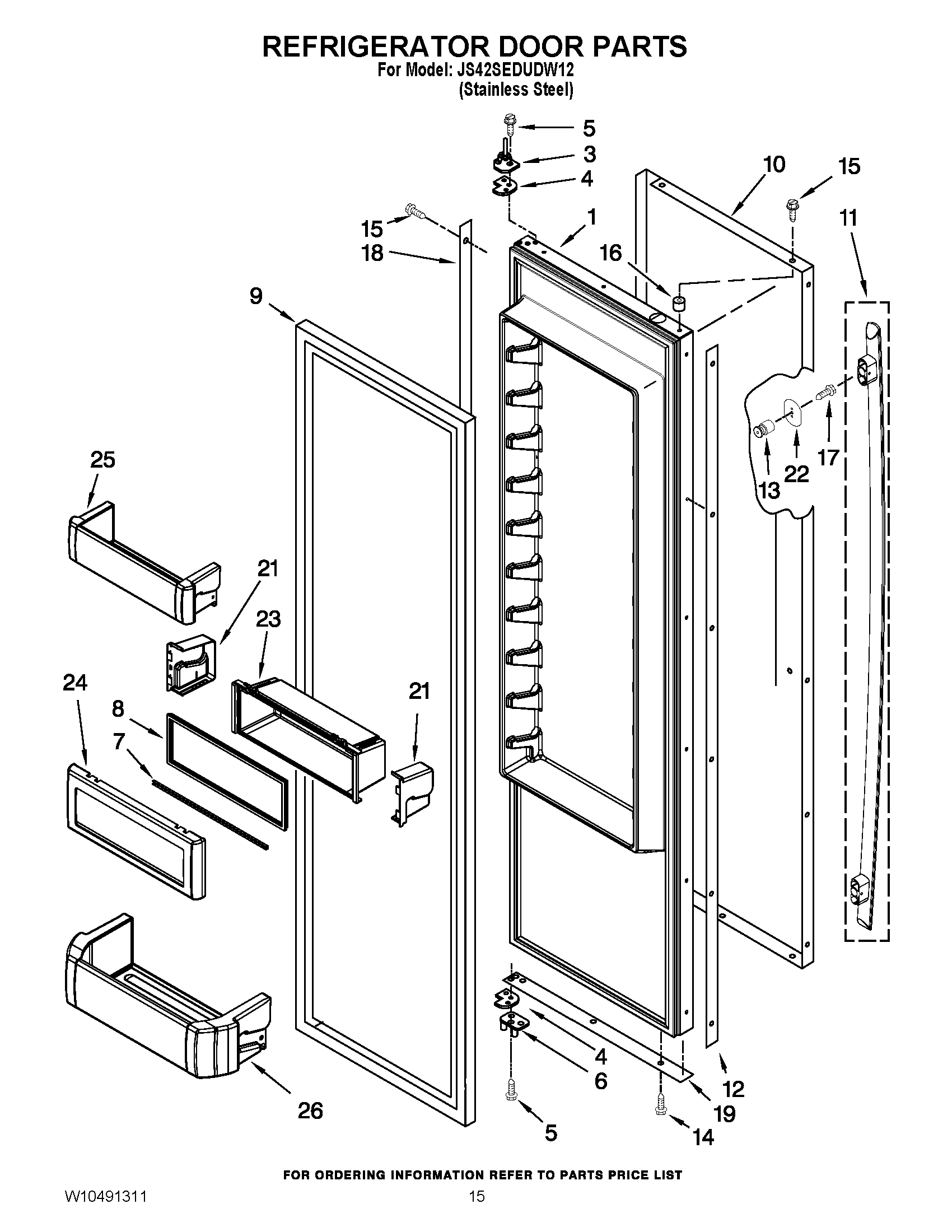

JS42SEDUDW12 10 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	DOOR ASSEMBLY, REFRIGERATOR
3	MAY 2266854
4	Spacer-Door, Top & Bottom
6	Hinge Assembly, Bottom
7	MAY 2222796
8	MAY 2222982
9	MAY 2222811
10	SKIN, DOOR
11	HANDLE, DOOR
12	SPACER, DOOR-SKIN (HANDLE SIDE)
13	MOUNT, HANDLE
14	SCREW
15	Screw, 8-15 x .500 (Stainless Steel)
16	Spacer, Door-Skin (Top)
17	Screw
18	SPACER, DOOR
19	Spacer, Door-Skin (Bottom)
21	END CAP (RIGHT HAND)
21	END CAP (LEFT HAND)
22	MAY W10127710
23	BIN, UTILITY CENTER
24	MAY 2257616
25	BIN, DOOR-SHALLOW
26	SHELF, DOOR (GALLON)
