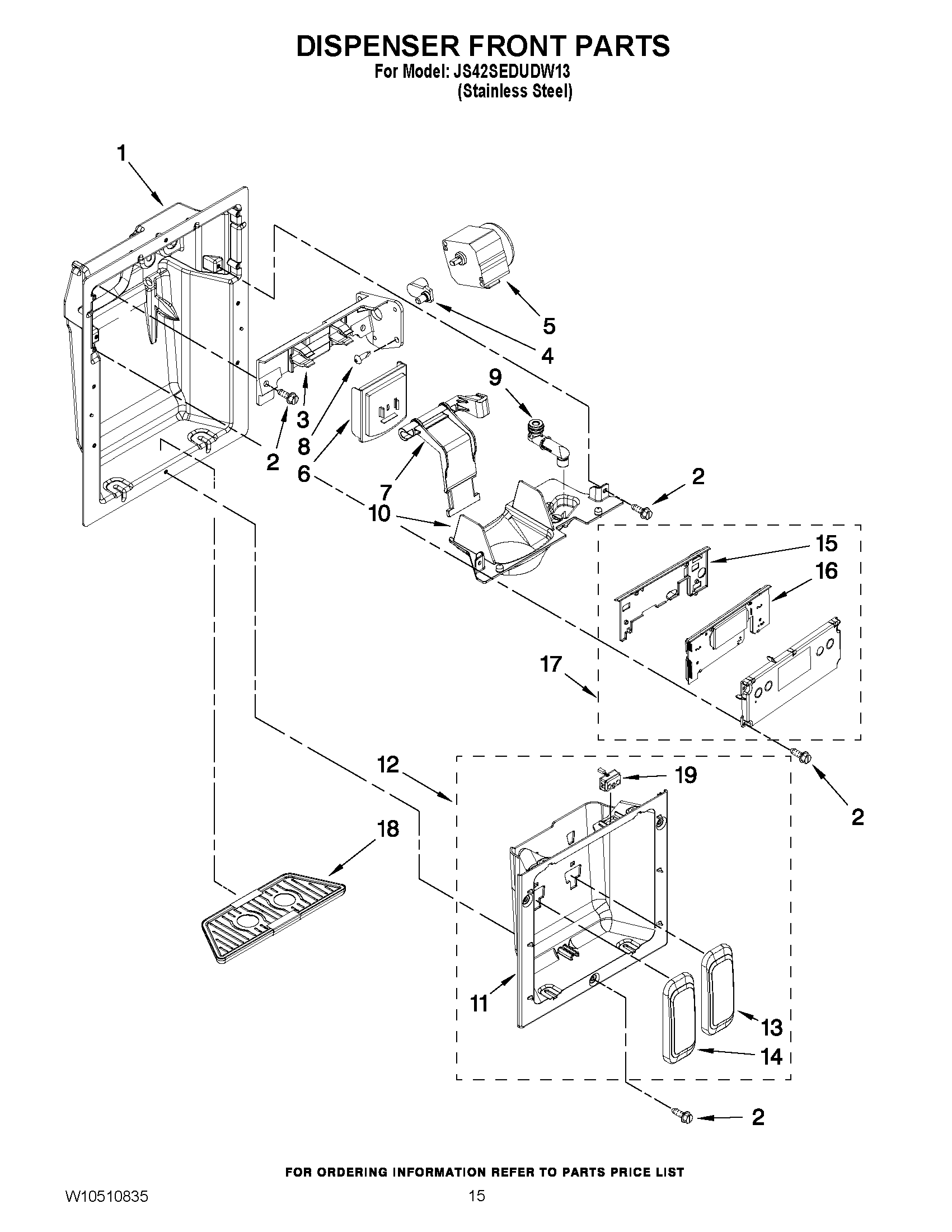

JS42SEDUDW13 10 – DISPENSER FRONT PARTS

Products

PositionProduct
2Screw
3MAY W10132946
4MAY 2305242
5MAY W10205979
6MAY 2180353
7MAY 2318020
8MAY 4449745
9ASSEMBLY, SPIGOT
10Separator Assembly
11LINER (NOT A SERVICEABLE PART)
12HOUSING ASSEMBLY
13Water, Paddle Asy (For Aluminum Model)
14Ice, Paddle Asy (For Aluminum Model)
15Cover, Control
16ASSEMBLY, UI CONTROL COVER
17MAY W10151236
18ASSEMBLY, DRIP TRAY
19LED Assembly
