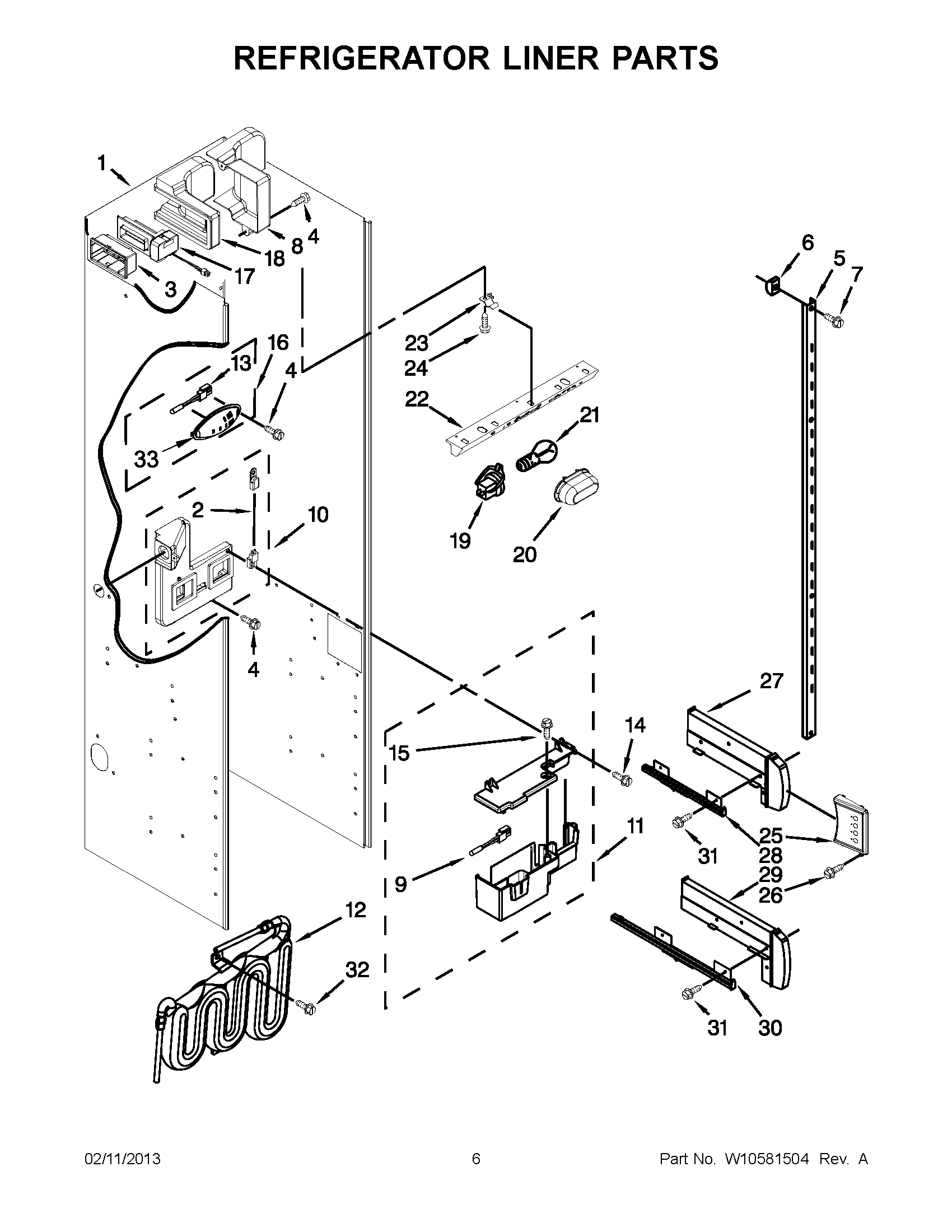

JS42SEDUDW14 03 – REFRIGERATOR LINER PARTS

Products

PositionProduct
1LINER (NOT A SERVICEABLE PART)
2MAY 2306010
3Air Duct
4SCREW
5Ladder, Shelf (2)
6Screw Support, Ladder (8)
7SCREW
8Cover, Diffuser
9MAY 2302937
10MAY W10475010
11Baffle, Control Assembly
12MAY 2327509
13MAY 2188820
15SCREW
16ASSEMBLY, THERMISTOR
17Air Baffle Assembly
18Diffuser Assembly
19MAY W10191429
20Light Shield
21Bulb, Light
22CONTROL BOX ASSEMBLY
23MAY 2317000
24Screw
25MAY W10151210
26SCREW (WHITE)
27Spacer, Meat Pan (Right Side)
27Spacer, Meat Pan (Left Side)
28Slide, Meat Pan (Right Side)
28Slide, Meat Pan (Left Side)
29Spacer, Crisper (Left Side (2))
29Spacer, Crisper (Right Side (2))
30Slide, Crisper (Right Side)
30Slide, Crisper (Left Side)
31Screw
31Screw (Right Side- (8-18 x 1.375))
32SCREW 8-15 X 3/4
33MAY 2317105
