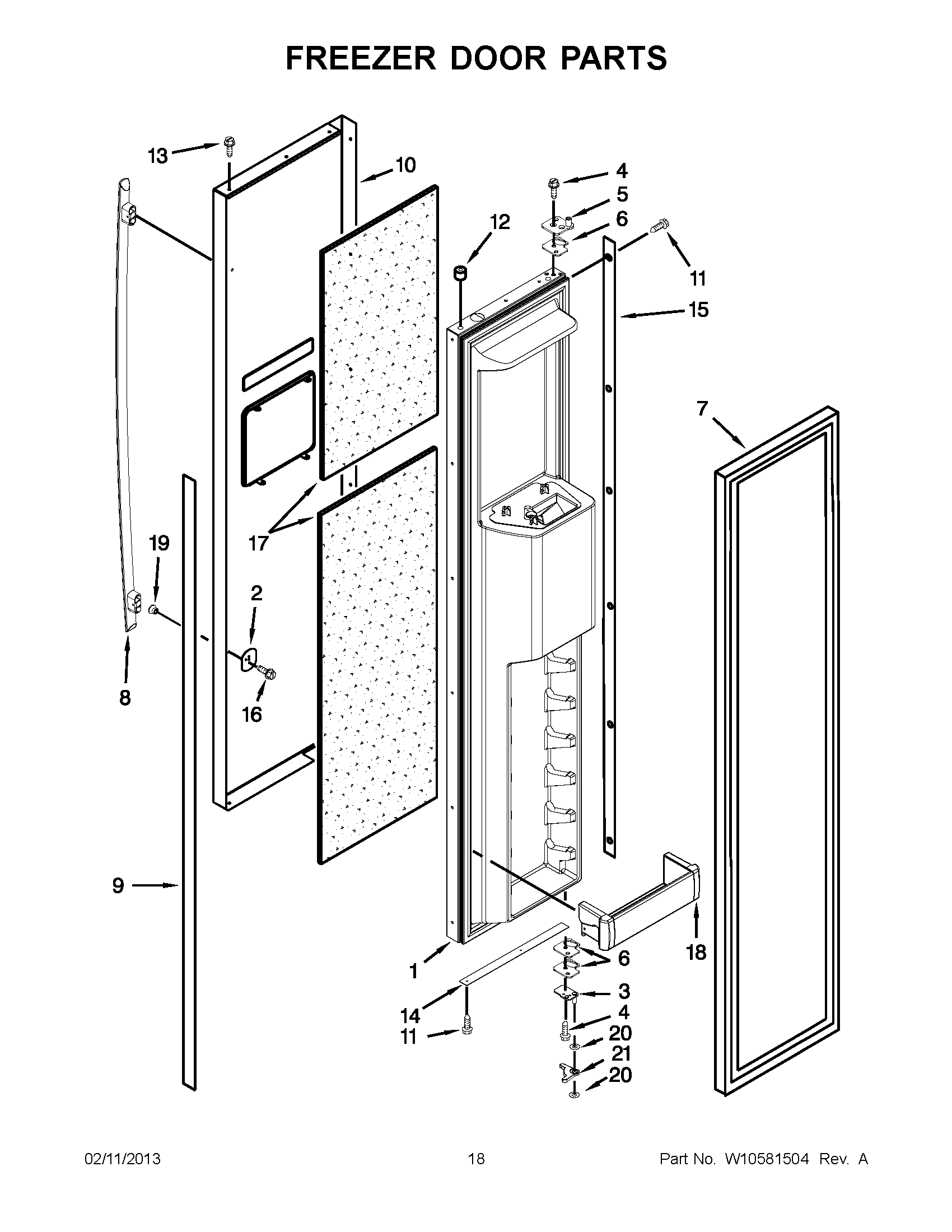

JS42SEDUDW14 09 – FREEZER DOOR PARTS

JS42SEDUDW14 09 – FREEZER DOOR PARTS

Written by

in

JS42SEDUDW14 09 – FREEZER DOOR PARTS

Products

PositionProduct
1MAY W10292432
2MAY W10127710
3ASSEMBLY, BOTTOM HINGE LEAF
4MAY W10162602
5ASSEMBLY, TOP HINGE
6Spacer-Door, Top & Bottom
7MAY 2222814
8HANDLE, DOOR
9SPACER, DOOR-SKIN (HANDLE SIDE)
10MAY W10523752
11Screw, 8-15 x .500 (Stainless Steel)
12Spacer, Door-Skin (Top)
13SCREW
14Spacer, Door-Skin (Bottom)
15SPACER, DOOR
16Screw
17MAY W10159582
17MAY W10159585
18MAY W10323602
19MOUNT, HANDLE
20WASHER
21MAY W10482554
