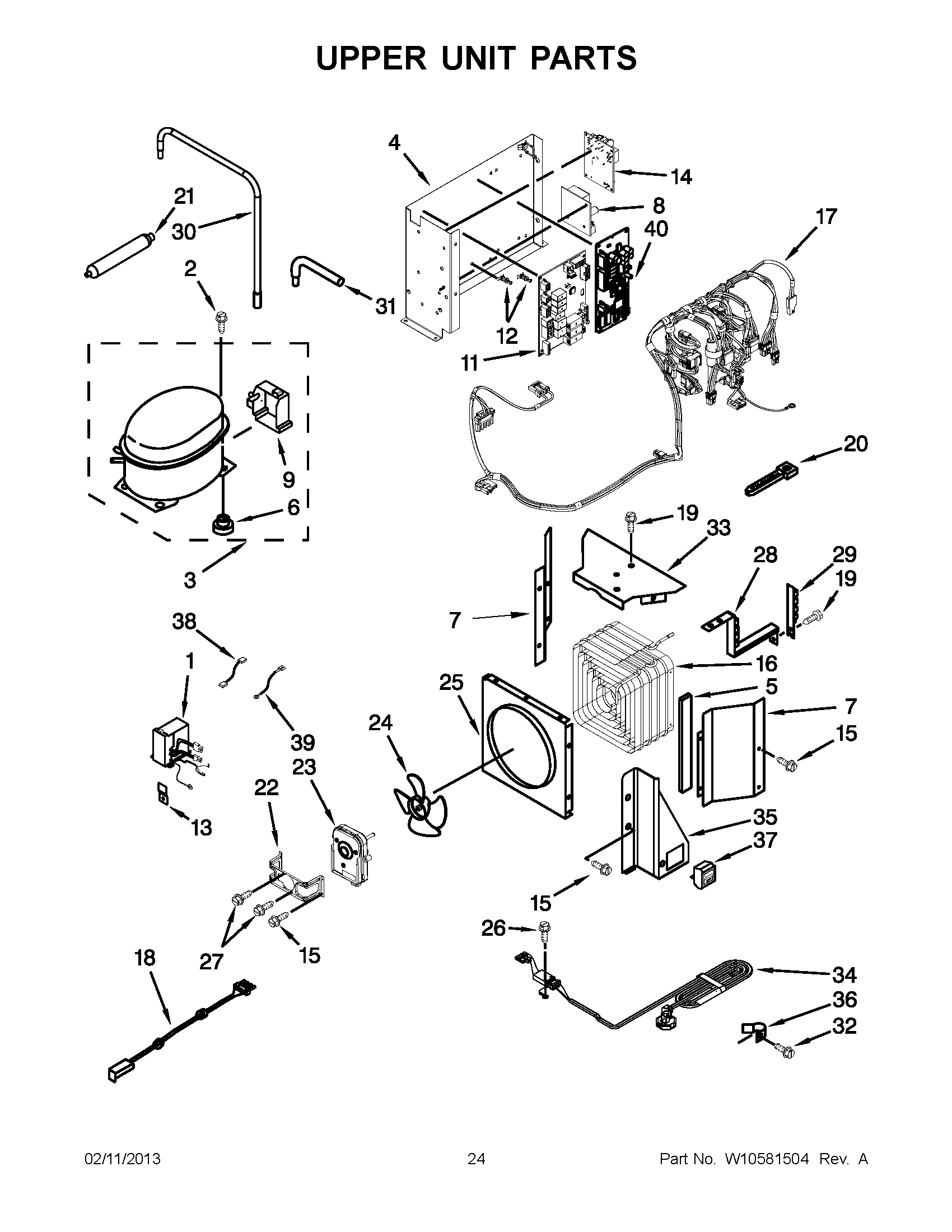

JS42SEDUDW14 12 – UPPER UNIT PARTS

Products

Position	Product
NI	MAY 876764
NI	LINER (NOT A SERVICEABLE PART)
NI	Valve, Access (3/4“)
NI	Valve, Access (5/8“)
NI	Valve, Access (1/2“)
NI	VALVE, ACCESS (3/8“)
NI	Valve, Access (5/16“)
NI	VALVE, ACCESS (1/4“)
1	MAY W10449006
2	MAY 489373
3	MAY W10173296
4	MAY W10321056
5	MAY 2309432
6	Grommet (Production)
7	SUPPORT, CONDENSER (RIGHT HAND)
7	SUPPORT, CONDENSER (LEFT HAND)
8	Power Supply, Ingredient Care Center
9	MAY 2215676
11	BOARD, CONTROL
12	Spacer (5)
13	Bracket, Inverter Box
14	CONTROL, ELECTRONIC
15	MAY 1157158
16	MAY 2307998
17	MAY W10427091
18	MAY 2310207
19	Screw 8-32 x 5/16
20	MAY 2155774
21	MAY W10175593
22	BRACKET, FAN MOTOR (CONDENSER FAN)
23	MAY 2188875
24	MAY W10139483
25	MAY W10415670
26	Screw, Ground
27	MAY 8533993
28	BRACKET, VIBRATION CONDENSER
29	ARM, VIBRATION CONDENSER
30	MAY 2307566
31	MAY 2194319
32	SCREW
33	MAY 2309000
34	MAY 2310251
35	MAY W10321055
36	MAY 549193
37	Switch, Power Disconnect
38	MAY W10483905
39	MAY W10495645
40	Control Board
