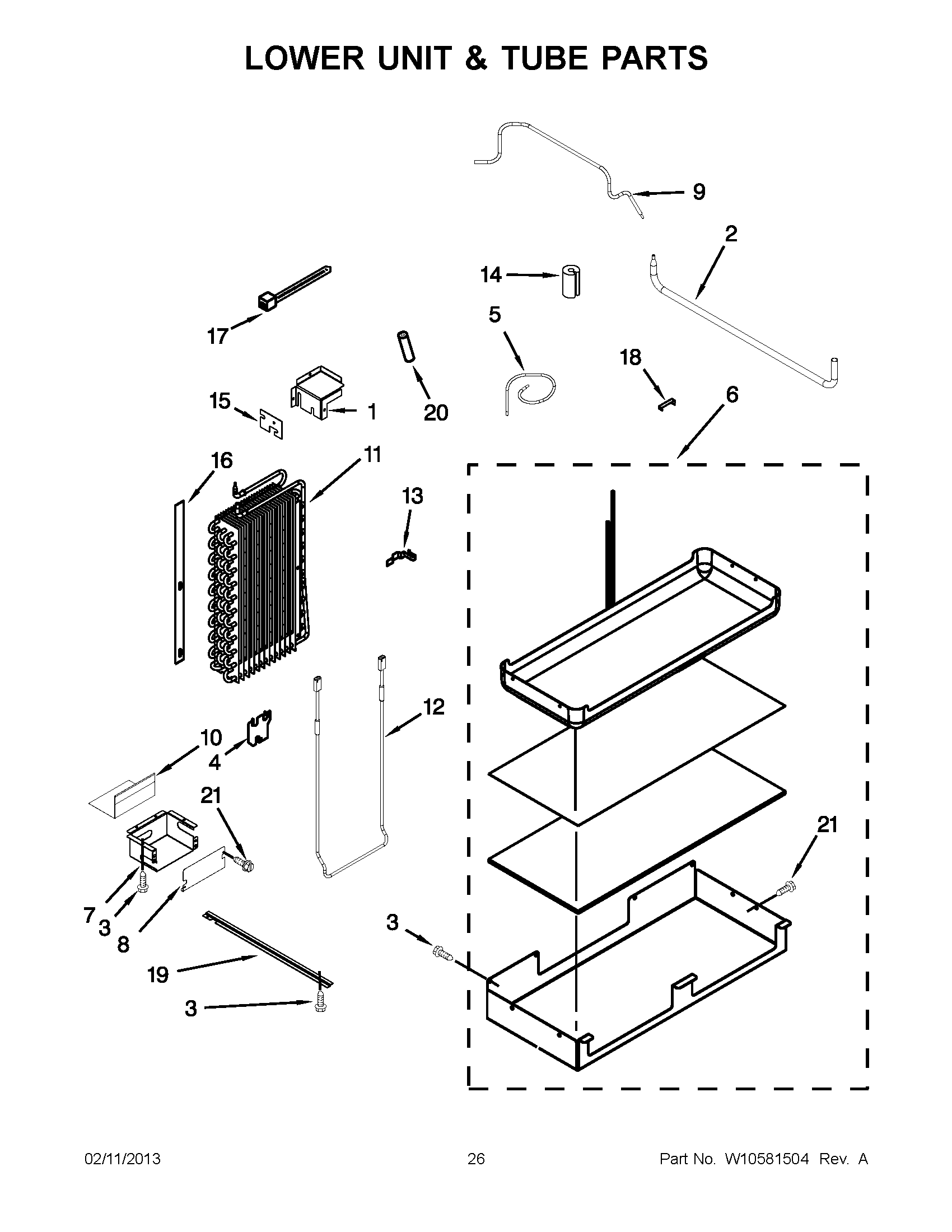

JS42SEDUDW14 13 – LOWER UNIT & TUBE PARTS

Products

Position	Product
1	Bracket Assembly, Air Return
2	TUBE, CONNECT (DRIER/RESTRICTOR)
3	SCREW
4	Bracket
5	TUBE, OIL TRAP SUCTION
6	MAY W10281063
7	MAY W10309012
8	MAY W10321048
9	MAY W10412488
10	MAY W10321050
11	MAY W10427992
12	MAY W10140161
13	MAY 1113048
14	GROMMET, AIR RETURN
15	Cover Seal, Evaporator Tubes
16	MAY W10432308
17	MAY 2155774
18	MAY W10169509
19	MAY 2320554
20	Dampener
21	Screw
