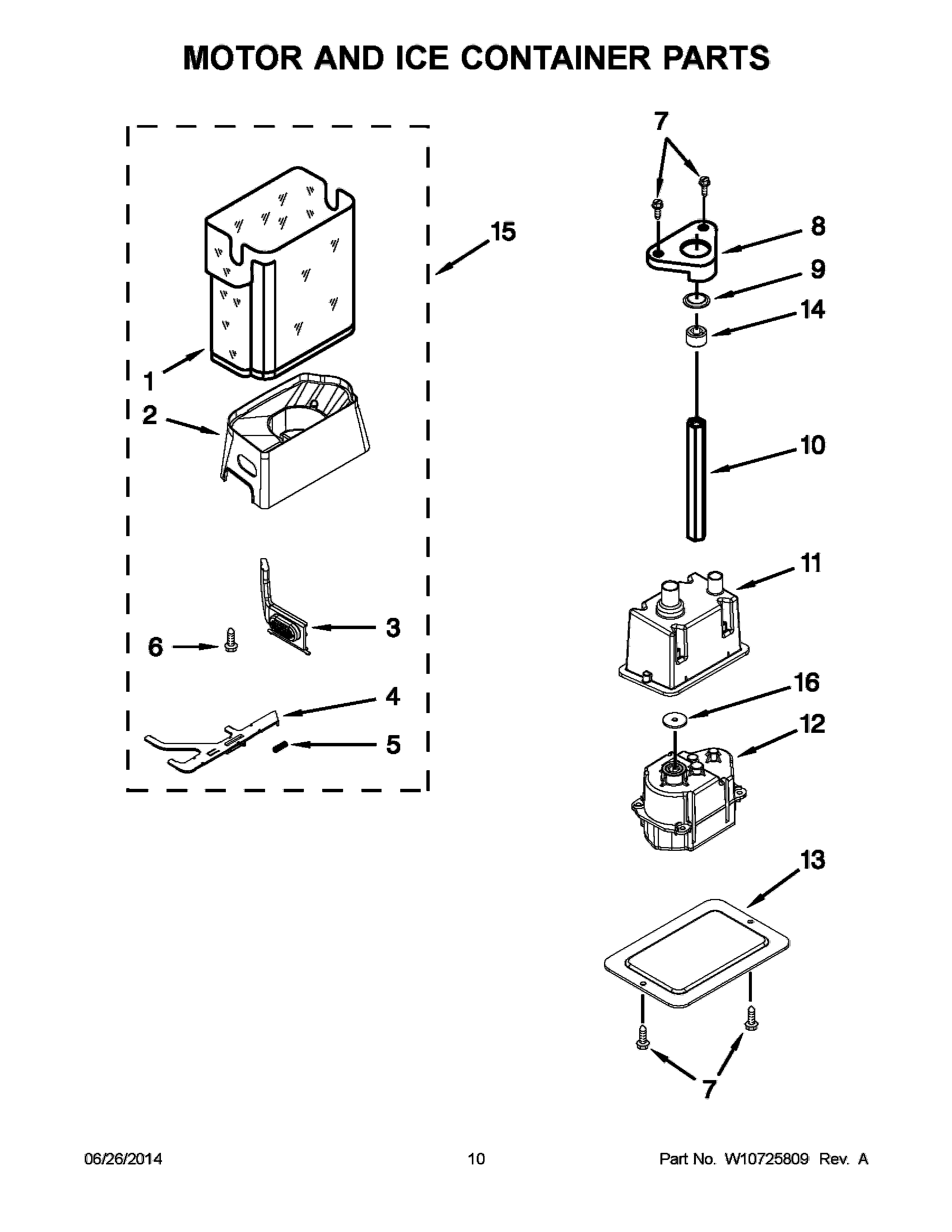

JS42SEDUDW20 06 – MOTOR AND ICE CONTAINER PARTS

Products

PositionProduct
1Ice Bin
2MAY W10151247
3MAY 2266800
4MAY W10134783
5MAY 2198608
6MAY 2198671
7Screw
8MAY 2188919
9MAY 2198628
10Drive Shaft
11MAY 2318011
12MOTOR, DISPENSER
13MAY 2318028
14SLEEVE, COUPLING
15MAY W10395653
16WASHER, RUBBER
