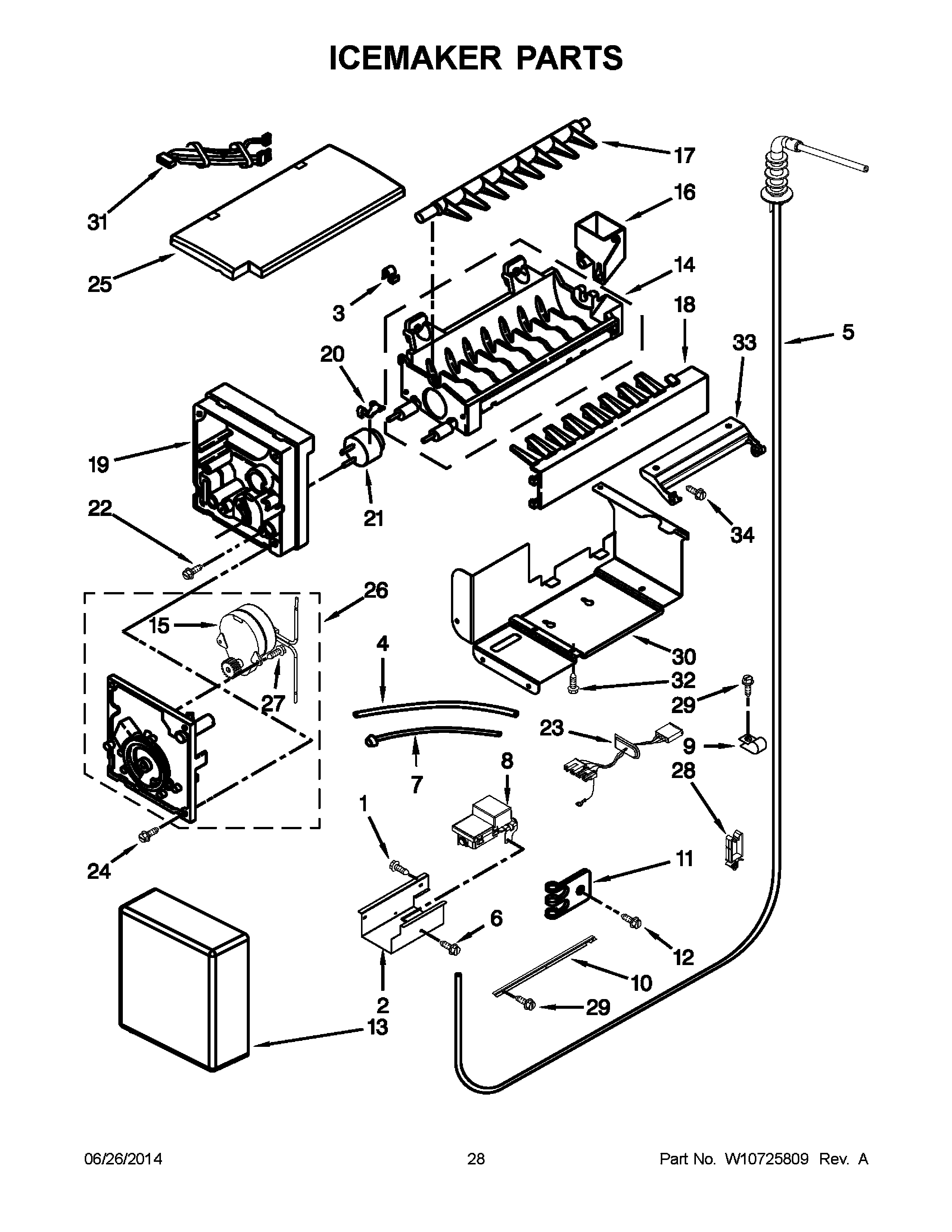

JS42SEDUDW20 15 – ICEMAKER PARTSadmin2025-04-26T09:13:11+00:00JS42SEDUDW20 15 – ICEMAKER PARTS
Products
| Position | Product |
|---|
| NI | ACCESSORY PARTS, CLEANER, KITCHEN & APPLIANCE |
| NI | ACCESSORY PARTS, CLEANER, STAINLESS STEEL |
| NI | LINER (NOT A SERVICEABLE PART) |
| NI | ACCESSORIES, WIPES, STAINLESS STEEL CLEANING |
| 1 | Screw |
| 2 | Shield, Valve |
| 3 | Clip |
| 4 | MAY W10296807 |
| 5 | MAY W10357286 |
| 6 | Screw, Ground |
| 7 | MAY W10437853 |
| 8 | Valve, Solenoid |
| 9 | MAY 2221070 |
| 10 | MAY 2320559 |
| 11 | Clip, Tube |
| 12 | MAY W10141645 |
| 13 | COVER |
| 14 | ASSEMBLY, MOLD AND HEATER (ALSO ORDER 542638) |
| 16 | MAY W10272168 |
| 17 | MAY 627843 |
| 18 | STRIPPER, ICE |
| 19 | MAY 2194712 |
| 20 | MAY 2315522 |
| 21 | MAY W10290336 |
| 22 | Screw (2) |
| 23 | WIRE ASSEMBLY, SMART VALVE |
| 24 | MAY 489276 |
| 25 | MAY W10504753 |
| 26 | MODULE ASSEMBLY (INCLUDES ITEM 24) |
| 27 | MAY 489136 |
| 28 | Wire Clip (5) |
| 29 | SCREW |
| 30 | MAY 2252228 |
| 31 | MAY W10508659 |
| 32 | MAY W10001250 |
| 33 | Bracket, Ice Maker Cover |
| 34 | SCREW |
| 100 | MAY W10277448 |
