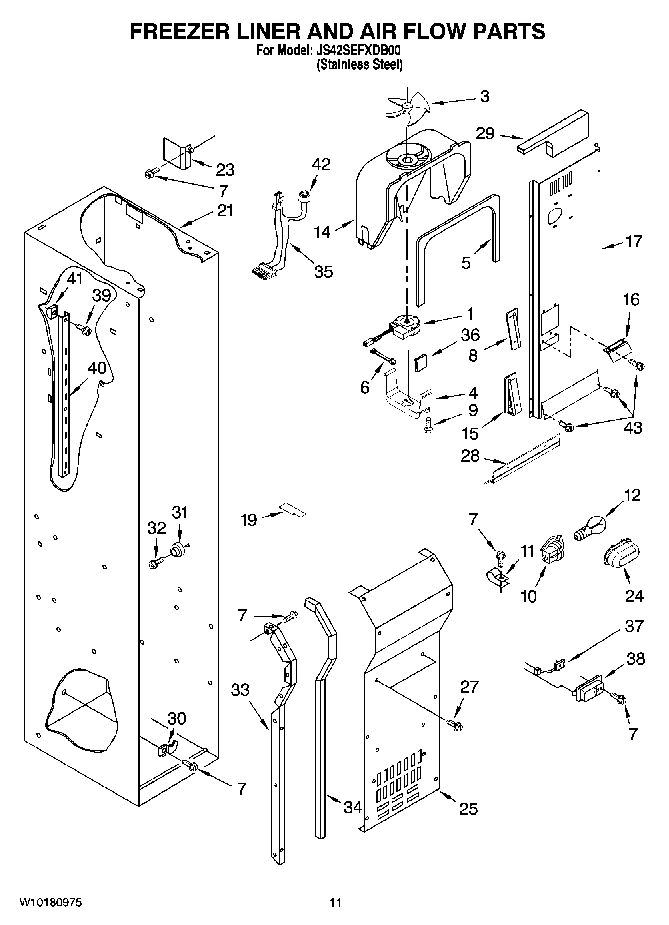

JS42SEFXDB00 08 – FREEZER LINER AND AIR FLOW PARTS

JS42SEFXDB00 08 – FREEZER LINER AND AIR FLOW PARTS

Written by

in

JS42SEFXDB00 08 – FREEZER LINER AND AIR FLOW PARTS

Products

PositionProduct
1MAY 2259385
3Blade, Fan (Evaporator)
4MAY 2223733
5Gasket, Cover
6Grommet
7SCREW
8Wedge, Air Duct
9MAY 488500
10MAY 2223857
11Clamp, Nylon
12Bulb, Light
14Fan Scroll
15Wedge, Air Duct
16Deflector, Air Duct
17Air Duct
19Block, Fan Scroll (Right)
19Block, Fan Scroll (Left)
23MAY 2259025
24Light Shield
25MAY 2314043
27Screw
28MAY 2302850
29MAY 2309283
30MAY 1112260
31MAY 2196483
32MAY 8281158
33Evaporator, Cover Rail (Right Side)
33Evaporator, Cover Rail (Left Side)
34Gasket (2) Evaporator Cover
35MAY W10139189
36MAY 2220241
37MAY 2188820
38MAY 2317105
39SCREW
40MAY 2259032
41Support, Screw
42Defrost, Bi-Metal
43MAY 8281185
