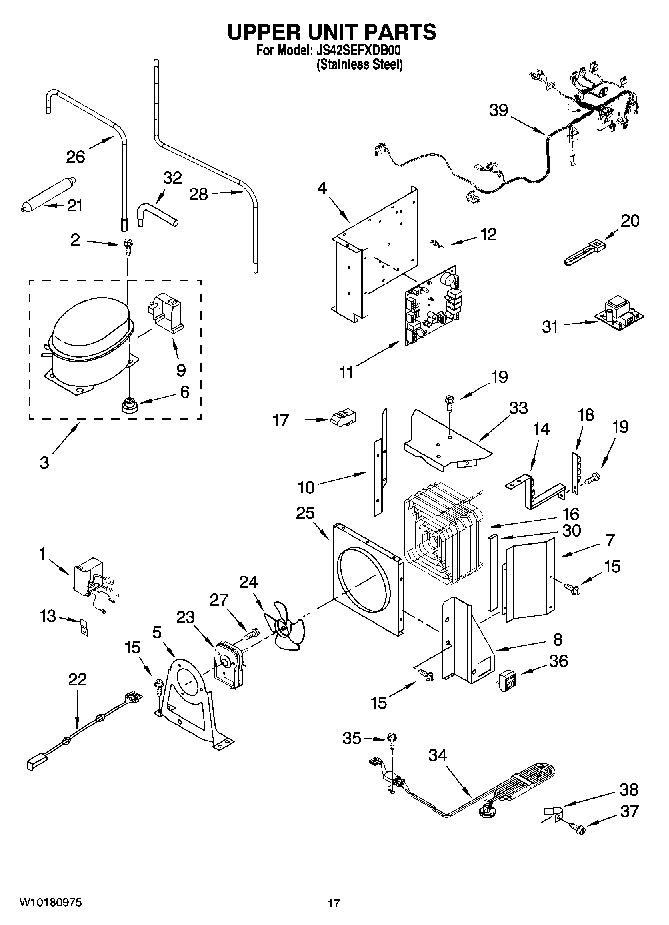

JS42SEFXDB00 11 – UPPER UNIT PARTSadmin2025-04-26T09:13:07+00:00JS42SEFXDB00 11 – UPPER UNIT PARTS
Products
| Position | Product |
|---|
| MAY 876764 |
| Valve, Access (3/4``) |
| Valve, Access (5/8``) |
| Valve, Access (1/2``) |
| VALVE, ACCESS (3/8``) |
| Valve, Access (5/16``) |
| VALVE, ACCESS (1/4``) |
| 1 | MAY W10133449 |
| 2 | MAY 489373 |
| 3 | Compressor (Includes Items 6 & 9)(Also Order 876765 Tube Kit) |
| 4 | MAY 2318087 |
| 5 | Bracket, Fan Motor (Condenser Fan) |
| 6 | Grommet (Production) |
| 7 | Support, Condenser |
| 8 | MAY 2307684 |
| 9 | MAY 2215676 |
| 10 | MAY 2309001 |
| 11 | MAY W10121049 |
| 12 | Spacer (5) |
| 13 | Bracket, Inverter Box |
| 14 | BRACKET, VIBRATION CONDENSER |
| 15 | MAY 1157158 |
| 16 | MAY 2307998 |
| 17 | MAY 2309431 |
| 18 | ARM, VIBRATION CONDENSER |
| 19 | SCREW |
| 20 | MAY 2155774 |
| 21 | MAY 2317982 |
| 22 | MAY 2310207 |
| 23 | MAY 2188875 |
| 24 | MAY W10139483 |
| 25 | MAY 2003169 |
| 26 | MAY 2307566 |
| 27 | MAY 8533993 |
| 28 | Tube, Tranisiton (Cond/Ht Loop) (Right) |
| 30 | MAY 2309432 |
| 31 | Power Supply, Ingredient Care Center |
| 32 | MAY 2194319 |
| 33 | MAY 2309000 |
| 34 | MAY 2310251 |
| 35 | SCREW |
| 36 | Switch, Power Disconnect |
| 37 | Screw, Ground |
| 38 | MAY 549193 |
| 39 | MAY 2310294 |
