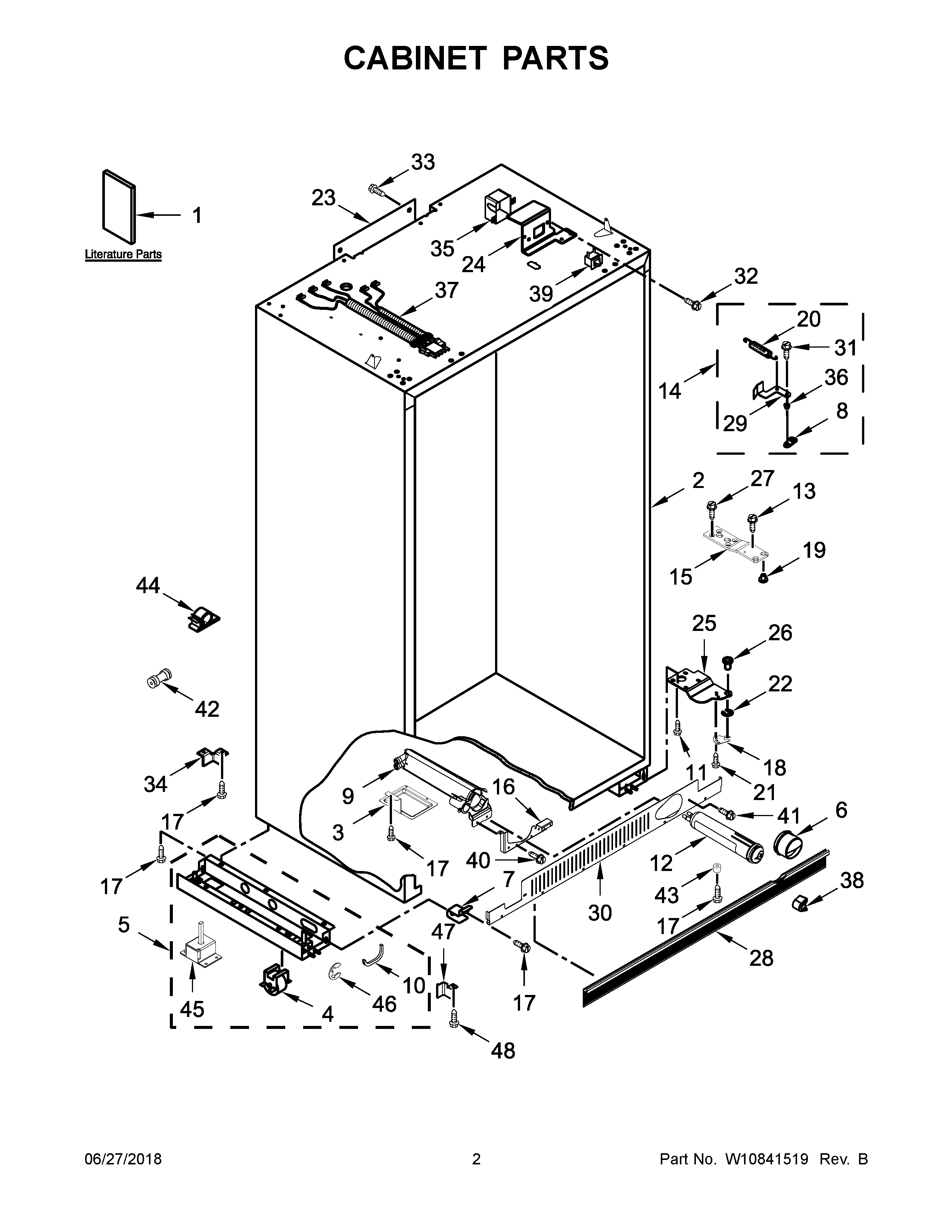

JS42SSDUDE00 02 – CABINET PARTS

Products

PositionProduct
1USE AND CARE GUIDE
1DTECH SHEET (FRENCH)
1CTECH SHEET (ENGLISH)
1EMAY W10762997
1BINSTALLATION INSTRUCTIONS
1AENERGY GUIDE
2LINER (NOT A SERVICEABLE PART)
3Tray, Drip Filter
4MAY W10138054
5SUPPORT, LEVELER ASSEMBLY (LEFT HAND)
5ASUPPORT, LEVELER ASSEMBLY (RIGHT HAND)
6CAP, WATER FILTER (BLACK)
7Mounting Stud, Grille
8MAY 2320509
9MAY W10121140
10GROMMET, CROSSOVERTUBE
11MAY 3400525
12Filter, Water
13MAY 8281164
14ASSEMBLY, LIGHT SWITCH CAM (LEFT HAND)
14AASSEMBLY, LIGHT SWITCH CAM (RIGHT HAND)
15Hinge (Top)
16MAY W10674648
17MAY W10001250
18Lock, Adjustable Bushing
19MAY W10484913
20Spring, Door Closure (Right Side)
21Screw, Door Stop
22Retaining Ring, Adjustable Bushing
23Cover, Rear
24BRACKET, SWITCH (LEFT HAND)
24ABRACKET, SWITCH (RIGHT HAND)
25AHINGE, BOTTOM (REFRIGERATOR)
25HINGE, BOTTOM (FREEZER)
26MAY 2302876
27Screw 1/4-20 x 5/8
28Skirt-Grille, Bottom
29EXTENSION ARM, DOOR CLOSER (LEFT HAND)
29AEXTENSION ARM, DOOR CLOSER (RIGHT HAND)
30Grille Bottom, Front
31MAY W10485630
32Screw
33SCREW (BLACK)
34Bracket, Support Base (Rear) (2)
35Cover, Switch (2)
36MAY 2316859
37ASSEMBLY, SWITCH WIRE
38Button, Filter (Black)
39MAY 1118894
39ASwitch, Rocker Arm
40Screw
41MAY W10005050
42CONNECTOR, UNION
43Spacer, Door-Skin (Top)
44CLIP
45LEVELER ASSY
46Ring, Retainer
47Bracket, Support Base (Front) (Left)
47ABracket, Support Base (Front) (Right)
48SCREW
