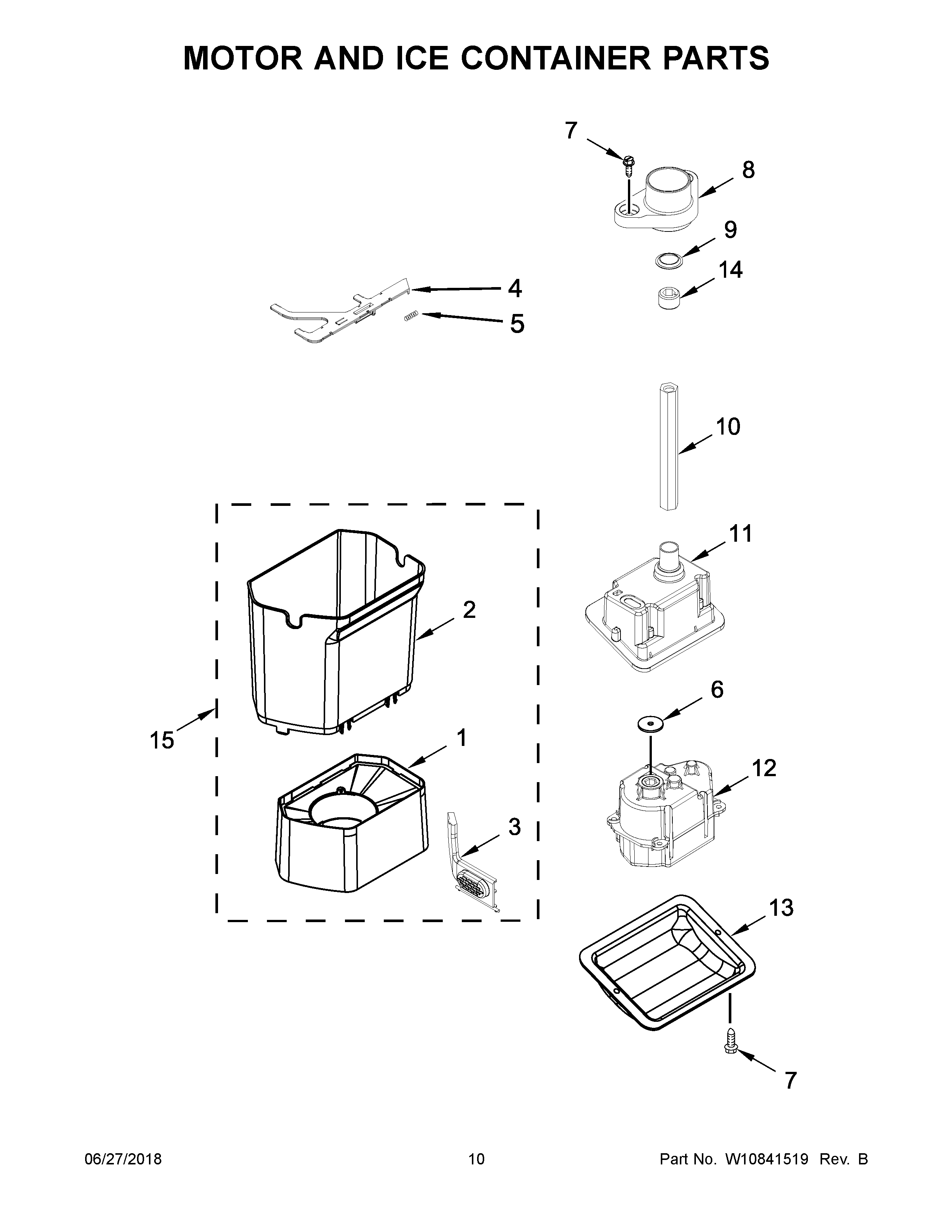

JS42SSDUDE00 06 – MOTOR AND ICE CONTAINER PARTS

Products

Position	Product
1	BIN, CRUSHER
2	BIN, ICE
3	BUTTON, BIN
4	LATCH, BIN
5	MAY 2198608
6	WASHER, RUBBER
7	Screw
8	CLIP, SHAFT
9	MAY 2198628
10	Drive Shaft
11	ENCLOSURE, MOTOR
12	MOTOR, DISPENSER
13	COVER, MOTOR
14	SLEEVE, COUPLING
15	ASSEMBLY, ICE CONTAINER
