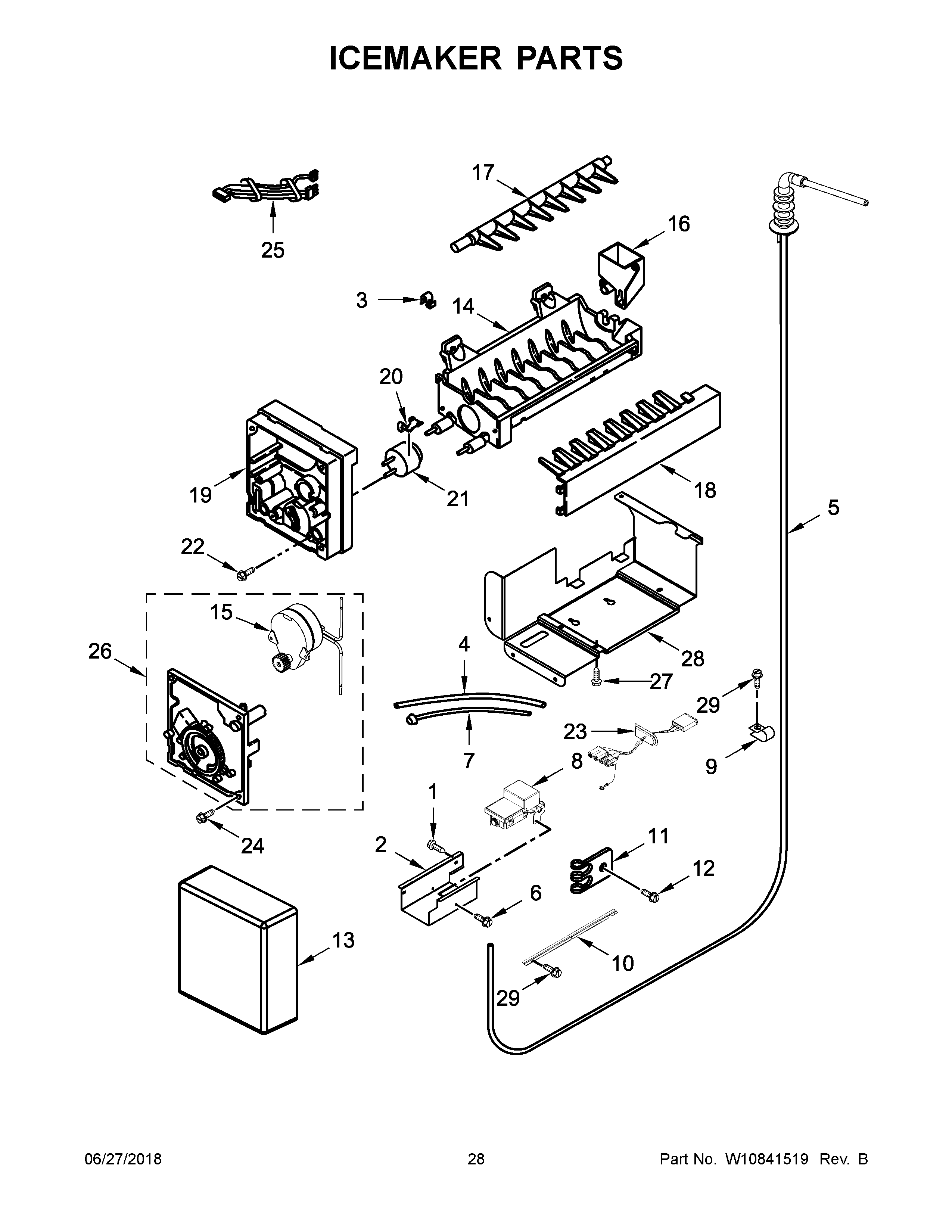

JS42SSDUDE00 15 – ICEMAKER PARTS

Products

PositionProduct
1Screw
2Shield, Valve
3Clip
4MAY W10296807
5MAY W10357286
6Screw, Ground
7MAY W10683737
8VALVE, INLET
9MAY 2221070
10MAY 2320559
11Clip, Tube
12MAY W10141645
13COVER, ICEMAKER
14ASSEMBLY, MOLD AND HEATER (ALSO ORDER 542638)
15LINER (NOT A SERVICEABLE PART)
16MAY W11130406
17MAY 627843
18STRIPPER, ICE
19SUPPORT, HOUSING
20MAY 2315522
21MAY W10290336
22Screw (2)
23WIRE ASSEMBLY, SMART VALVE
24MAY 489276
25MAY W10508659
26MODULE ASSEMBLY (INCLUDES ITEM 24)
27SCREW (BLACK)
28BRACKET, ICEMAKER MOUNTING
29SCREW
100COMPLETE ICEMAKER ASSEMBLY
