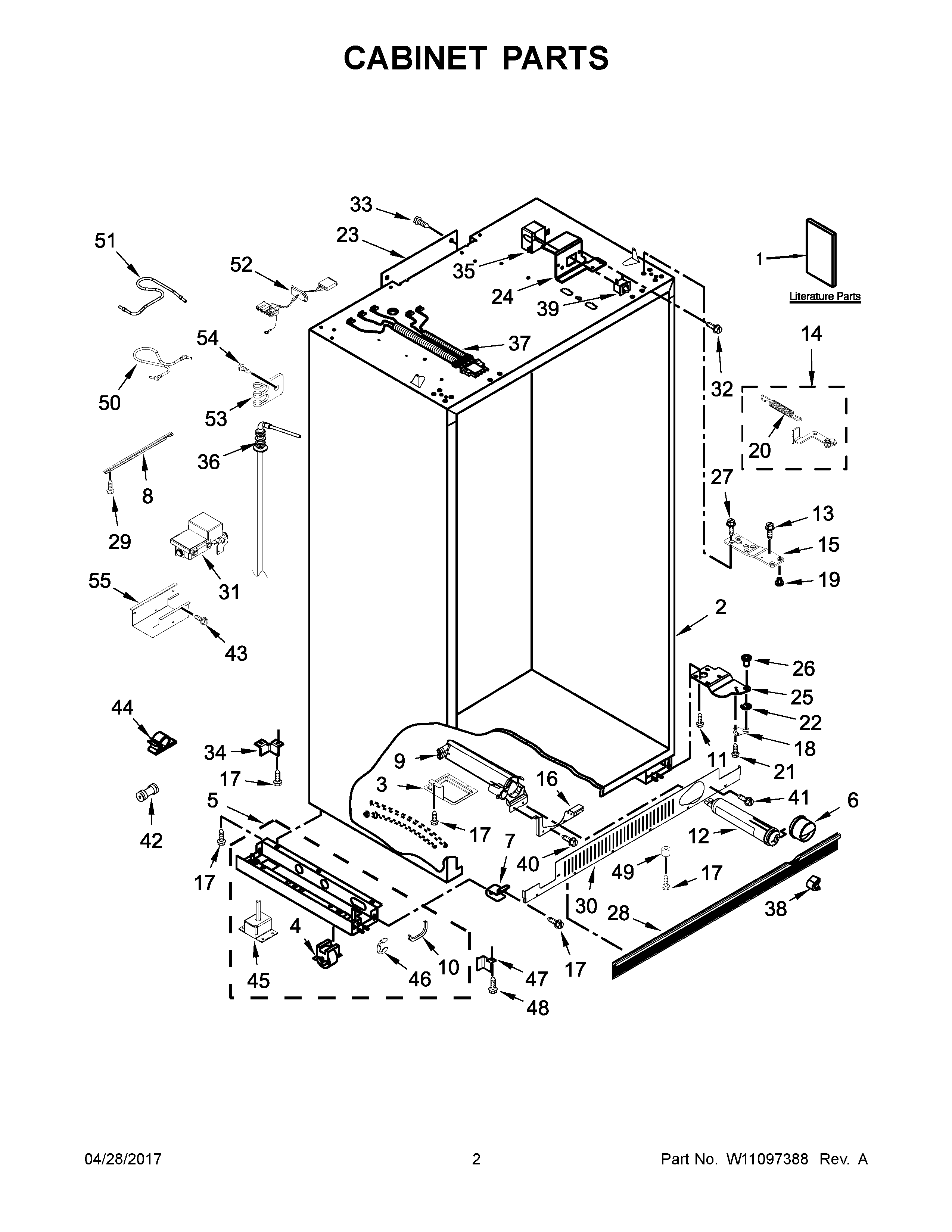

JS42SSDUDE01 02 – CABINET PARTS

Products

Position	Product
1B	INSTALLATION INSTRUCTIONS
1E	MAY W10762997
1D	MAY W10910734
1C	MAY W10910733
1	USE AND CARE GUIDE
1A	ENERGY GUIDE
2	LINER (NOT A SERVICEABLE PART)
3	Tray, Drip Filter
4	MAY W10138054
5A	SUPPORT, LEVELER ASSEMBLY (RIGHT HAND)
5	SUPPORT, LEVELER ASSEMBLY (LEFT HAND)
6	CAP, WATER FILTER (BLACK)
7	Mounting Stud, Grille
8	MAY 2320559
9	MAY W10121140
10	GROMMET, CROSSOVERTUBE
11	MAY 3400525
12	Filter, Water
13	MAY 8281164
14	ASSEMBLY, LIGHT SWITCH CAM (LEFT HAND)
14A	ASSEMBLY, LIGHT SWITCH CAM (RIGHT HAND)
15	Hinge (Top)
16	MAY W10674648
17	MAY W10001250
18	Lock, Adjustable Bushing
19	MAY W10484913
20	Spring, Door Closure (Right Side)
21	Screw, Door Stop
22	Retaining Ring, Adjustable Bushing
23	Cover, Rear
24A	BRACKET, SWITCH (RIGHT HAND)
24	BRACKET, SWITCH (LEFT HAND)
25	HINGE, BOTTOM (FREEZER)
25A	HINGE, BOTTOM (REFRIGERATOR)
26	MAY 2302876
27	Screw 1/4-20 x 5/8
28	Skirt-Grille, Bottom
29	SCREW
30	Grille Bottom, Front
31	VALVE, INLET
32	Screw
33	SCREW (BLACK)
34	Bracket, Support Base (Rear) (2)
35	Cover, Switch (2)
36	MAY W10357286
37	ASSEMBLY, SWITCH WIRE
38	Button, Filter (Black)
39A	Switch, Rocker Arm
39	MAY 1118894
40	Screw
41	MAY W10005050
42	CONNECTOR, UNION
43	Screw, Ground
44	CLIP
45	LEVELER ASSY
46	Ring, Retainer
47A	Bracket, Support Base (Front) (Right)
47	Bracket, Support Base (Front) (Left)
48	SCREW
49	Spacer, Door-Skin (Top)
50	MAY W10683737
51	MAY W10296807
52	WIRE ASSEMBLY, SMART VALVE
53	Clip, Tube
54	MAY W10141645
55	Shield, Valve
